Specifications
Place of Origin :
Jiangsu Wuxi China (mainland)
Brand Name :
Haijun
Model Number :
R6M 1strand
MOQ :
1 Set
Packaging Details :
Container
Delivery Time :
2 month
Payment Terms :
T/T , L/C
Supply Ability :
30 strands CCM per year
Certification :
ISO 9001
Price :
Negotiable
Condition :
New
Power(W) :
22kw-1000kw
Packing :
wooden case;container
Dimension :
(L*W*H): 1500*1000*1800
Voltage :
380-440v
Weight :
3-10tons
Delivery date :
Pay first
Description

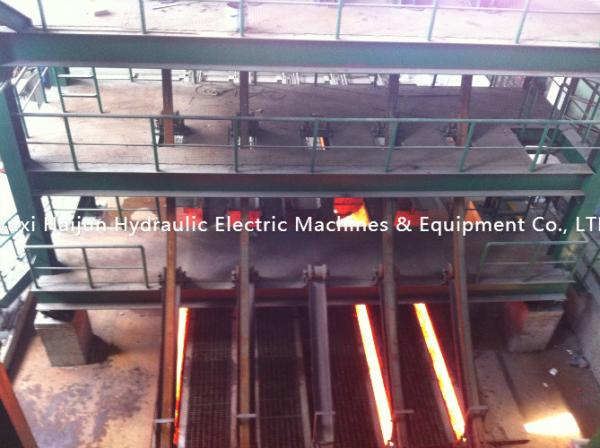

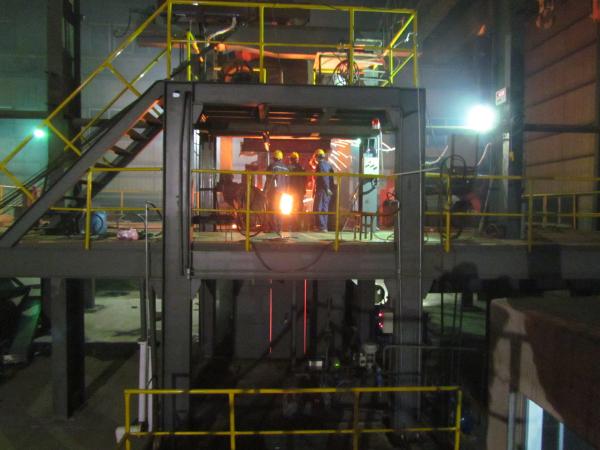

R6M 1S Continuous Casting Machine , CCM Machine Ladle Turret

Quick Detail:

radius: R6M

Strand number :1 strands

Semi-portal, cross sliding function

with ISO certification

Flame cutting machine

We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.

Steel billet casting machine radius

6m

Strand quantity

1 strand

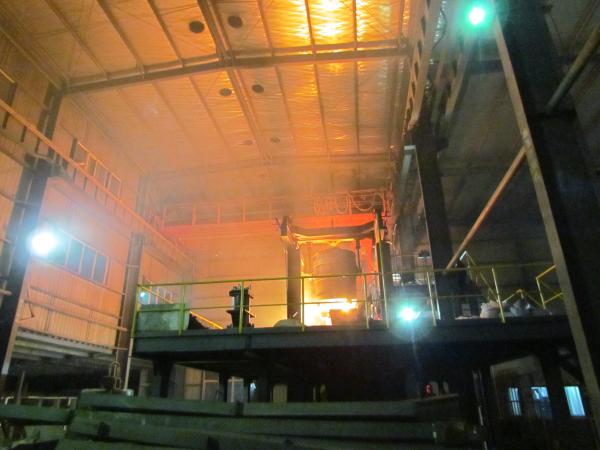

Ladle support type

Ladle car or ladle turret

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Flame cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed

2. Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity

10T

Tap-to-tap cycle

60min

Furnace quantity

2set

Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

100,000t/year

3. Casting speed, productivity and strand quantity

R6m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)

100×100

125×125

150×150

Casting speed(m/min)

3.0

2.7

2.5

NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

24hour

(tons)

Annual output(330days)

(tons)

1

100×100

3.0m/min

12.01

288.

95123

2

125×125

2.7m/min

16.89

405

133,767

3

150×150

2.5m/min

21.72

508

167,640

The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8～2.5

Please refer to the computational table

0.25

Low alloy steel

1.3～2.0

Please refer to the computational table

0.15～0.2

4. CCM equipment parts list

№

Equipment name

Weight

Model and specification

Unit

Quantity

1

Ladle car

5T

Set

2

2

Tundish car

2.5×2=5T

Set

2

3

Tundish

1.4×2=2.8T

piece

2

4

Mould

0.5×2=1T

150×150

Set

1

5

Foot roll of mould

0.01×2=0.02T

Set

1

6

Mould cover

0.1×2=0.2T

Set

1

7

Oscillator device

2×2=4T

Set

1

8

Secondary cooling spray tube

0.5×2=1T

Set

1

9

Secondary cooling guiding section rod

0.7×2=1.4T

Set

1

10

Secondary cooling vapor exhausting system

1.5T

Set

1

11

Withdrawal and straightening machine

5×2=10T

Set

1

12

Casting blank vibration prevention system

0.3×2=0.6T

Set

1

13

Dummy bar

0.9×2=1.8T

150×150

Set

1

14

Dummy bar storage device

0.7×2=1.4T

Set

1

15

Shears approach roller

2×2=4T

Set

1

16

Flame cutting machine

3T

Set

1

17

Automatic cut-to-length device

0.5T

Set

1

18

Travelling roller

2×2=4T

Set

1

19

Knockout roller

3.5T

Set

2

20

Steel transverse delivering machine

3.5T

Set

1

21

Hydraulic station system

2T

Set

1

22

Secondary cooling water breaker

Set

1

23

Cooling automation water distribution plant

1T

Set

1

24.1

Control panel

Set

1

24.2

Field instrument

Set

1

24.3

Computer system

Set

1

25

Steel platform

48T

1
