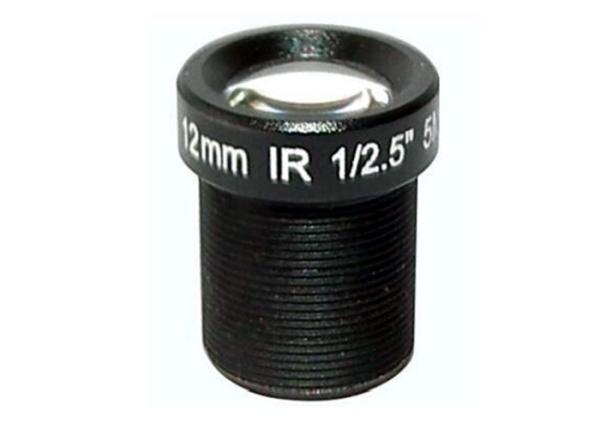

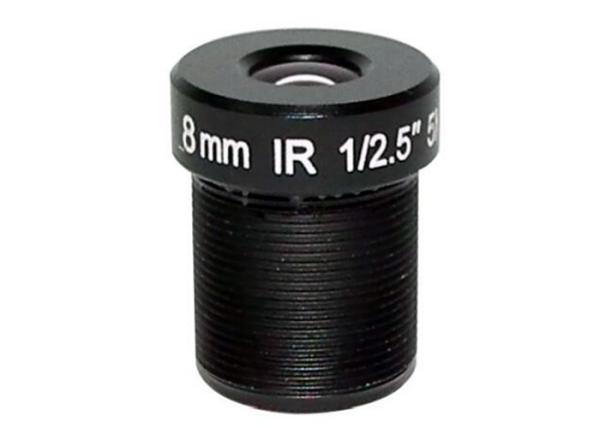

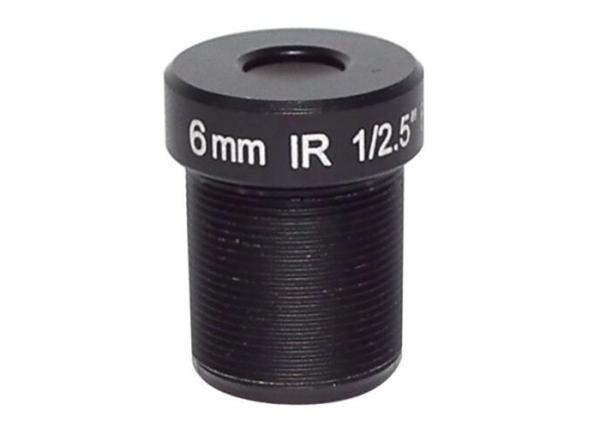

1/2.5 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 S-mount fixed focal lens, prime lens for security cameras
1/2.5 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 S-mount fixed focal lens, prime lens for security cameras
1/2.5 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 S-mount fixed focal lens, prime lens for security cameras
1/2.5 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 S-mount fixed focal lens, prime lens for security cameras
1/2.5 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 S-mount fixed focal lens, prime lens for security cameras
1/2.5 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 S-mount fixed focal lens, prime lens for security cameras
1/2.5 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 S-mount fixed focal lens, prime lens for security cameras
1/2.5 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 S-mount fixed focal lens, prime lens for security cameras
Specifications
Model Number :
1250420MP 1250620MP 1250820MP 1251220MP
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
Optical Lens :
M12/CS mount Board Lens
TV Lens :
Fixed Focal M12 lens
Focal :
4mm 6mm 8mm 12mm
Resolution :
3MP or 5MP option
Description

1/2.5" 4mm/6mm/8mm/12mm F2.0 5Megapixel M12x0.5 mount fixed focal IR lens, M12 mount wide angle cctv lens

Model 1250420MP
IMAGE FORMAT 1/2.5"

MAX IMAGE CIRCLE Φ6.6mm
FOCAL LENGTH 4mm
F.O.V(D*H*V) 1/2.5”: 112°×90°×67°; 1/3”: 91°×73°×55°
RESOLUTION 5MP
APERTURE F2.0
OPTICAL DISTORTION -42.8%
MOUNT M12X0.5
IRIS Fixed
M.O.D. 0.3m

B.F.L. 5.5mm
M.B.F. 5.3mm
T.T.L. 23.8mm
DIMENSION Φ14*17.6mm
IR COLLECTION YES

Model 1250620MP
IMAGE FORMAT 1/2.5"

MAX IMAGE CIRCLE Φ6.52mm
FOCAL LENGTH 6mm
F.O.V(D*H*V) 1/2.5”: 67°×53.6°×40.2°; 1/3”: 60.5°×48.4°×36.3°; 1/4”: 44°×35.2°×26.4°
RESOLUTION 5MP
APERTURE F2.0
OPTICAL DISTORTION -19.6%
MOUNT M12X0.5
IRIS Fixed
M.O.D. 0.3m

B.F.L. 7.3mm
M.B.F. 6.7mm
T.T.L. 23.5mm
DIMENSION Φ14*16.8mm
IR COLLECTION YES

Model 1250820MP
IMAGE FORMAT 1/2.5"

MAX IMAGE CIRCLE Φ6.69mm
FOCAL LENGTH 8mm
F.O.V(D*H*V) 1/2.5”: 50°×40°×30°; 1/3”: 45°×36°×27°; 1/4”: 33.4°×26.7°×20°
RESOLUTION 5MP
APERTURE F2.0
OPTICAL DISTORTION -7.7%
MOUNT M12X0.5
IRIS Fixed
M.O.D. 0.3m

B.F.L. 8.1mm
M.B.F. 6.8mm
T.T.L. 23.4mm
DIMENSION Φ14*16.4mm
IR COLLECTION YES

Model 1251220MP
IMAGE FORMAT 1/2.5"

MAX IMAGE CIRCLE Φ7.32mm
FOCAL LENGTH 12mm
F.O.V(D*H*V) 1/2.5”: 35°×28°×21°; 1/3”: 28.5°×22.8°×17.1°; 1/4”: 21°×16.8°×12.6°
RESOLUTION 5MP
APERTURE F2.0
OPTICAL DISTORTION -4.44%
MOUNT M12X0.5
IRIS Fixed
M.O.D. 0.3m

B.F.L. 7.6mm
M.B.F. 6.5mm
T.T.L. 23.1mm
DIMENSION Φ14*16.7mm
IR COLLECTION YES

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS/M12 mount option
