1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
1/9 1/10 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
Specifications
Model Number :
110108
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
Camera Lens :
Medical Lens
Optical Lens :
Endoscope Lens
Material :
2P+IR
Mount :
M2.6xP0.25
Description

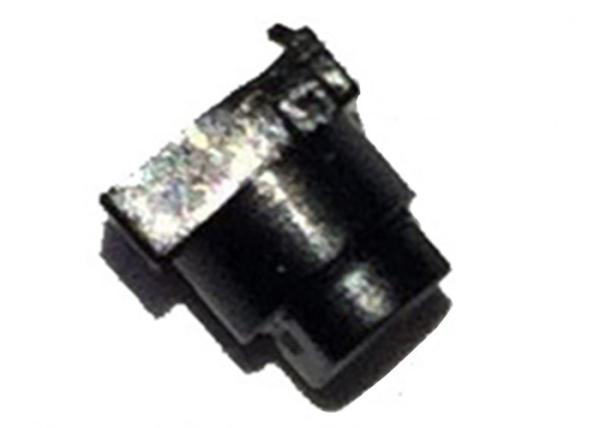

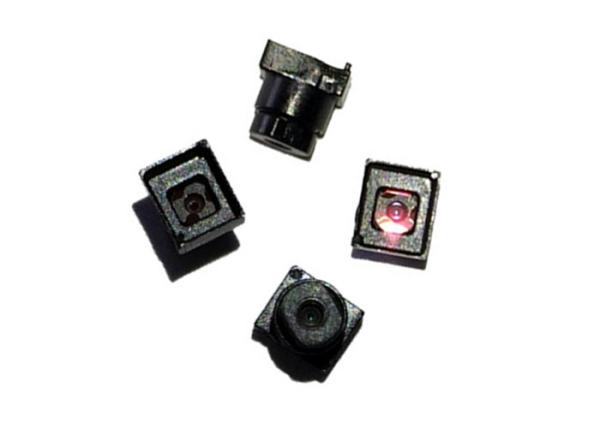

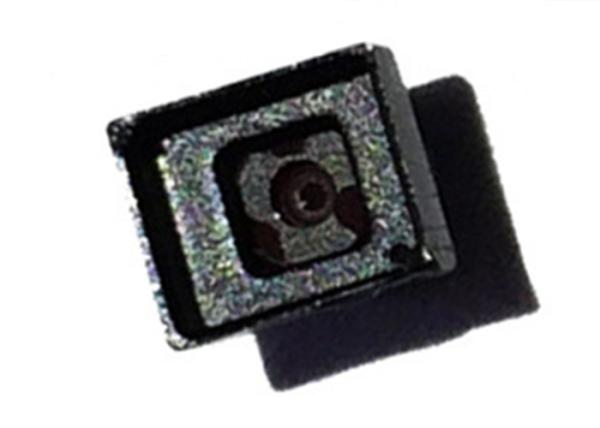

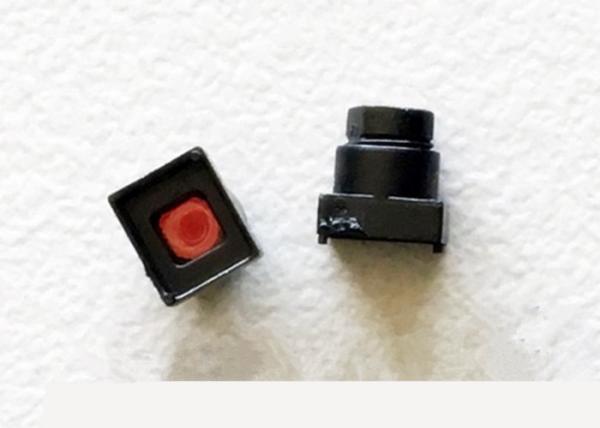

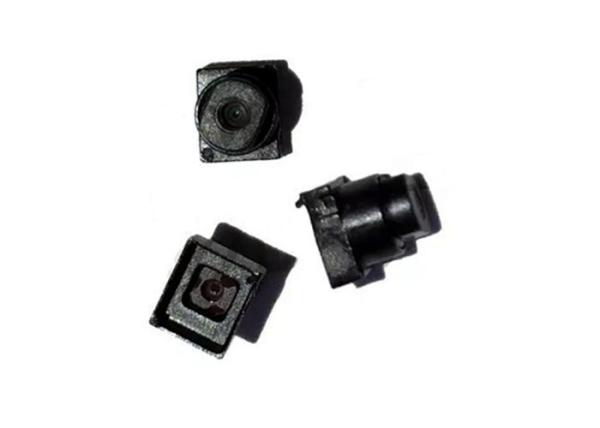

1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro medical lens endoscope lens for OV6930/GC0339, medical video equipment lens for GC0339 CSP, OV6930 lens


This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.

Model 110108
IMAGE FORMAT 1/9" & 1/10"
SENSOR GC0339 CSP / OV6930
SENSOR SIZE 1.6mm(H)*1.2mm(V)*2.0mm(D)
FOCAL LENGTH 1.08mm (±5%)
MAX IMAGE CIRCLE Φ3.1mm
FOCUSING RANGE 3-25mm
F.O.V(D*H*V) GC0339: 100°*74°*54°; OV6930: 78.5°*56°*55°
APERTURE F4.0 (±5%)
OPTICAL DISTORTION <-39%
MOUNT M2.6XP0.25
B.F.L. 1.385mm
T.T.L. 3.34±0.2mm
LENS CONSTRUCTURE 2P+IR filter

Tips: we also have medical lenses for 1/13" and 1/18" sensors. For more info, please feel free to contact us by email cctv.lens@ccom-tech; sales01@megapixellenses.com.
