1/1.8 4.0mm 16Megapixel F2.8 M12 135Degree Wide Angle Board Lens for IMX178 IMX117 IMX274
1/1.8 4.0mm 16Megapixel F2.8 M12 135Degree Wide Angle Board Lens for IMX178 IMX117 IMX274
1/1.8 4.0mm 16Megapixel F2.8 M12 135Degree Wide Angle Board Lens for IMX178 IMX117 IMX274
1/1.8 4.0mm 16Megapixel F2.8 M12 135Degree Wide Angle Board Lens for IMX178 IMX117 IMX274
1/1.8 4.0mm 16Megapixel F2.8 M12 135Degree Wide Angle Board Lens for IMX178 IMX117 IMX274
1/1.8 4.0mm 16Megapixel F2.8 M12 135Degree Wide Angle Board Lens for IMX178 IMX117 IMX274
Specifications
Model Number :
1180428MPF-A (Φ17)
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
Camera Lens :
CCTV Video Lens
Optical Lens :
135degree S mount board Lens
TV Lens :
board lens for 1/1.8" 1/2.3" 1/2.5" sensors
Material :
6G+1IR-Cut
Description

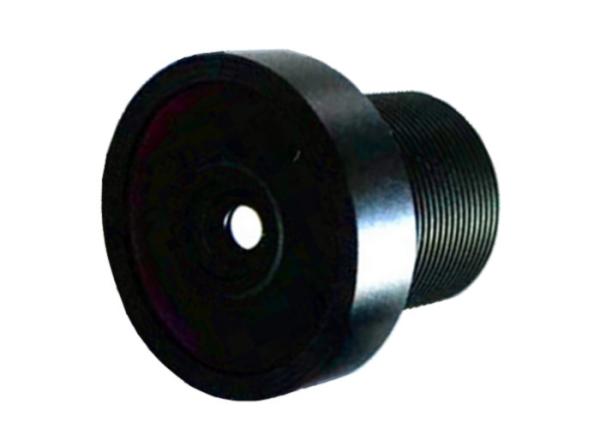

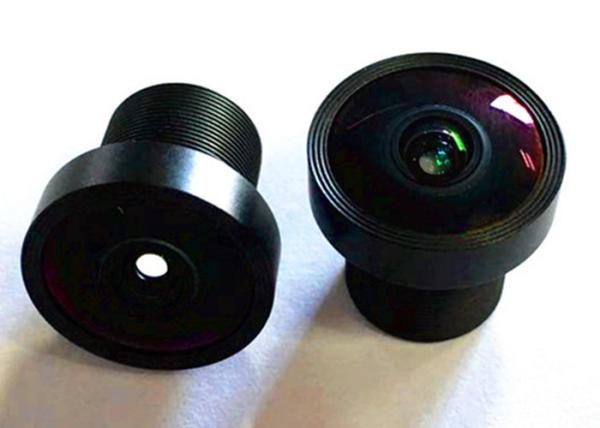

1/1.8" 4.0mm F2.8 16Megapixel S-mount M12 135Degree Wide Angle Board Lens for IMX178/IMX117/IMX274 sensors, 4mm board lens for Sport camera/Car Recorder/Drones

Model: 1180428MPF-A (Φ17)
SENSOR SIZE 1/1.8"
MAX IMAGE CIRCLE Φ10.3mm
FOCAL LENGTH(EFL) 4.0mm
F.O.V. (D*H*V) IMX178 135.2°*110.4°*72.6°, IMX117 118°*92.6°*69°, IMX274 107°*92°*52°
RESOLUTION 16MP
APERTURE F2.8 (F2.0/F1.8 optional)
DISTORTION IMX178 H -14.8%, V -35%; IMX117 H -13.4%, V -24.5%; IMX274 H -7.5%, V -24.1%
MOUNT M12X0.5
B.F.L.(O) 7.47mm
B.F.L.(M) 5.93mm
T.T.L. 23mm

R.I. IMX178 >65%, IMX117 >75%, IMX274 >74%

C.R.A. IMX178 <14.86°, IMX117 <13.4°, IMX274 <12.38°
LENS CONSTRUCTURE 6G+IR

DIMENSION Φ17X17.07mm (Φ14 optional)

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
