1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
1/4 1.7mm M12/M8 mount 170degree wide-angle lens for vehicle, automotive camera lens
Specifications
Model Number :
14017-M12 14017-M8
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
Optical Lens :
Wide-angle lens for automotive cameras
Camera Lens :
Wide-angle 170D fisheye lens
Mount options :
M12, M8
Protection :
Waterproof optional
Description

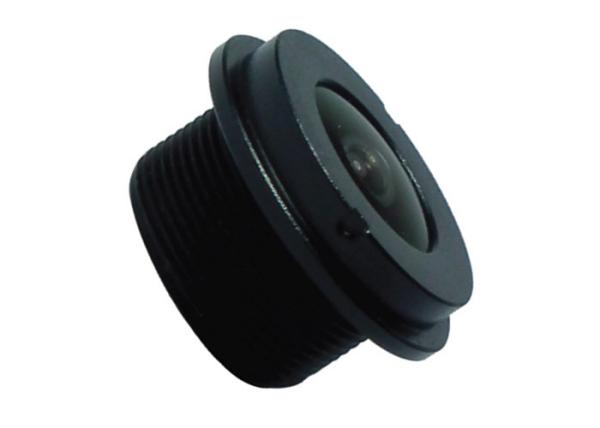

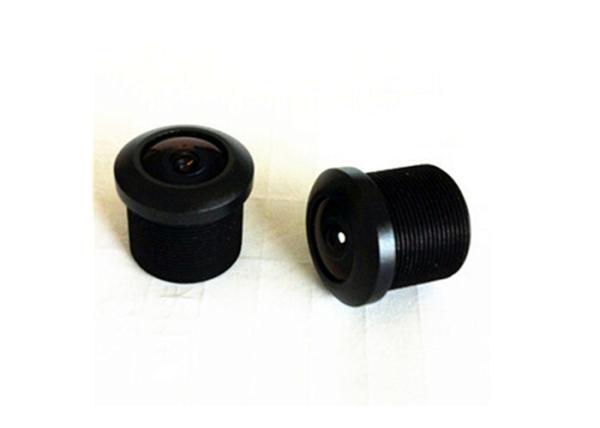

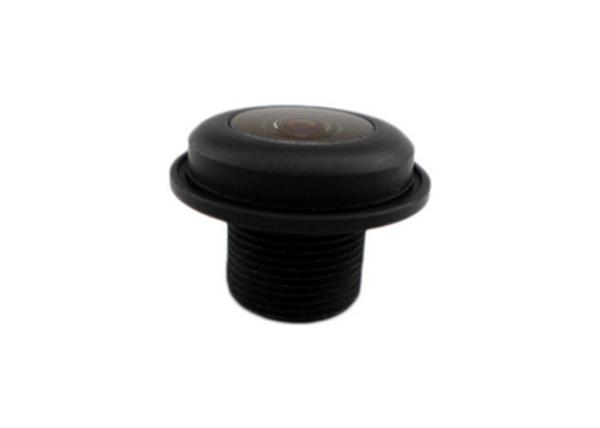

1/4" 1.7mm M12x0.5 or M8x0.5 Mount 170degree Wide-Angle Automotive Camera Lens, 1.7mm Mini Fisheye Lens for 180º 360º panoramic cameras


MODEL 14017-M12(A)
IMAGE FORMAT 1/4"

FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0

MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25 (in air)

F.B.L.(mm) 2.90 (in air)

T.T.L.(mm) 15.87

DIMENSION(mm) Φ14x13

MODEL 14017-M12(B)
IMAGE FORMAT 1/4"

FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0

MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25

F.B.L.(mm) 1.90 (in air)

T.T.L.(mm) 14.87

DIMENSION(mm) Φ16x13

MODEL 14017-M8
IMAGE FORMAT 1/4"

FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0

MOUNT(mm) M8x0.5 (M8x0.35 optional)
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25

F.B.L.(mm) 1.9 (in air)

T.T.L.(mm) 13.5

DIMENSION(mm) Φ14x11.7

Tips:
- M12/M8 mount option
- 650nm/850nm/940nm IR filter optional

- Waterproof is optional.
