1/4 0.95mm M12x0.5 mount 165degree Wide Angle Lens, 1/4 1/5 0.95mm M12 video lens
1/4 0.95mm M12x0.5 mount 165degree Wide Angle Lens, 1/4 1/5 0.95mm M12 video lens
Specifications
Model Number :
14095-M12(B1) 14095F-M12(B1)
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
Camera Lens :
CCTV Video Lens
Optical Lens :
M12 mount wide-angle Lens
TV Lens :
1/4" 1/5" sensor lens
Material :
2P2G+IR
Description

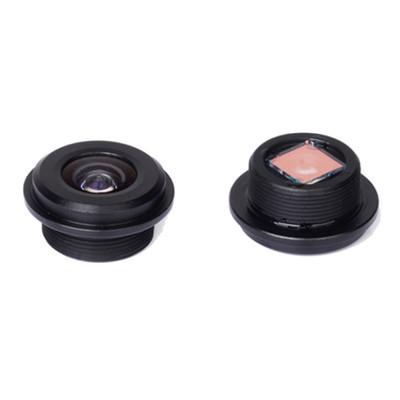

1/4" 0.95mm F2.0 M12 Mount VGA 165degree Wide Angle Lens for vehicle rear-view mirror, 0.95mm M12 lens for OV7740 OV7725

Model 14095-M12(B1)
IMAGE FORMAT 1/4"
MAX IMAGE CIRCLE Ø 5.12mm
FOCAL LENGTH(EFL) 0.95mm
F.O.V (D*H*V) 165°*125°*105°
DISTORTION <-8.5%
APERTURE F2.0
RESOLUTION VGA
MOUNT M12XP0.5
IRIS Fixed
B.F.L. 2.12mm
F.B.L. 1.52mm
T.T.L. 9.3mm
DIMENSION Φ16×7.78mm
LENS COMPOMENT 2P2G+IR
CUT FREQUENCY AT 50% 650±10nm
R.I. >67%

Tips:

- ***F: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- Waterproof version is optional.

- M12/M8/M7 mount option
