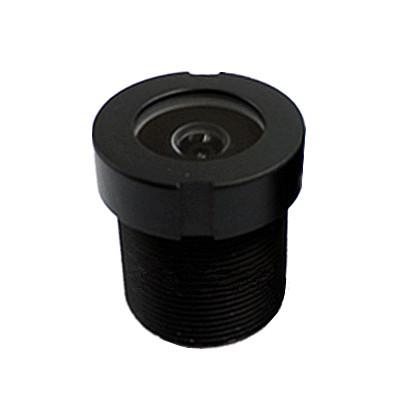

1/4 2.5mm 5Megapixel 1080P M12 Mount 130degree Wide-Angle Lens, 2.5mm security camera lens
1/4 2.5mm 5Megapixel 1080P M12 Mount 130degree Wide-Angle Lens, 2.5mm security camera lens
1/4 2.5mm 5Megapixel 1080P M12 Mount 130degree Wide-Angle Lens, 2.5mm security camera lens
1/4 2.5mm 5Megapixel 1080P M12 Mount 130degree Wide-Angle Lens, 2.5mm security camera lens
1/4 2.5mm 5Megapixel 1080P M12 Mount 130degree Wide-Angle Lens, 2.5mm security camera lens
1/4 2.5mm 5Megapixel 1080P M12 Mount 130degree Wide-Angle Lens, 2.5mm security camera lens
Specifications
Model Number :
14025MPF-A 14025MPF-B
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
Optical Lens :
M12 130D wide-angle lens
Camera Lens :
2.5mm Fixed focal security camera lens
Constructure :
Metal + glasses
Suitable sensor :
1/4" NT99141 OV9712
Description

1/4" 2.5mm 5Megapixel M12x0.5 Mount wide angle lens for vehicle rear-view mirror/sport DV/vehicle recorder cameras, 2.5mm M12 lens for security cameras

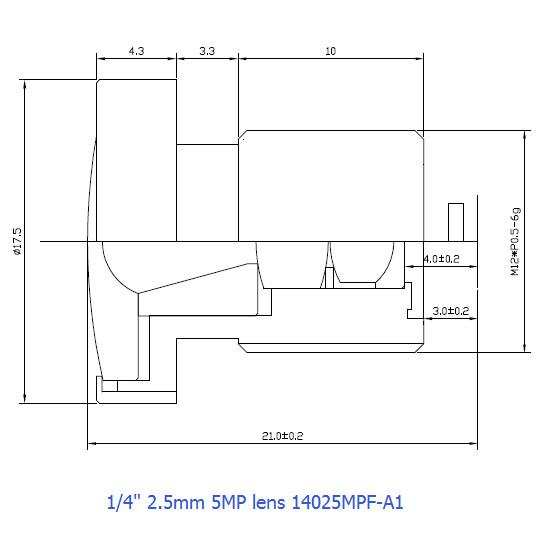

Model 14025MPF-A
SENSOR FORMAT 1/4”
FOCAL LENGTH 2.5mm ±5%
RESOLUTION 5MP
F.O.V. (D*H*V) 130°*100°*80°
APERTURE F2.0 ±5%
OPTICAL DISTORTION <20%
IRIS Fixed
M.O.D. 0.1m
MOUNT M12XP0.5 - 6g
B.F.L. 4.0mm (in air) ±5%
F.B.L. 3.05mm ±5%
T.T.L. (21.0±0.2)mm
LENS CONSTRUCTURE 4G+IR

Model 14025MPF-B
SENSOR FORMAT 1/4”
FOCAL LENGTH 2.5mm ±5%
RESOLUTION 5MP
F.O.V. (D*H*V) 120°*90°*75°
APERTURE F2.4 ±5%
OPTICAL DISTORTION <20%
IRIS Fixed
M.O.D. 0.2m
MOUNT M12XP0.5 - 6g
B.F.L. 4.3mm (in air) ±5%
F.B.L. 2.8mm ±5%
T.T.L. (16.8±0.2)mm
LENS CONSTRUCTURE 4G+IR

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
