1/2.5 1.55mm 8Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
1/2.5 1.55mm 8Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
1/2.5 1.55mm 8Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
1/2.5 1.55mm 8Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
1/2.5 1.55mm 8Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
1/2.5 1.55mm 8Megapixel M12 mount wide-angle 185degree fisheye lens for panoramic cameras
Specifications
Model Number :
1250155MP-A 1250155MP-B
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Camera Lens :
CCTV Video Lens
Optical Lens :
M12 mount wide angle Lens
TV Lens :
fisheye lens
Material :
6G+1IR-Cut
Brand Name :
CCOM LENS
Description

1/2.5" 1.55mm 8Megapixel M12*0.5 mount wide angle 185degree fisheye lens for panoramic cameras

MODEL 1250155MP-A
IMAGE FORMAT 1/2.5" CCD/CMOS
FOCAL LENGTH(mm) 1.55 ±5%
F.O.V. 185°(D)x185°(H)x185°(V)
RESOLUTION 8MP
APERTURE 2.0 ±5%
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.1
B.F.L.(mm) 4.5 ±5% (in air)
F.B.L.(mm) 4.4 ±5%

CONSTRUCTION 6G
DIMENSION(mm) Φ18x16.3

MODEL 1250155MP-B
IMAGE FORMAT 1/2.5" CCD/CMOS
FOCAL LENGTH(mm) 1.55 ±5%
F.O.V. 185°(D)x185°(H)x185°(V)
RESOLUTION 8MP
APERTURE 2.0 ±5%
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.1
B.F.L.(mm) 4.5 ±5% (in air)
F.B.L.(mm) 4.4 ±5%

CONSTRUCTION 6G
DIMENSION(mm) Φ20x16.3

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

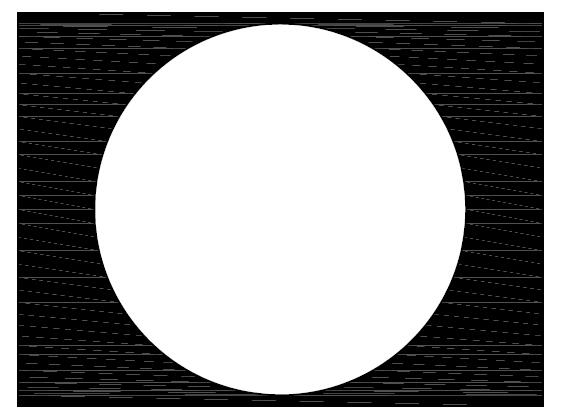

Effect on 1/2.5" sensor:

1/2.5
