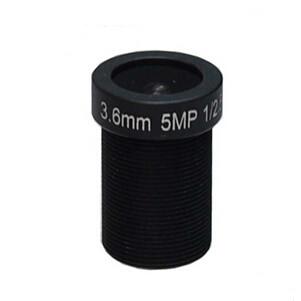

Economic 1/2.5 3.6mm/6mm/8mm/12mm/16mm F2.0 5MP M12 Mount IR MTV Lens for security cameras
Economic 1/2.5 3.6mm/6mm/8mm/12mm/16mm F2.0 5MP M12 Mount IR MTV Lens for security cameras
Specifications
Model Number :
125036MP 125060MP 125080MP 125120MP 125160MP
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
Optical Lens :
M12 IR MTV lens
Camera Lens :
Fixed focal security camera lens
Constructure :
Metal + glasses
Sensors :
1/2.5", 1/3" etc.
Description

ECONOMIC 1/2.5" 3.6mm/6mm/8mm/12mm/16mm F2.0 5Megapixel S mount M12x0.5 Mount Fixed Focal Lens, IR MTV lens for security cameras

Model 125036MP
SENSOR 1/2.5" CCD/CMOS
FOCAL LENGTH 3.6mm
RESOLUTION 5MP
F.O.V.(H) 130°
APERTURE F2.0
IRIS Fixed
MOUNT M12XP0.5

M.O.D. 0.2m
B.F.L. 7.67mm
T.T.L. 25.50mm
LENS CONSTRUCTURE 6G
DIMENSION Φ14*18.4mm

Model 125060MP
SENSOR 1/2.5" CCD/CMOS
FOCAL LENGTH 6mm
RESOLUTION 5MP
F.O.V.(H) 70°
APERTURE F2.0
IRIS Fixed
MOUNT M12XP0.5
M.O.D. 0.2m
B.F.L. 8.44mm
T.T.L. 25.00mm
LENS CONSTRUCTURE 6G
DIMENSION Φ14*17.4mm

Model 125080MP
SENSOR 1/2.5" CCD/CMOS
FOCAL LENGTH 8mm
RESOLUTION 5MP
F.O.V.(H) 52°
APERTURE F2.0
IRIS Fixed
MOUNT M12XP0.5
M.O.D. 0.2m
B.F.L. 8.61mm
T.T.L. 24.16mm
LENS CONSTRUCTURE 6G
DIMENSION Φ14*16.6mm

Model 125120MP
SENSOR 1/2.5" CCD/CMOS
FOCAL LENGTH 12mm
RESOLUTION 5MP
F.O.V.(H) 32°
APERTURE F2.0
IRIS Fixed
MOUNT M12XP0.5
M.O.D. 0.2m
B.F.L. 11.58mm
T.T.L. 25.7mm
LENS CONSTRUCTURE 6G
DIMENSION Φ14*18.8mm

Model 125160MP
SENSOR 1/2.5" CCD/CMOS
FOCAL LENGTH 16mm
RESOLUTION 5MP
F.O.V.(H) 27°
APERTURE F2.0
IRIS Fixed
MOUNT M12XP0.5
M.O.D. 0.2m
B.F.L. 12.38mm
T.T.L. 26.01mm
LENS CONSTRUCTURE 6G
DIMENSION Φ14*18.4mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- CS mount available
