1/4 3.3mm F2.4 2Megapixel M7x0.35 mount non-distortion lens
1/4 3.3mm F2.4 2Megapixel M7x0.35 mount non-distortion lens
1/4 3.3mm F2.4 2Megapixel M7x0.35 mount non-distortion lens
1/4 3.3mm F2.4 2Megapixel M7x0.35 mount non-distortion lens
Specifications
Model Number :
14033MP-M7(B) 14033MPF-M7(B)
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Camera Lens :
Digital Camera Video Lens
Optical Lens :
M7 mount Lens
TV Lens :
non distortion lens
Material :
4P+IR-CUT
Brand Name :
CCOM LENS
Description

1/4" 3.3mm F2.4 2Megapixel 70degree non-distortion M7*0.35 mount lens for digital cameras/computer/electronic video devices

Model: 14033MPF-M7(B)
SENSOR SIZE: 1/4"
EFFECTIIVE IMAGE FORMAT: Φ4.85mm
FOCAL LENGTH(mm): 3.3
F.O.V.: 70°
RESOLUTION: 2MP
DISTORTION: <1%
APERTURE: F2.4
MOUNT(mm): M7xP0.35
IRIS: Fixed
M.O.D.: 20mm
F.B.L.(mm) 0.50
T.T.L.(mm): 4.5
C.R.A. <24.6%
LENS COMPOMEMT: 4P+IR
DIMENSION: Φ7.5x4.0mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M7 mount holder available to offer

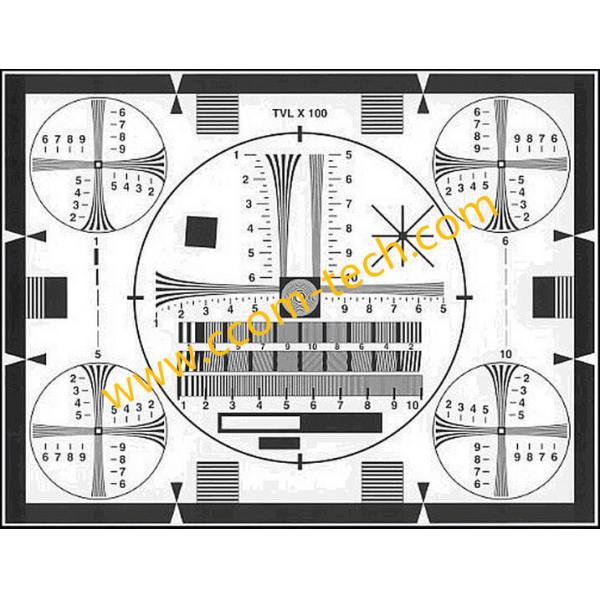

Effect on 2MP sensor:

1/4
