1/4 3.96mm F2.8 5Megapixel M8x0.5 mount non-distortion lens, 3.96mm M8 lens
1/4 3.96mm F2.8 5Megapixel M8x0.5 mount non-distortion lens, 3.96mm M8 lens
1/4 3.96mm F2.8 5Megapixel M8x0.5 mount non-distortion lens, 3.96mm M8 lens
1/4 3.96mm F2.8 5Megapixel M8x0.5 mount non-distortion lens, 3.96mm M8 lens
1/4 3.96mm F2.8 5Megapixel M8x0.5 mount non-distortion lens, 3.96mm M8 lens
1/4 3.96mm F2.8 5Megapixel M8x0.5 mount non-distortion lens, 3.96mm M8 lens
1/4 3.96mm F2.8 5Megapixel M8x0.5 mount non-distortion lens, 3.96mm M8 lens
1/4 3.96mm F2.8 5Megapixel M8x0.5 mount non-distortion lens, 3.96mm M8 lens
Specifications
Model Number :
140396MP-M8 140396MPF-M8
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Camera Lens :
Digital Camera Video Lens
Optical Lens :
M8 mount Lens
TV Lens :
non distortion lens
Material :
5P+IR-CUT
Brand Name :
CCOM LENS
Description

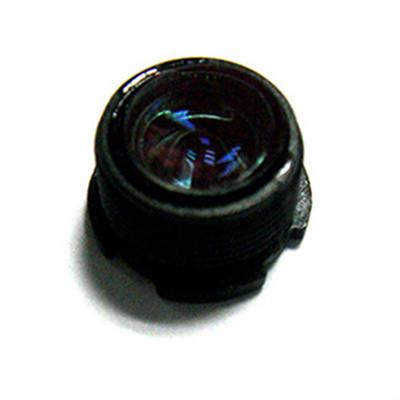

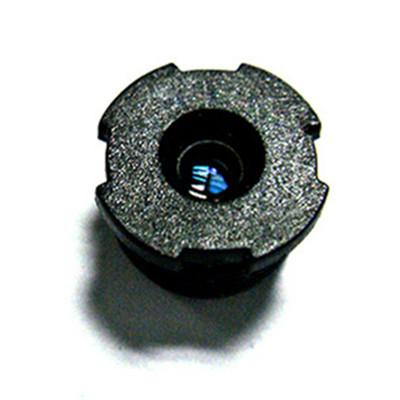

1/4" 3.96mm F2.8 5Megapixel 63degree non-distortion M8*0.5 mount lens for digital cameras/computer/electronic video devices, 3.96mm M8 mount lens

Model: 140396MPF-M8
SENSOR SIZE: 1/4"

EFFECTIVE IMAGE CIRCLE: Φ4.85mm
FOCAL LENGTH(mm): 3.96
F.O.V.(D): 63°
RESOLUTION: 5MP
OPTICAL DISTORTION: <1.0%
APERTURE: F2.8
MOUNT(mm): M8xP0.5
IRIS: Fixed
M.O.D.: 20mm
F.B.L.(mm) 0.48
T.T.L.(mm): 6.00
C.R.A. <24.6°
LENS COMPOMEMT: 5P+IR
DIMENSION: Φ9.0x5.5mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

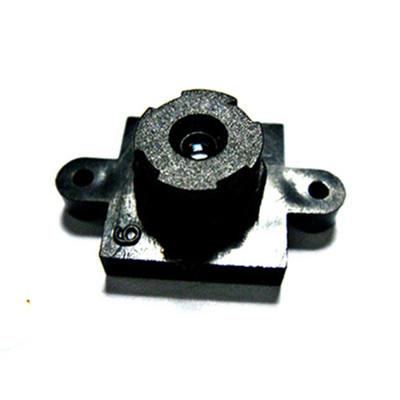

- M8 mount lens holder available
