1/2.3 1.44mm 14Megapixel S mount M12 220degree Fisheye Lens for IMX078 MN34110, Drone UAV 360VR lens
1/2.3 1.44mm 14Megapixel S mount M12 220degree Fisheye Lens for IMX078 MN34110, Drone UAV 360VR lens
1/2.3 1.44mm 14Megapixel S mount M12 220degree Fisheye Lens for IMX078 MN34110, Drone UAV 360VR lens
1/2.3 1.44mm 14Megapixel S mount M12 220degree Fisheye Lens for IMX078 MN34110, Drone UAV 360VR lens
1/2.3 1.44mm 14Megapixel S mount M12 220degree Fisheye Lens for IMX078 MN34110, Drone UAV 360VR lens
1/2.3 1.44mm 14Megapixel S mount M12 220degree Fisheye Lens for IMX078 MN34110, Drone UAV 360VR lens
Specifications
Model Number :
1230144MPF-A(Φ27) 1230144MPF-B(Φ32)
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Optical Lens :
Fisheye lens for 360VR
Camera Lens :
Wide-angle 220D fisheye lens
M12 Lens :
S mount 4K fisheye lens
Constructure :
Metal + glasses
Brand Name :
CCOM LENS
Description

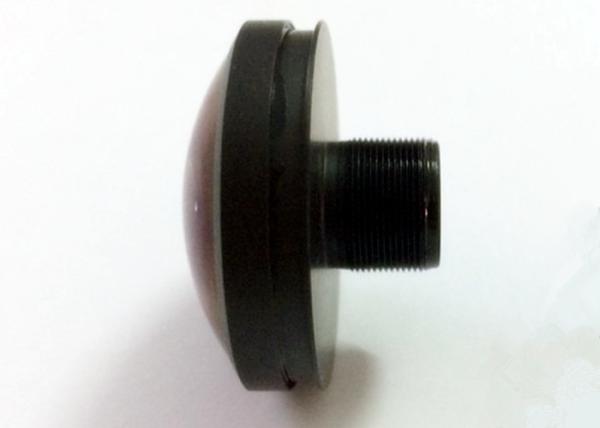

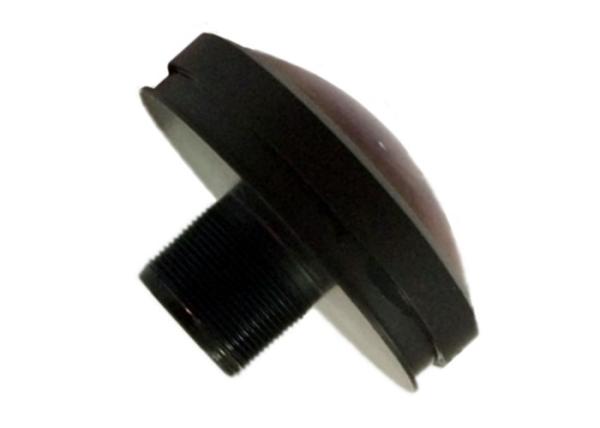

1/2.3" 1.44mm F2.4 14Megapixel M12*0.5 mount 220degree Super Fisheye Lens for IMX078/MN34110, Drone UAV 360VR lens

MODEL 1230144MPF-A

IMAGE FORMAT 1/2.3"
FOCAL LENGTH(mm) 1.44
FOV: 220°(D)*220°(H)*220°(V)
RESOLUTION 14MP
APERTURE 2.4
MOUNT(mm) M12x0.5
IRIS Fixed
TV DISTORTION <-145%
M.BFL(mm) 3.32
T.T.L.(mm) 25.29
R.I. >90%
C.R.A. <13°
DIMENSION(mm) Φ27x21.97
LENS COMPOMEMT 7G+IR

MODEL 1230144MPF-B

IMAGE FORMAT 1/2.3"
FOCAL LENGTH(mm) 1.44
FOV: 220°(D)*220°(H)*220°(V)
RESOLUTION 14MP
APERTURE 2.4
MOUNT(mm) M12x0.5
IRIS Fixed
TV DISTORTION <-145%
M.BFL(mm) 3.5
T.T.L.(mm) 25.24
R.I. >85%
C.R.A. <13°
DIMENSION(mm) Φ32x21.74
LENS COMPOMEMT 7G+IR

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
