1/2.7 7-22mm F1.4 3MP DC Auto IRIS CS Mount Vari-focal Lens for OV2715/IMX290/OV4689/AR0330
1/2.7 7-22mm F1.4 3MP DC Auto IRIS CS Mount Vari-focal Lens for OV2715/IMX290/OV4689/AR0330
Specifications
Model Number :
1270722DM-CS-3MP
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
3-8 work days
Packaging Details :
Standard
CS Mount Lens :
7-22mm vari-focal Zoom Lens
VARI-FOCAL Lens :
DC Auto IRIS CS mount Lens
IR Collection :
YES
Video Camera Lens :
Low Distortion CS mount Lens
Brand Name :
CCOM LENS
Description

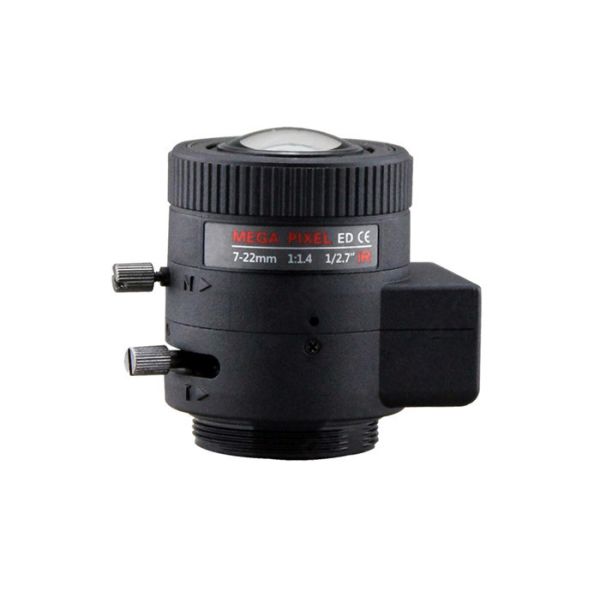

1/2.7" 7-22mm F1.4 3Megapixel DC Auto IRIS CS Mount 1080P Vari-focal Lens for OV2715/AR0230/ IMX290/IMX291/ IMX222/OV4689/ AR0330/OV5658 etc.

MODEL 1270722DM-CS-3MP
IMAGE FORMAT 1/2.7"
FOCAL LENGTH 7-22mm
F.O.V (H) 1/2.7" 43°~17°, 1/2.8" 42°~16°, 1/3.2" 36°~14°

TV DISTORTION <-5% (wide)
RESOLUTION 3MP
APERTURE F1.4
MOUNT CS (D14 optional)
IRIS DC Auto (P-IRIS optional)
ZOOM Manual
FOCUS Manual
M.O.D. 1m

C.R.A. <11°

Flange B.F.L. 12.53mm (in air)
T.T.L. 51.4mm
DIMENSION Φ33×44.6mm

WEIGHT 39g ±4g

IR COLLECTION YES
OPERATING TEMPERATURE -20℃～+60℃

Tips:
- Manual/DC Auto IRIS/P-IRIS option
- D14/CS option
