Specifications
Model Number :
ICR423-M12
Place of Origin :
China
MOQ :
500pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
IR CUT Filter Switch :
M12 IR-Cut Filter Lens Holder
Driven way :
Motor
Description

Compact 1080P M12x0.5 mount Double IR-Cut Filter Switch, 645nm IR filter plus AR Filter Lens Holder (ICR) designed for special applications


Model: ICR423-M12 (mounting hole distance 22mm, height 9.0mm)


Filters: 645nm IR CUT filter(Day) + AR filter(Night)

Metal/plastic Holder hole distance: 18mm, 20mm, 22mm optional

This product is suitable for high definition SDI cameras, high definition IP cameras, the pure analog cameras, consumer IP camera, etc. in CCTV surveillance industry. it can solve the problem of the camera image partial color in the daytime and infrared effect weak in the evening, etc.

IR CUT Filter Switch parameters

Filter effective area: 7.2*5.5mm
Mount: M12x0.5
Mounting hole distance: 22mm
Rated voltage: 2.0-5.0V DC
Driving currency: 55 mA/3.0 V/100ms (all directions), 100 mA/3.0 V/200ms (all directions), 100mA/5.0 V/100ms (all directions), 160mA/5.0V/200ms (all directions)
Max. currency: 170mA/5V/250ms (all directions)
Driver: Motor
Operating temperature -10～60℃
Storage temperature -20～80℃
Net weight: 2.15g

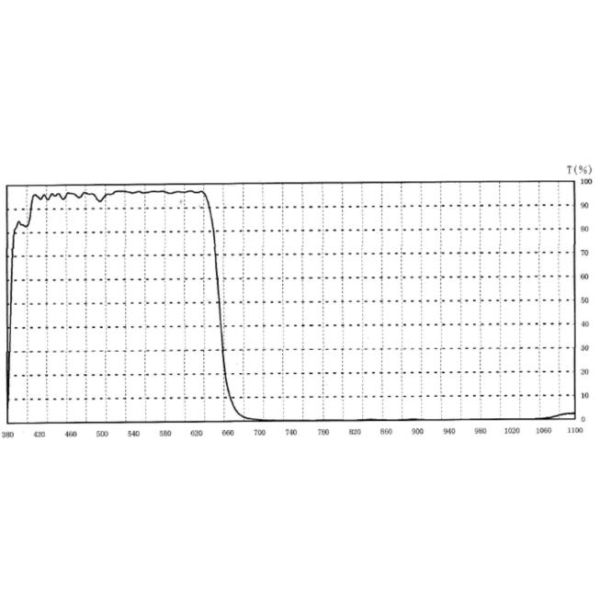

645nm IR filter Spec.
Compact M12 mount IR-Cut Filter Switch, Motor Driven IR Filter Holder for 1/2.5
410~420nm≥80%
420~600nm avg. 90%,min. 80%
645±10nm 50%
715nm≤6%
735~1050nm≤2%
1051~1100nm≤4%

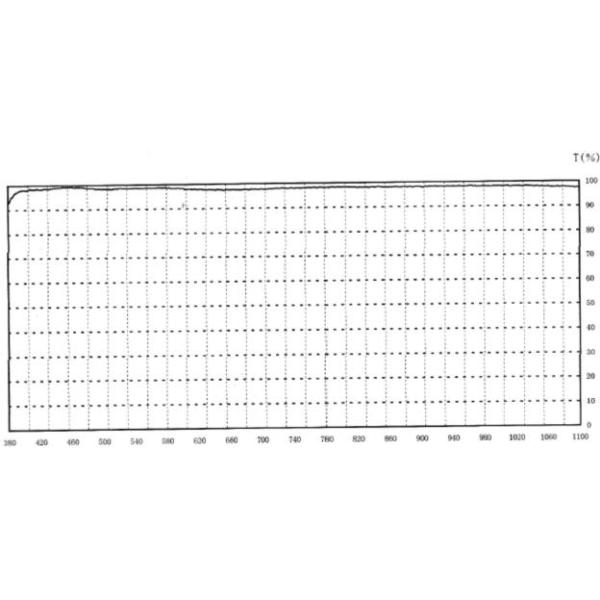

AR glass spec.
Compact M12 mount IR-Cut Filter Switch, Motor Driven IR Filter Holder for 1/2.5
Wavelength 420~1100nm
pass rate T>97%


For more details, or you would like to have perfect IR-CUT filter switch designed for your applications, please feel free to contact us.

Tips:

- M12/CS mount option

- Please use M1.7x6mm flat-headed self tapping screws.
