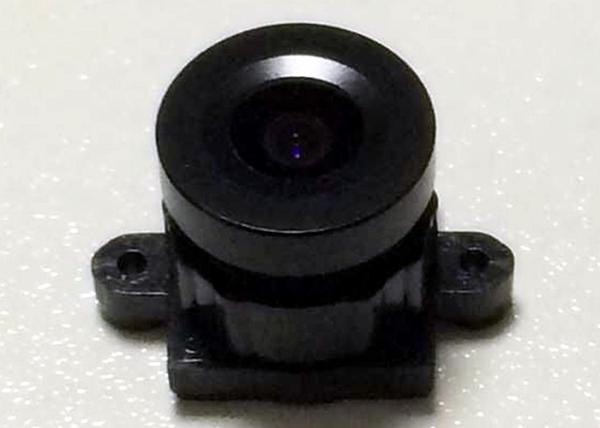

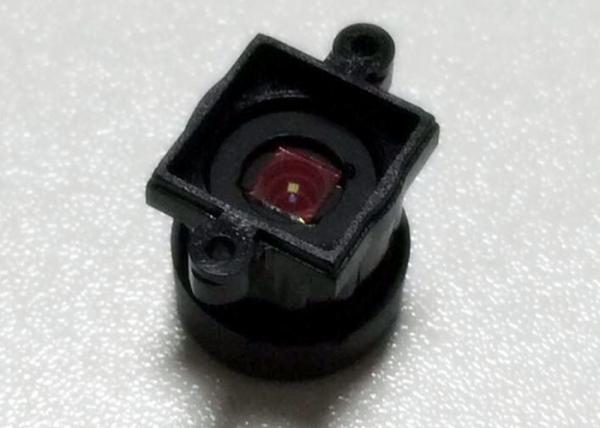

1/4 2.3mm 2Megapixel M12 mount 138degree Wide Angle Lens for OV5640/OV2640/OV2643/OV9712/HM1375
1/4 2.3mm 2Megapixel M12 mount 138degree Wide Angle Lens for OV5640/OV2640/OV2643/OV9712/HM1375
1/4 2.3mm 2Megapixel M12 mount 138degree Wide Angle Lens for OV5640/OV2640/OV2643/OV9712/HM1375
1/4 2.3mm 2Megapixel M12 mount 138degree Wide Angle Lens for OV5640/OV2640/OV2643/OV9712/HM1375
1/4 2.3mm 2Megapixel M12 mount 138degree Wide Angle Lens for OV5640/OV2640/OV2643/OV9712/HM1375
1/4 2.3mm 2Megapixel M12 mount 138degree Wide Angle Lens for OV5640/OV2640/OV2643/OV9712/HM1375
1/4 2.3mm 2Megapixel M12 mount 138degree Wide Angle Lens for OV5640/OV2640/OV2643/OV9712/HM1375
1/4 2.3mm 2Megapixel M12 mount 138degree Wide Angle Lens for OV5640/OV2640/OV2643/OV9712/HM1375
Specifications
Model Number :
14023MP-M12 14023MPF-M12
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Brand Name :
CCOM LENS
Camera Lens :
CCTV Video Lens
Optical Lens :
M12 mount wide-angle Lens
TV Lens :
1/4" camera lens
Material :
5G+IR
Description

1/4" 2.3mm F2.4 2Megapixel M12-mount 138degree wide-angle lens for OV5640/OV2640/OV2643/OV9712/HM1375..., 2.3mm wide angle lens for security camera/car video recorder...

MODEL 14023MPF-M12
SENSOR FORMAT 1/4"
SENSOR SIZE 1/4”
FOCAL LENGTH(EFL) 2.3mm
F.O.V.(D*H*V) 138°*98°*70°
RESOLUTION 2MP
APERTURE F2.4
OPTICAL DISTORTION <-25%
MOUNT M12xP0.5
B.F.L. 4.33mm
F.B.L. 2.79mm
T.T.L. 12.85mm

DIMENSION Φ14x10.59mm
LENS CONSTRUCTURE 5G+IR(650nm)

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M7/M8/M12 mount option
