Specifications
Brand Name :
CCSC
Model Number :
3 way or 5 way
Certification :
API 6A, API 16C
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T
Delivery Time :
5 weeks
Packaging Details :
Plywood Box
Material :
DD,EE,FF Class
Temperature :
P-U
PSL :
3
PR :
2
Valve Brand :
Ball valve we used is Balon brand, China brand or customerized brand.
Description

Oil and gas manifold is to divert the flow of oil and gas from separator or surge tank to other burner or gas flare or to other flowline.

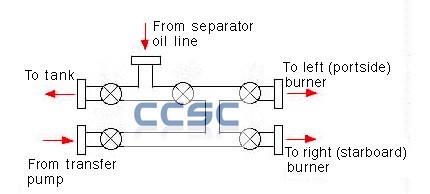

Oil manifold connects to separator oil line and lead oil or gas to surge tank or gauge tank, transfer pump, and the burner. It allows oil leaving the separator or surge tank to be diverted to tank, burners, and production line. Typically, it consisits an arrangement of piping, five ball valves, crossover with hammer union and skid assembly, but flexible configuration of valves and ports.

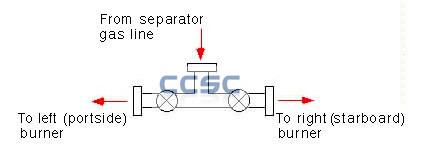

Gas from the separator flows through the gas manifold (connected to the separator gas line) and is directed to one of two gas flares, the gas manfild is equipped with 2 ball valves.
