Two Way Back Pressure Valve - One Way Back Pressure Valve-Working Pressure:2000-20000psi.
Two Way Back Pressure Valve - One Way Back Pressure Valve-Working Pressure:2000-20000psi.
Two Way Back Pressure Valve - One Way Back Pressure Valve-Working Pressure:2000-20000psi.
Two Way Back Pressure Valve - One Way Back Pressure Valve-Working Pressure:2000-20000psi.
Two Way Back Pressure Valve - One Way Back Pressure Valve-Working Pressure:2000-20000psi.
Two Way Back Pressure Valve - One Way Back Pressure Valve-Working Pressure:2000-20000psi.
Specifications
Brand Name :
CCSC
Model Number :
One Way - Two Way
Certification :
API 6A, API 16C
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
4-5 weeks
Packaging Details :
plywood box
Working Pressure :
H2S service is used up to 20,000psi.
Size :
Size available from 1 1/4" - 6 5/16".
material :
AISI 410SS, 17-4 PH, Inconel 718, etc, which is suitable for H2S service.
Description

Back Pressure Valve

Back Pressure Valve is installed inside the tubing hanger for holding pressure from below to isolate well pressure during the wellhead installation, CCSC provides the back pressure valve which is same as Cameron back pressure valve type 'H', both two way BPV and one way BPV are available, the most common size we have manufactured is 6 5/16" and 4", the working pressure is upto 20,000PSI.

Two Way Back Pressure Valve - One Way Back Pressure Valve-Working Pressure:2000-20000psi.



Two Way Back Pressure Valve One Way Back Pressure Valve

CCSC Back Pressure Valve feature:

  • 1. Interchangeable with Cameron back pressure valve type 'H'.
  • 2. The body & piston material can be AISI 410SS, 17-4 PH, Inconel 718, etc, which is suitable for H2S service.
  • 3. H2S service is used up to 20,000psi.
  • 4. Size available from 1 1/4" - 6 5/16".

Two Way Back Pressure Valve - One Way Back Pressure Valve-Working Pressure:2000-20000psi.

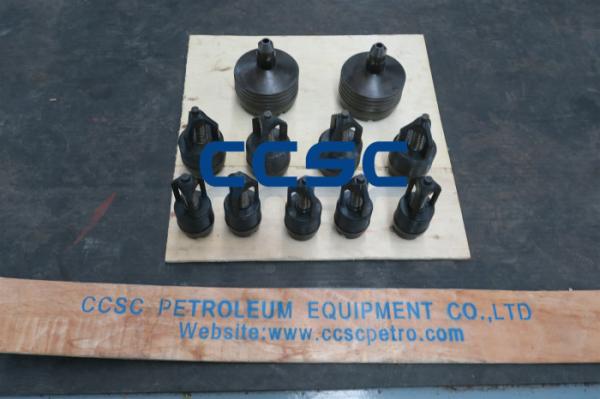

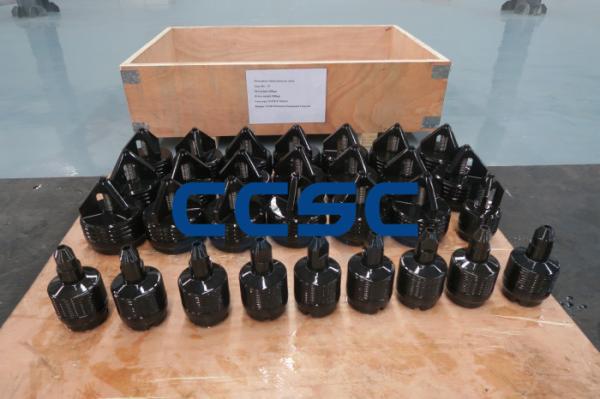

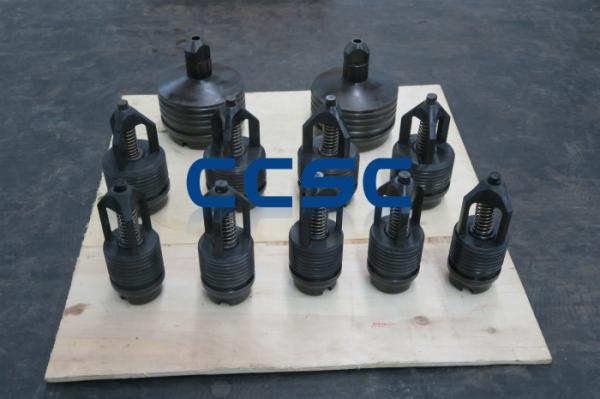

Several two way back presseure valves ready to ship
