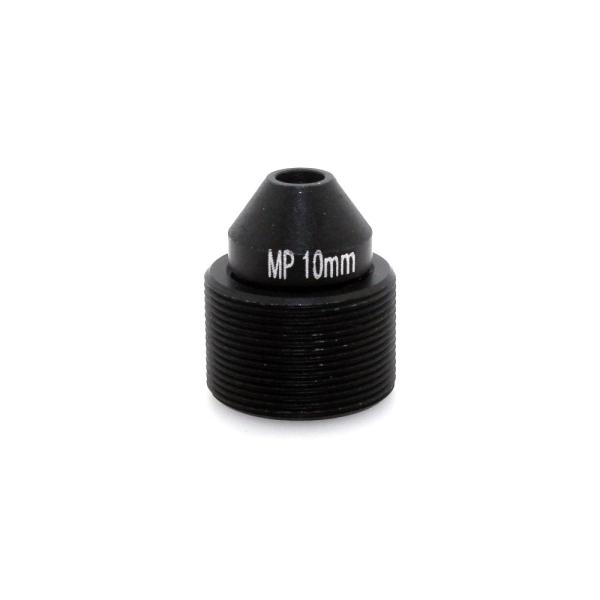

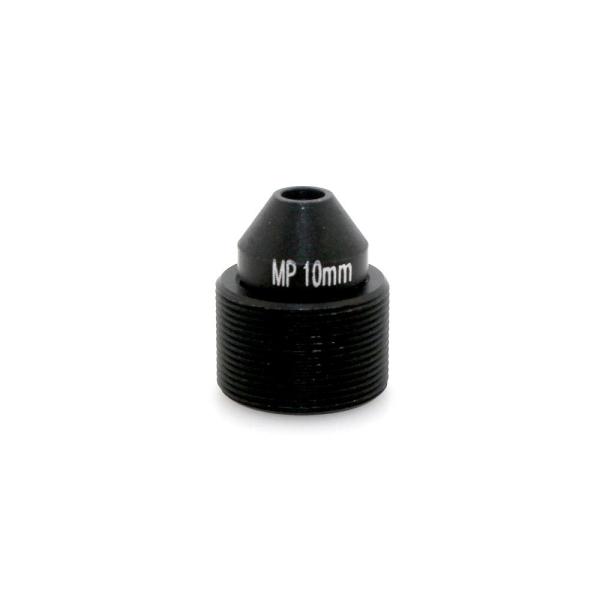

Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
Specifications
Brand Name :
Octavia
Model Number :
MR-C1016WZK-MP
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PAYPAL, WEST UNION
Supply Ability :
1000000pcs/month
Delivery Time :
The products will be ready within 3 to 7 days, New products will need 30 days
Packaging Details :
The inside is packed by blister box usually, the outer is packed by carton
Model: :
MR-C1016WZK-MP
Mount: :
M12*0.5
Focal Length: :
10mm
Image Format: :
1/2.7''
Aperture: :
F1.6
Field Angle(1/3%22): :
37.5°
Lens Size :
Φ12mm(Dia) * 14mm(H)
Description

10mm pinhole mini Lens Megapixel HD camera Board M12 lens for CCTV Security Camera:

Specification
Model MR-C1016WZK-MP Mount M12*0.5
Focal Length 10mm BFL 5.6mm
Sensor Size 1/2.7'' IR Filter Optional
Aperture F1.6 Dimension Φ12*14mm
MOD 0.3m Operating Temperature -20°C -- +80°C
Angle of View 37.5° Resolution 1MP
Application Pinhole plane lens, doorbell lens

Features:
1. 10mm pinhole mini Lens, Megapixel HD camera Board M12 lens
2. 1/2.7" Format High quality for CCTV camera, video doorbell lens
3. F1.6 aperture M12 mount 2.5mm 37.5 Degree of FOV security lens
4. MP High resolution Mini Lens, HD hidden camera lens, IR Filter is optional as request

Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens

it could meet the demands as per MP resolution cameras. IR Cut and Lens Holder are available as per request.

Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution

Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution

Supply Ability:10000 pcs per month

Packaging & Delivery

100 pcs lens / bag

5000 pcs lens / carton

Or as your request

Pinhole Megapixel HD Camera M12 Board Lens 10mm Focal Length High Resolution
