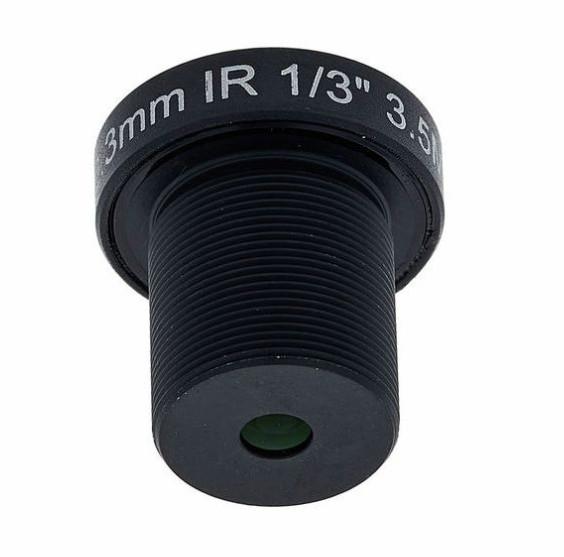

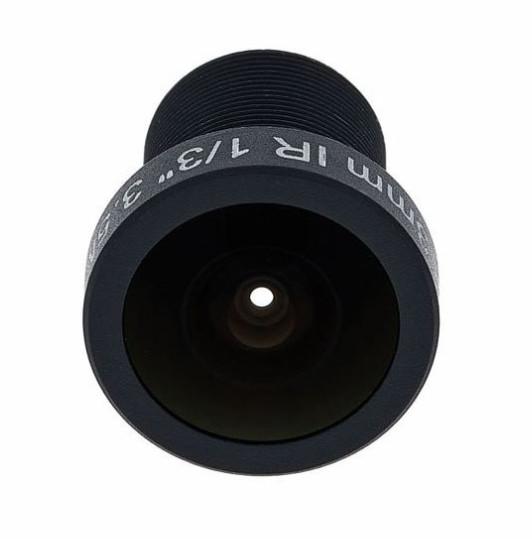

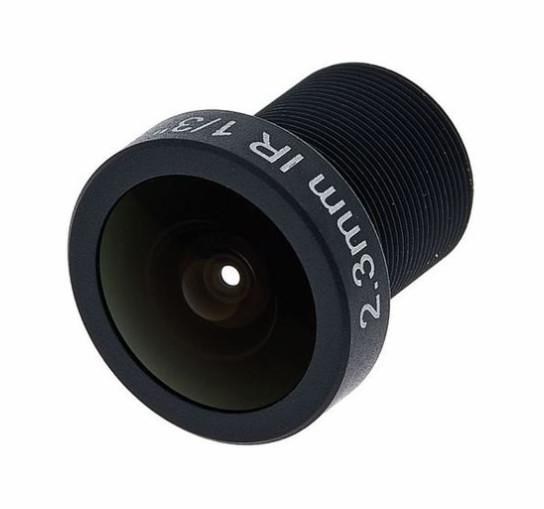

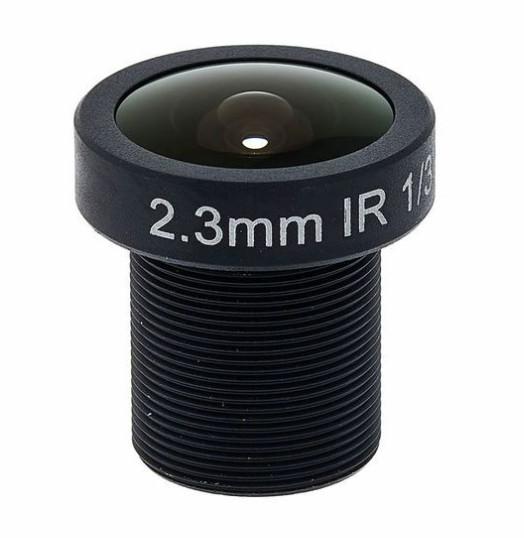

2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
Specifications
Brand Name :
Octavia
Model Number :
MR-F02322IRST-3MP
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PAYPAL, WEST UNION
Supply Ability :
1000000pcs/month
Delivery Time :
The regular products will be ready within 3 to 7 days, special models will need about 30 days
Packaging Details :
The inside is packed by blister box usually, the outer is packed by carton
Model: :
MR-F02322IRST-3MP
Mount: :
M12*0.5
TTL :
23.59mm
Focal Length: :
2.3mm
FOV :
172°*126.4°*91.5°
Aperture :
F2.2
Description

2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens:

Specification
Model MR-F02322IRST-3MP Mount M12*0.5
Focal Length 2.3mm Resolution 3.5MP
Sensor Size 1/3' BFL 5.18mm
Aperture F2.2 Weight 6.5g
MOD 0.3m Dimension 17*18.7mm
Angle of View 172°*126.4°*91.5° Material Metal
Operating Temp. -40°C ~ +85°C Sensor OV7740
Application wide angle lens

Features:
1. M12 mount dash cam lens with HD large viewing
2. 2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
3. High compatibility, can adapt to most surveillance cameras.
4. It is simple to install and remove without affecting the installation and use of other accessories.

5. Made of premium aluminum alloy material, rugged, anti-corrosion and durable, ensures long lifespan.

2.3mm 3.5mp F2.2 1/3 inch m12 wide angle cctv board IR lens
