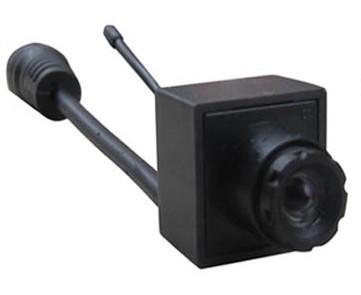

0.5MM F1.2 90deg VOA 16 CHS 0.008Lux 5.8G Mini Wireless Camera
0.5MM F1.2 90deg VOA 16 CHS 0.008Lux 5.8G Mini Wireless Camera
Specifications
Place of Origin :
china
Price :
90
Delivery Time :
3days
Payment Terms :
T/T or PAYPAL
MOQ :
1pcs
Description

It adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities. Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(90deg),small size, wireless transmission, tiny weight( 10g), continuous working(AV power supply), and easy installation . It is a good helper for home monitoring and burglar.

Features:

1. No-interference 5.8G frequency, no need to worry about interference from general 2.4G frequency;
2. 16 channels available, users can freely choose one when they use it;
3. 0.008LUX super low illumination, which can see clearly under dim light;
5. 90deg broad view angle
6. Low power consumption assures the long time working life;
7. 25mW transmitting power, which leads 100 meters wireless transmission range.

Use Method:

Connect it with power supply, it starts to work. At the same time, power on wireless receiver and choose corresponding channel to receive/record real time audio & video.

SPECIFICATIONS:

Working frequency

CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CCH7: 5745MHz; CH8: 5725MHz
CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz.
CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz

Audio Subcarrirer Level-28dBc
RF OUTPUT POWER25mW
TRANSMISSION RANGE100 meters
Audio Subcarrirer Freq.ncy6.5MHz
SENSOR DIMENSIONNTSC: 720(H)×480(V)PAL: 720(H)×576(V)
SENSITIVITY0.008Lux/F1.2
LENS & VIEW ANGLE0.5mm F1.2 / 90 °
SIZE(L x W x H)22.5 x 15.5 x 15.5 MM
WEIGHT(g)10g
WORK CURRENT230mA
POWER REQUIREMENTDC 4V
OPERATING TEMPERATURE- 20°C ~ + 50°C , Relative humidity 85%

MODEL NO. & FREQUENCY:

wireless camera5.8G wireless DVR
Channel SwitcherCHFrequencyFreq. groupCH
1# ON2# ON3# ON4# ONCH15865MHz5.8G-ACH1
1# ON2# OFF3# ON4# ONCH25845MHz5.8G-ACH2
1# ON2# ON3# OFF4# ONCH35825MHz5.8G-ACH3
1# ON2# OFF3# OFF4# ONCH45805MHz5.8G-ACH4
1# ON2# ON3# ON4# OFFCH55785MHz5.8G-ACH5
1# ON2# OFF3# ON4# OFFCH65765MHz5.8G-ACH6
1# ON2# ON3# OFF4# OFFCH75745MHz5.8G-ACH7
1# ON2# OFF3# OFF4# OFFCH85725MHz5.8G-ACH8
1# OFF2# ON3# ON4# ONCH95705MHz5.8G-BCH1
1# OFF2# OFF3# ON4# ONCH105685MHz5.8G-BCH2
1# OFF2# ON3# OFF4# ONCH115665MHz5.8G-BCH3
1# OFF2# OFF3# OFF4# ONCH125645MHz5.8G-BCH4
1# OFF2# ON3# ON4# OFFCH135885MHz5.8G-BCH5
1# OFF2# OFF3# ON4# OFFCH145905MHz5.8G-BCH6
1# OFF2# ON3# OFF4# OFFCH155925MHz5.8G-BCH7
1# OFF2# OFF3# OFF4# OFFCH165945MHz5.8G-BCH8
