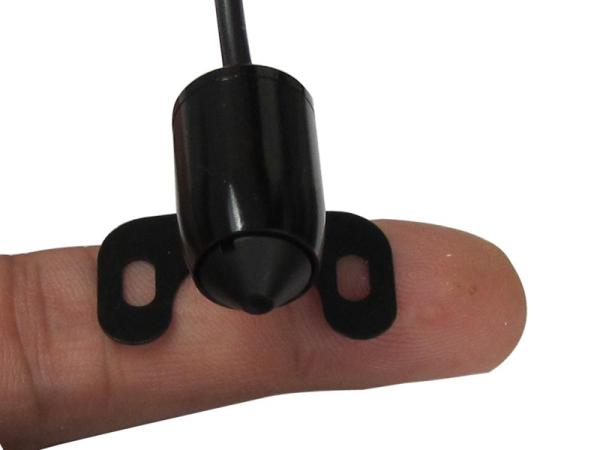

Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio
Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio
Specifications
Price :
65
Delivery Time :
3 days
Payment Terms :
pp,t/t
MOQ :
1pcs
Description

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Main Features:

* Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
* Light Weight: easy install without causing unnecessary damage on object surface;
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Wide view angle(90 degree );
* Low Illumination, high quality video record function;
* Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video.

Specifications:

PICK UP ELEMENTSingle chip 1/3 CMOS
SYSTEMNTSCPAL
NUMBER OF PIXELNTSC：656（H）×492（V）PAL：786（H）×576（V）
SENSOR DIMENSION4.75mm（H）×3.55mm（V）
HORIZONTAL RESOLUTIONApproximately 520TV Lines
SCANNING SYSTEM2：1 Interlace
SENSITIVITY0.008Lux/F1.2
LENS & VIEW ANGLE0.5mm F2.0 ： 90 °
S/N RATIO48dB
ELECTRONIC SHUTTEROUT （1/60 S TO 1/100000 S）OUT （1/50 S TO 1/100000）S
AUTO GAIN CONTROLOUT
WHITE BALANCE CONTROLOUT
BACK LIGHT COMPENSATIONOUT
VIDEO OUT1.0V p-p/75ohm
AUDIO OUT1.0V p-p/1Kohm （only MC908A / MC908-12 / MC908AE）
SIZE (L x D )27.5mm x 15.0mm
WEIGHT8g
WORK CURRENTDC5V: 70mA DC12V: 40mA
POWER REQUIREMENTDC 5V/12V
OPERATING TEMPERATURE- 10° C ~ +50°C ，less than 90% RH
ConnectionPIN1=>Red Power supply PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=> White AUDIO OUT
