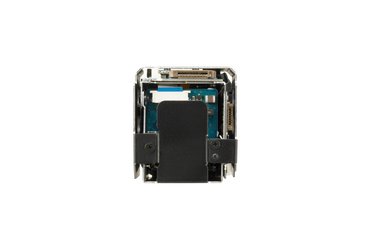

Type ：SONY FCB-EX11DP

Image Device ：1/4-type Exview HAD CCD

Signal System ：PAL

Effective Pixels ：440，000 pixels

Lens ：10x optical zoom, F1.8 to F2.9 f 4.2mm to 42.0 mm

Digital Zoom ：12x (120x with optical zoom)

Horizontal Resolution ：ON/OFF（530 TV Line resolution Mode On）

Horizontal Viewing Angle ：46.0° (wide end) to 4.6° (tele end)

Minimun object distance：200 mm (wide) to 1.0 m (tele)

Sync System：Internal/External (V-lock)

Minimum Illumination ：1.0 lx （typical）(F1.8, 50 IRE)

S/N Ratio：More than 50 dB

Electronic Shutter ：1 to 1/10000 s，22 steps

White Balance ：Auto、ATW、Indoor、Outdoor、One-push、Manual

Gain：Auto / Manual (-3 to 28 dB，2 dB steps)

AE Control ：Auto，Manual，Priority Mode，Bright，EV Compensation，Backlight Compensation，Slow AE

EV Compensation ：-10.5 to 10.5 dB (1.5 dB steps)

Backlight Compensation ：On/Off

Privacy Zone Masking ：On/Off (24 positions, 8 position per screen) 14 colors + Mosaic

Character Generator ：Camera Mode display: ON/OFF Title: 11 Lines (20 characters per line)

Focus System ：Auto (Sensitivity: normal ，low)，One-push AF，Infinity，Interval AF，Zoom Trigger AF

Picture Effects ：E-Flip，Nega Art，Black & White，Mirror Image

Video Output ：VBS: 1.0 Vp-p (sync negative)，Y/C

Camera Control Interface ：VISCA (TTL signal level)，Baud rate: 9.6 Kb/s，19.2 Kb/s，38.4 Kb/s，1 or 2 Stop bit selectable

Storage Temperature ：-20 to 60 C°

Operating Temperature ：0 to 50 C°

Power Requirements ：DC 6 to 12 V19W

Power Consumption：19 W (motors inactive)，2.8 W (motors active)

Weight ：95 g

Dimensions (W x H x D)：35.9 x 40.8 x 59.2 mm
