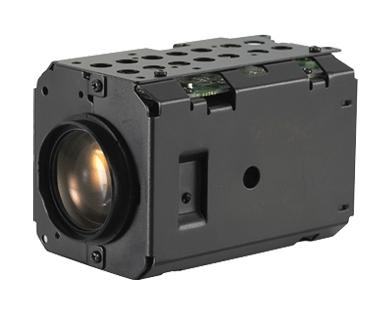

CNB-VP200L 22X OSD Zoom Auto Focus/Auto Iris CCD Camera
CNB-VP200L 22X OSD Zoom Auto Focus/Auto Iris CCD Camera
Specifications
Brand Name :
cnb
Delivery Time :
3days
Payment Terms :
T/T or PAYPAL
MOQ :
1pcs
Description

CNB-VP200L Highlights:
* 1/4" SONY Super HAD CCD
* Built-in Auto Focus/Auto Iris
* 22x Optical Power Zoom Lens
* 10x Digital Zoom (220x Zoom)
* Digital Slow Shutter
* OSD (On Screen Display)
* RS-232C TTL Interface

CNB-VP200L Specifications:

ModelVN200LVP200L
Signal SystemNTSC : 525 LinesPAL : 625 lines
Scanning System2:1 Interlace
Scanning Frequency(H)15.734 KHz15.625kHz
Scanning Frequency(V)59.94 Hz50Hz
Image Sensor1/4 inch Interline Transfer SONY Super HAD CCD
Sync. SystemInternal/External(Line Lock, VD Lock)
Total Pixels Number811(H) x 508 (V) 410K795(H) x 596(V) 470K
Effective Pixels Number768(H) x 494 (V) 380K752(H) x 582(V) 440K
Horizontal ResolutionHorizontal : 480 TV Lines
Video Output Level1.0 Vp-p (75 Ohms, composite)
S/N RatioMore Than 48dB (AGC Off)
Digital Zoom Ratio10x (Total Zoom Ratio : 220x), 2x ~ 10x Variable
Lens22x Optical Zoom (F1.6, f=3.9~85.8mm) Video AF
Angle of ViewHorizontal : 47 degree (wide) / 3 degree (tele)
Min. Illumination0.001 Lux (DSS)
Day & Night SystemDigtial Slow Shutter (2FLD~128FLD)
Zoom/Focus Preset64 Mode Set (Store Internal EEPROOM)
OSD MenuOn / Off
Color / BWOn / Off
Sharpness ControlManual (Up ~ Down)
Focus ModeAuto / Manual
Brightness ControlManual (Up ~ Down)
Input/Output Connector9 Pin Flat Cable
Electronic Shutter Speed1/60 ~ 1/10,000sec (8 steps)1/50 ~ 1/10,000sec (8 steps)
Power VoltageDC 9V ~ 15V (Recommendation DC12±0.5V)
Power ConsumptionMax. 4.2W / 350mA
Dimensions49.2(W) x 53.2(H) x 86.6(D) mm
Weight (Net)Approx. 205g
