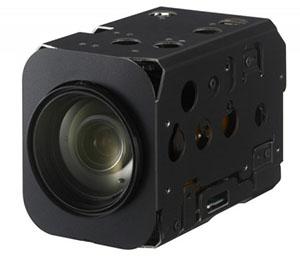

SONY 30x HD Color Block Camera FCB-EH6500 3.27 Megapixel Zoom Color Block Camera
SONY 30x HD Color Block Camera FCB-EH6500 3.27 Megapixel Zoom Color Block Camera
Specifications
Place of Origin :
japan
Brand Name :
sony
Model Number :
fcb-eh6500
Price :
799
Delivery Time :
3days
Payment Terms :
t/t paypal
MOQ :
1pcs
Description

In response to growing demand for the high-quality, high resolution images that only HD can deliver, the FCB-EH Series now offers a range of 12x to 30x optical zoom lenses with outstanding features for surveillance, intelligent traffic, unmanned vehicles, photo booths, police vehicles, low vision, and videoconferencing applications.

The flagship camera is the FCB-EH6500 which incorporates a 1/2.8-type Exmor™ CMOS image sensor with Full HD (1920 x 1080) resolution, and achieves excellent zooming performance with a 30x optical zoom lens. The FCB-EH6500 boasting approximately 3,270,000 effective pixels for exceptional picture quality. Other features, such as Wide-D, Auto ICR and Spherical Privacy Zone Masking, make the FCB-EH6500 ideally suited for security and surveillance applications. Available picture effects include Color Enhancement, E-flip, Nega Art, Black & White, and Mirror Image.

Key Features:

  • Various modes for White Balance (Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, Onepush, Manual)
  • Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement)
  • Picture freeze
  • Temperature readout
  • Slow AE response (approx. five minutes)
  • Title display (20 characters per line, max. 11 lines)
  • Camera mode display (English)
  • Electronic shutter/slow shutter
  • Spot AE
  • High Resolution mode
  • IR Focus Correction function
  • Four presets for gamma control
  • Four levels of chrominance suppression

FCB-EH6500 Specifications:

Image sensor1/2.8-type Exmor CMOS
Effective number of pixelsApprox. 3.27 Megapixels
Picture QualityFull HD 1080p (1920 x 1080)
Image size (H x V)1920 x 1080, 1280 x 720, 720 x 480, 720 x 576
Lens

30x optical zoom f=4.6 mm (wide) to 138.0 mm (tele) F1.6 to F4.7

Digital zoom12x (360x with optical zoom)
Angle of view (H)

1080p mode - 59.5° (wide end) to 2.1° (tele end)

720p mode - 40.6° (wide end) to 1.4° (tele end)

Minimum object distance10 mm (wide end) to 1,200 mm (tele end) (Default: 300 mm)
Minimum illumination (50%)High sensitivity mode - 0.5 lx (F1.6, ICR off) 0.095 lx (F1.6, ICR on)
Normal mode - 1.7 lx (F1.6, ICR off) 0.3 lx (F1.6, ICR on)
Recommended illumination100 lx to 100,000 lx
S/N ratioMore than 50 dB
Signal SystemHD - 1080p/30, 1080p/29.97, 1080p/25, 1080i/60 (30 PsF), 1080i/59.94 (29.97 PsF), 1080i/50 (25 PsF), 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
SD - NTSC, PAL
Video outputHD - Analog: Component (Y/Pb/Pr), Digital: Y/Cb/Cr 4:2:2 via LVDS, (Signal format conforms to SMPTE274/SMPTE296.)
SD - VBS
Camera control interfaceVISCA (CMOS 5 V level), Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, Stop bit: 1 bit
Electronic shutter speed1/1 to 1/10,000 s, total 22 steps
White balanceAuto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
GainAuto/Manual (-3 dB to +28 dB, +2 dB step/total 16 steps), Max. Gain Limit (+6 dB to +28 dB, +2 dB step/total 12 stpes)
AE controlAuto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Focusing systemAuto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
EV compensationNo
Backlight compensationYes
Aperture control16 steps
Preset6 positions
Wide-D*Yes (On/Off/Auto)**
Image stabilizationYes
StableZoomYes
Digital outputYes
Auto ICRYes
Spherical privacy zone maskingYes
Noise reductionYes (On/Off) (Level 5 to 1/Off total 6 steps)
Motion detectionYes
AlarmYes
Slow AE responseYes (Approx. 5 minutes)
Picture effectsYes (E-Flip, Nega Art, Black & White, Mirror image, Color enhancement)
Picture freezeYes
Slow shutterYes
Temperature readoutYes
Title displayYes (20 characters/line, max. 11 lines)
Camera mode displayYes
Key switch controlNo
Camera operation switchNo
Storage temperature-20°C to +60°C (-4°F to 140 °F)
Storage humidity20% to 95%
Operating temperature-5°C to +60°C (23°F to 140°F)
Operating humidity20% to 80%
Power requirements6.0 V to 12.0 V DC
Power consumption3.3 W (zoom/focus inactive) / 3.8 W (zoom/focus active)
MassApprox. 265 g (9.3 oz)
Dimensions (W x H x D)50.0 x 60.0 x 89.7 mm (2 x 2 3/8 x 3 5/8 inches)
