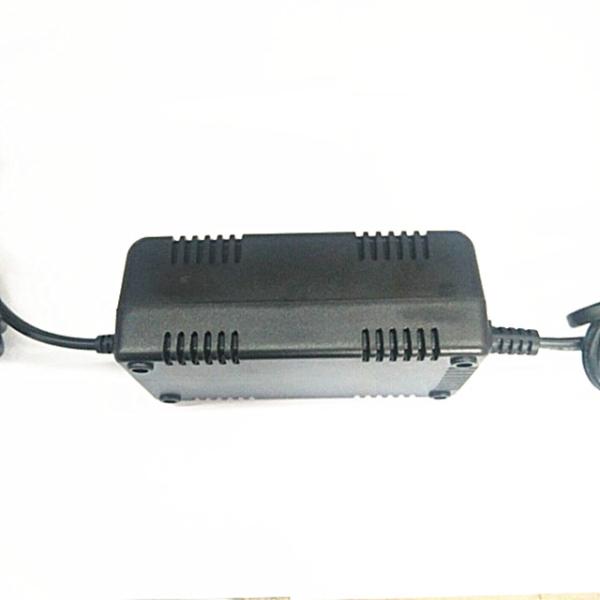

AC DC adaptor 12V 15v 16v 18v 20v 24v 30v adjustable voltage Power Adapter 60W 80W with exchange DC tip

www.btbadapter.com

Skype :beryl18

Phone :+8613412619588

Wechat:beryl18

[product features]

3. Short circuit and overload protection, good insulation performance and high electrical resistance.
4. Small size, light weight, low working temperature and long service life.
5.100% full load burning machine test.
6. It has EMI filter, good anti-interference performance, small dc ripple and high working efficiency.
7. Full load high temperature burning machine, 100% aging test.
8. The product does not contain (and does not exceed the limits set out in the regulations) six toxic substances of cadmium, chromium, lead, mercury, PBB and PBDE which are prohibited in Europe.

[technical parameters]
1. Input voltage range: ac100-240v.
2. Input voltage frequency: 50-60hz.35va
3. Output voltage: 12V 13V 16V 18V 20V 24V 30V
4. Output voltage adjustment rate: 1%.
5. Maximum output current: 5A
6. Current output range: 0-6a
7. Efficiency: >85%
8. Output ripple resistance: < 100mvp-p.
9. Output overcurrent protection current: 125%
10. Maximum output power: 60W and 80w

[basic parameters]
Specifications: European, Chinese, Australian, American, medical, British, Japanese, German, Canadian, environmental products
Rated input voltage: 100 ~ 240VAC 50/60hz
Output line length: 1.2m, 1.5m
Output plug style: DC head inside 55*25 forklift is positive and negative, while the internal consumption is negative.
DC plug: DC plug: 5.5*2.1mm. 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, mini USB, micro USB, etc
[ characteristics ]
This product has 24V//9V/12V/ -1a / 1.25a /2A/5A, etc., which can be ordered as required!
Fine workmanship, good material, very easy to use and stable.

[scope of application]
This power supply is a normal switching power supply, but stable and reliable, sufficient output current, no false standard!
Widely used in security surveillance cameras, television set-top box solution interference, router, communication, chargers, electronic refrigerator, computer power supply, light emitting devices, massager, car refrigerator, electronic refrigerator, semiconductor, warm wine, water dispensers, intelligent control, lamps and lanterns, advertising light boxes, telephone, cable TV, TV, acoustics, optical transceiver, DVD. The industrial computer, visual doorbell, LED display, scanner, civil telecommunications equipment, automobiles, medical apparatus and instruments, equipment, etc.

[attention to purchasing]
Devices of all kinds of different plug, voltage and DC plugs are within polarity (+) and negative (-) is the same as the product, the current should be less than or equal to the product, please pay attention to choose, to avoid the plug or parameter selection error cannot be used, if you don't understand, please consult the owner!

[protection function]
1. Short circuit circuit protection
2. Overcurrent protection
3. Overpressure protection

[environmental requirements]
1. Working temperature: 0 ℃ - + 40 ℃, full load and working properly.
2. The storage temperature (shell) : - 10 ℃ - + 55 ℃
3. Work humidity: 5% (0 ℃) to 90% (40 ℃), 72 hours, full load and working properly.

[mechanical properties]
1. Drop test: the product falls from a meter high to the board without damage.
2. Swing test: the weight of DC lead suspension is 500g, and the swing Angle is 60 degrees, which can withstand at least 2000 times. The bending speed is 40 times per minute, without any damage.
3. Packaging :50PCS/CTN
