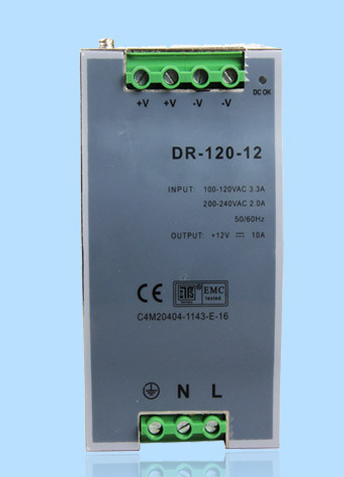

DIN-Rail Switching Power Supply 120W 12V 5V 24V
DIN-Rail Switching Power Supply 120W 12V 5V 24V
DIN-Rail Switching Power Supply 120W 12V 5V 24V
DIN-Rail Switching Power Supply 120W 12V 5V 24V
DIN-Rail Switching Power Supply 120W 12V 5V 24V
DIN-Rail Switching Power Supply 120W 12V 5V 24V
Specifications
Brand Name :
BTB
Model Number :
DR-D120-12
Certification :
CE ,rohs
Place of Origin :
China
MOQ :
100pcs
Price :
$2.0-$10.00
Payment Terms :
T/T PAYPAL WEST UNION, L/C, MoneyGram, Western Union
Supply Ability :
10000000pcs
Delivery Time :
3-5days
Packaging Details :
Paper box
color :
silvery
warranty :
3 years
OEM :
yes
Packing :
PE bags+ paper box
Description
Feature:

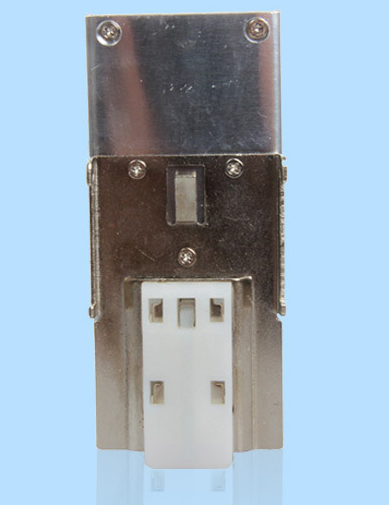

1. DIN-rail specification TS35/ 7.5 or 15
2. Tight structure
3. Short circuit, over load protection
4. 100% full load test
5. LED power indicator
Remarks:
Custom-made specifications are acceptable.
Specification:
Model BDR-120W-12 BDR-120W-15 BDR-120W-24 BDR-120W-48
DC output voltage 12V/ 10A 15V/ 8A 24V/ 5A 48V/ 2.5A
Wave and noise 75mVp-p 75mVp-p 75mVp-p 75mVp-p
Inlet stability + / -0.5% + / -0.5% + / -0.5% + / -0.5%
Load stability + / -1% + / -0.5% + / -0.5% + / -0.5%
Efficiency 80% 81% 84% 85%
Adjustable range for DC voltage + / -10% + / -10% + / -10% + / -10%
AC input voltage range Input voltage: AC110/ 220V+ / -20% selectable by switch
AC inrush current Cold-start current 20A/ 115VAC 40A/ 230V
Overload protection 105% -150% constant current limiting, auto-recovery
Over-voltage protection 120% -140% rated output voltage
Setup rise hold up time 500ms 70ms 30ms 230VAC
Withstand voltage I/ P-O/ P 3KV I/ P-FG: 1.5KV O/ P-FG: 0.5KV 1minute
Isolation resistance IP-O/ P I/ P-FG O/ P-FG: 500VDC/ 100M©
Working temperature -10~ 50º C
Safety standards Design refer to GB4943, UL60950, EN60950
EMC standards Design refer to GB9254, EN55022 Class B
Weight 0.79kg
Size 65.5* 125.2* 100mm
DIN-Rail Switching Power Supply 120W 12V 5V 24V
DIN-Rail Switching Power Supply 120W 12V 5V 24V
DIN-Rail Switching Power Supply 120W 12V 5V 24V
Product Description
DIN-Rail Switching Power Supply 120W 12V 5V 24VDIN-Rail Switching Power Supply 120W 12V 5V 24V

Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .

Credit is the basis , Quality is the first
Power adapter ,Charger ,Power supply Manufacture

Phone : +86 13412619588
Wechat:beryl18
skype:beryl--qin

Email : mx1 AT cctvadapter. com

DIN-Rail Switching Power Supply 120W 12V 5V 24VDIN-Rail Switching Power Supply 120W 12V 5V 24V
