Specifications
Brand Name :
BTB
Model Number :
BTB-S10-5
Certification :
CE FCC UL GS SAA PSE Rohs CCC KC
Place of Origin :
Shenzhen China
MOQ :
100pcs
Price :
0.00
Payment Terms :
T/T L/C WESTER UNIN PAYPAL
Supply Ability :
10000000pcs
Delivery Time :
5-7days
Packaging Details :
Paper box
Description

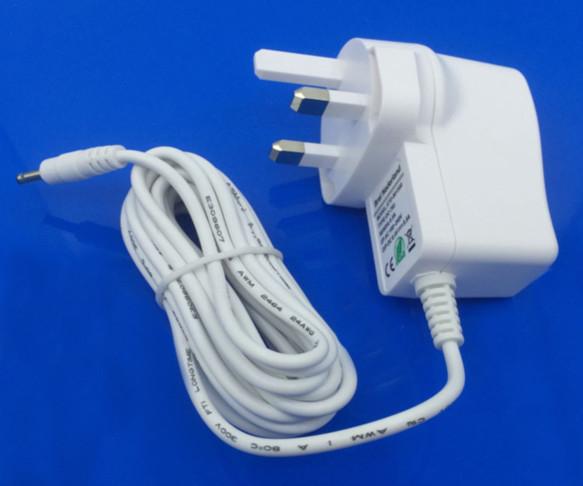

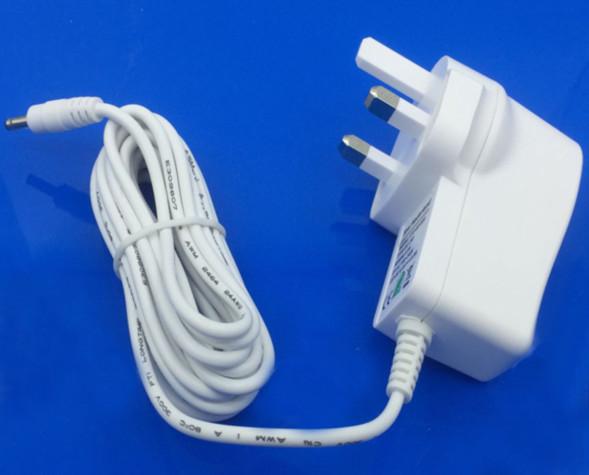

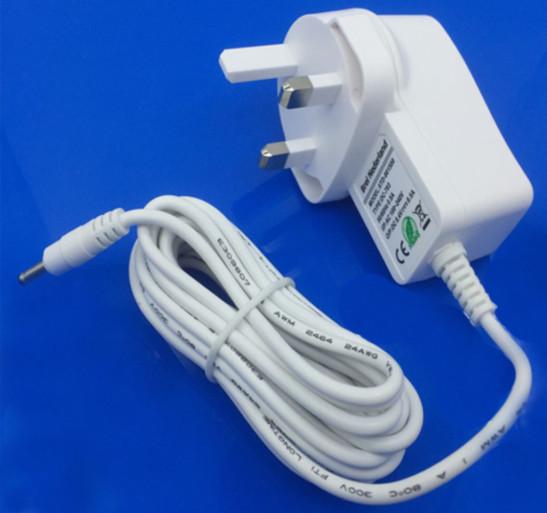

110v-240v white color 5V 2A Power Adapter / AC DC Adapter / AC Power Adapter
  • Item: UL approved AC DC Adapter
  • Input: 90V - 264V AC / 47Hz - 63Hz
  • Output: 12V DC / 100mA - 2000mA
  • Dimension( L x W x H ): 76mm x 43mm x 36mm
  • Safety Approvals: UL/cUL, CE, GS, BS, SAA, CB, FCC
  • EMC standard: EN55022/ EN55024/ EN55013/ EN55020
  • RoHS Compliant power adapter
  • Protection:
    • Short-circuit Protection
    • Over-current Protection
    • Over-voltage Protection
  • LED indicator
  • MTBF( Mean Time Between Failures): 50000 Hours
  • Warranty: 1 year
  • Testing:
    • Burn-in test: 4H x 80-100% rated load @ 40±5°C
    • MTBF: at least 50,000hours @ 25℃, Full load.
    • Height: 1m, the product should be fall off on the 20mm thick hardwood.
    • Average fault-free times under 25°C maximum working load.
    • Average fault-free time 50,000 hours (As per IEC60950 standards)

Data Sheet:

Item UL CE approved AC DC Adapter
Input 90V - 264V AC / 47Hz - 63Hz
Output 5V - 28V DC / 100mA - 2000mA
Dimension( L x W x H ) 150*62.5*34mm / 76*43*36mm / 90*51*58mm
Load Regulation ±5%
Working Efficiency Class V
Ripple/Noise 100mV Min(P-P)
Inrush Current 15A Max @ 115V AC
Line Regulation ±1%
Operating Temperature 0 to 40°C
Storage Temperature -10 to 70°C
DC Jack (Plug) 5.5mm x 2.1mm
5.5mm x 2.5mm
4.0mm x 1.7mm
DC Cable Length 1.5/1.8/2.0/2.5/3.5m
Weight 90g - 350g
Color Black/white

Professional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supplyProfessional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supplyProfessional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supplyProfessional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supplyProfessional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supplyProfessional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supply

Applications:

MP4 players, cell phone charger.

LCD screen, Laptop ,DVR,TVB.

Digital cameras,LED and so on .

Professional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supplyProfessional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supplyProfessional AC/DC power adapter ,12v male female plug adapter, 6v 200ma power supply

Welcome to OEM/ODM

Free sample

Sample time : 3-5days

Delivery time:7-10days

Trade terms: FOB shenzhen

Payment : T/T ,L/C,PAYPAL ,Western Union

All product warranty 3 years(One years damage manufacture one to one exchange.)

Printing you LOGO and stick you modle also ok .

Credit is the basis , Quality is the first

Power adapter ,Charger ,Power supply Manufacture

Skype:beryl--qin

What's app: 86 13412619588

QQ:1767294269

Wechat: beryl18

www.btbadapter.com
