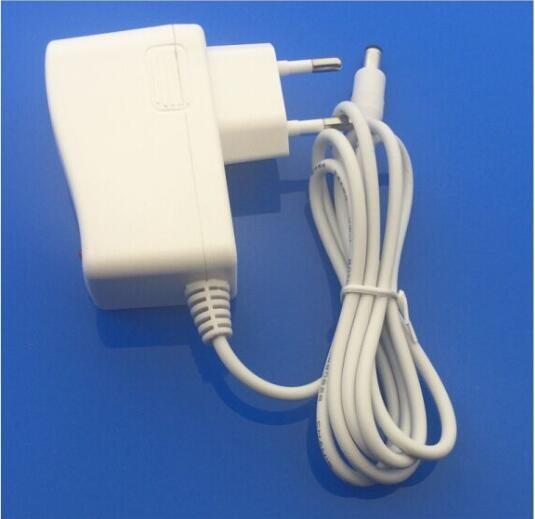

12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply
12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply
12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply
12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply
12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply
12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply
Specifications
Place of Origin :
China
Brand Name :
BTB
Certification :
CE CB UL FCC SAA GS ROHS CCC KC
Model Number :
B-001500200
MOQ :
500PCS
Price :
$1.0-$2.0
Packaging Details :
PE bags + paper box
Delivery Time :
7-10days
Payment Terms :
T/T,L/C,Western union,Cash,Paypal
Supply Ability :
200000pcs/week
Description

12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply

Features :

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage

Coolingbyfreeairconvection

100% full load burn-in test

Fixedswitchingfrequencyat77KHz

2 years warranty

SAFETY & EMC (Note 4)
MODEL btb-12-5 btb-12-12 btb-12-24
OUTPUT DC VOLTAGE 5V 12V 24V
RATED CURRENT 2A 1A 0.4A
CURRENT RANGE 0-2A 0-1A 0-0.4A
RATED POWER 12W 12W 10W
RIPPLE & NOISE (max.) Note.2 50mVp-p 100mVp-p 100mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 11.8 ~ 12.2V 23.8 ~ 24.2V
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% + 1.0%
LINE REGULATION ±0.5% +-0.5% +-0.5%
LOAD REGULATION ±1.0% +-0.5% +-0.5%
SETUP, RISE TIME 200ms 100ms
HOLD UPTIME(Typ.) 30ms
INPUT VOLTAGE RANGE 100 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47~63Hz
EFFICIENCY(Typ.) 65% 68% 72%
AC CURRENT (Typ.) 0.6A/115VAC 0.35A/230VAC
INRUSH CURRENT (Typ.) COLD START 13A/115VAC 25A/230VAC
LEAKAGE CURRENT <0.75mA/ 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type :Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT WORKING TEMP. -10 ~ +60°C (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/°C (0 ~ 50°C)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETYSTANDARDS UL1012, TUV EN60950-1 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC 0/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, 0/P-FG:100M Ohms / 500VDC / 25../ 70% RH
EMC EMISSION Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5, EN55024, light industry level, criteria A
OTHERS MTBF 522.1K hrs min. MIL-HDBK-217F (25) °C
DIMENSION 75*27*40mm (L*W*H)
PACKING 0.065Kg;50pcs/3.3Kg/0.9CUFT
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.

Product Applications

Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.

Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.

Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.

Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.

Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.

Electrical filed series: TV,VCRS,Radio ect.

12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply

Welcome to OEM/ODM

Free sample

Sample time : 3-5days

Delivery time:7-10days

Trade terms: FOB shenzhen

Payment : T/T ,L/C,PAYPAL ,Western Union

All product warranty 3 years(One years damage manufacture one to one exchange.)

Printing you LOGO and stick you modle also ok .

Credit is the basis , Quality is the first

Power adapter ,Charger ,Power supply Manufacture

Skype:beryl--qin

What's app: 86 13412619588

QQ:1767294269

Wechat: beryl18

www.btbadapter.com
