Specifications
Place of Origin :
China
Brand Name :
BTB
Certification :
CE CB UL FCC SAA GS ROHS CCC KC
Model Number :
B-001500200
MOQ :
1000PCS
Price :
4-10
Packaging Details :
standard packing
Delivery Time :
1-3weeks
Payment Terms :
T/T,L/C,Western union,Cash,Paypal
Supply Ability :
3500000
Description

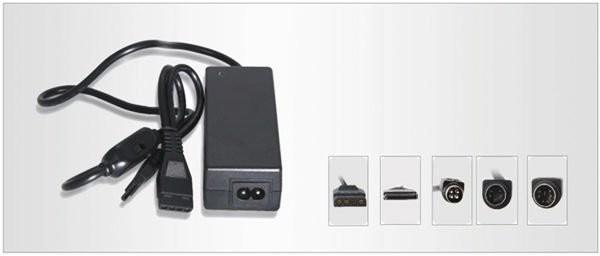

100 240v 50 60hz laptop ac adapter

EMI power adapter 6V 6A 6v 5a 7v 7a 5v 5a 12v 1.5a 12v 3a 12v 6a 12v 5a 12v 8a LED strip camera LCD Laser hair removal machine

welcome to OEM.ODM

Provide Free samples for you test . Pls Contact : Beryl

Skype : beryl--qin

QQ: 1767294269

Wechat : beryl18

What's app : 0086 13412619588

1.INPUT REQUIREMENT
ITEM SPECIFCATION MIN TYP. MAX
NORMAL AC INPUT VOLTAGE SINGLE PHASE 100Vac 110Vac/220Vac 240Vac
AC INPUT VOLTAGE RANGE SINGLE PHASE 90Vac 110Vac/220Vac 264Vac
AC INPUT FREQUENCY SINGLE PHASE 47Hz 50/60Hz 63Hz
AC INPUT CURRENT TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD. 2000mA
AC INRUSH CURRENT TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD , 25℃. 30A
EFFICIENCY TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD 80%
2.OUTPUT SPECIFICATION
ITEM SPECIFCATION MIN TYP. MAX
NORMAL DC OUTPUT VOLTAGE 12.00V
DC OUTPUT VOLTAGE RANGE TYPICAL OUTPUT VOLTAGE ±5% 11.4V 12.6V
LOAD CURRENT RANGE 0.0A 5.0A
PEAK LOAD CURRENT TIME<60S
RIPPLE TYPICAL INPUT VOLTAGE , TYPICAL LOAD CURRENT , 25℃ 120mV
HOLD-UP TIME AT TYPICAL INPUT VOLTAGE AND FULL LOAD 10mS
TURN-ON DELAY TYPICAL INPUT VOLTAGE AND TUP LOAD CURRENT 3S
OVER CURRENT PROTECTION AUTO RECOVERY
SHORT CIRCUIT PROTECTRON THE ADAPTER SHALL NOT DAMAGE BY SHORT THE DC OUTPUT TO GROUND
OVER VOLTAGE PROTECTION


3.MECHANICAL
ITEM SPECIFICATION OR TEST CONDITION ACCEPTANCE CRITERIA
BENDING TEST NORMAL TEMPERATURE NO SHORT CIRCUIT
THE CORD SHALL WITHSTAND WEIGHT OF 200g, SWINGING FROM NO BREAKAGE OF THE CORD
LEFT TO RIGHT AT AN ANGLE OF 60 DEG. 1000CYCLE TIMES MIN.
S/R SHALL WITHSTAND WEIGHT OF 1N. SWINGING FROM LEFT TO
RIGHT AT AN ANGLE OF 60DEG. 1000CYCLE TIMES MIN.
BENDING SPEED 40CYCLE/MINUTE
VIBRATION FREQUENCY RANGE:10~55Hz THERE SHALL BENO
AMPLITUDE:1.5mm ABNORMALITY ON THE
ACCELERATION: 1G APPEARNCE STRUCTURE
SWEEP 1 MINUTE FOR X,Y,Z,AXIS EACH AND OPERATING
4.RELIABILITY
ITEM TEST CONDITION ACCEPTANCE CRITERIA
TEMPERATURE UP WITH TEST AT SURFACE OF THE CASE WITH TYPICAL TEMPERATURE UP UNDER
TYPICAL LOAD AC INPUT AND TYPICAL LOAD IN OUTPUT 35 DEGREES
50/60Hz
HI-POT TEST INPUT TO OUTPUT NO DAMAGE
GRADUALLY RAISED FROM 0 TO THE 2000Vac AND HELD AT THAT VALUE FOR 3S,10mA
MTBF TYPICAL INPUT&FULL LOAD , 25℃ 5000 HOURS
LIFE TYPICAL INPUT&FULL LOAD, 30℃ 1YEARS ABOVE
BURN-IN AT 30℃(±10℃),NORMAL INPUT VOLTAGE 2~4 HOURS
5.ENVIRONMENT
ITEM SPECIFICATION OR TEST CONDITION min. typ. max.
OPERATING TEMPERATURE 0℃ 40℃
STORAGE TEMPERATURE -20℃ 85℃
OPERATING HUMIDITY NON-CONDENSING 5%RH 90%RH
STORAGE HUMIDITY NON-CONDENSING 5%RH 90%RH

Features:

Universal Input: 100-240V AC 50/60Hz

Safety: UL/CUL/TUV/GS/CE/CCC compliance

RoHS Compliance

High efficiency & low power consumption

LED power indicator

Short Circuit Protection

Over Current Protection

Over Voltage Protection

Light Weight & Compact

The commonly used power parameter we can provided.

outputvoltage/power

6W

12W

24W

36W

5V

500mA, 700mA, 800mA, 1A, 1.2A

1.5A, 2A, 2.1A

3A

4A

9V

500mA

1A

2A

3A

10V

500mA

1A, 1.2A

2A

N/A

12V

500mA

800mA,1A

1A, 1.5A, 2A

3A

24V

N/A

500mA

800mA,1A

1.5A

Other output

N/A

N/A

6V 3A

9V 3A

Note: Above for commonly used parameters. Other specifications can be customized.
