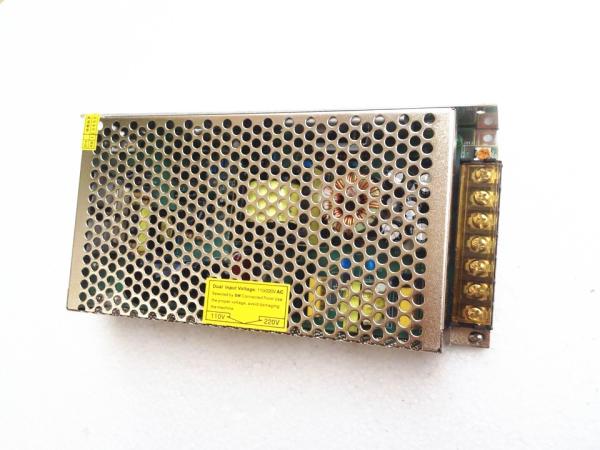

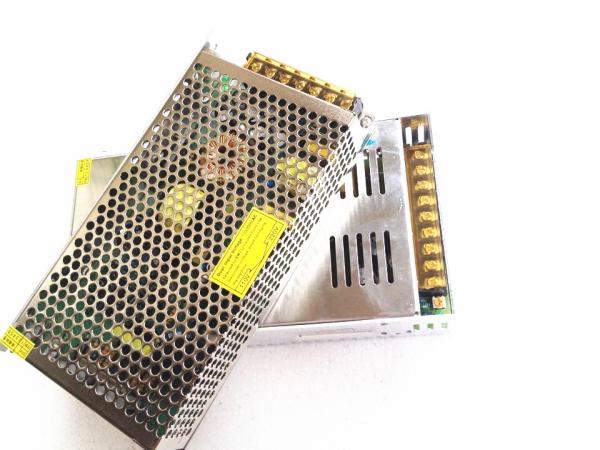

CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
Specifications
Brand Name :
BTB
Model Number :
BTB-150-12
Certification :
CE ,FCC ,CCC,Rohs,EMC,LVD
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100 Piece/Pieces
Price :
$3.0-10.00
Supply Ability :
200000 Piece/Pieces per Week
Packaging Details :
Standard packing,or According to the requirements of customer packaging.
warranty :
3 years
delivery time :
7-10days
sample time :
3-5days
payment terms :
t/t l/c paypal west union
packing :
OEM OR white box
trad terms :
FOB shenzhen
Description

CE ROHS approved Single Output 200W LED power supply 5V 40A ac dc power supply

CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metalCE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metalCE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal

Specifications

Model S-180-5 S-180-12 S-180-24 S-180-48
DC output voltage 5V 12V 24V 48V
Rated output current 36A 15A 7.5A 3.75A
Output current range 0-36A 0-15A 0-7.5A 0-3.75A
Wave and noise 100mVp-p 100mVp-p 150mVp-p 150mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±1% ±0.5% ±0.5% ±0.5%
Efficiency 80% 85% 85% 86%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
AC input voltage range 85~132VAC/176~264VAC selected by switch
Input current 4.5A/115VAC 2.5A/230VAC
AC INnrush current Cold-start current 20A/115V 35A/230V
Over load protection 105%~150% rated output power
Protection:Hiccup mode,recover automatically
Over voltage protection 5.6~6.6V 13.8~16V 27.5V~32V 55~64V
Protection:Shut down output voltage
Setup rise hold up time 200s,100ms,20ms
Withstand voltage I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity -10°C~+60°C,20~90%RH
Overall dimension 199*110*50mm /20pcs per carton
Safety standards Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC standards EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
Weight 0.85Kgs

Specifications

Model S-350-5 S-350-7.5 S-350-12 S-350-13.5 S-350-15 S-350-24 S-350-27 S-350-48
Output DC Voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Rated Current 50A 40A 29A 25.8A 23.2A 14.6A 13A 7.3A
Current Range 0 ~ 50A 0 ~ 40A 0 ~ 12A 0 ~ 13.5A 0 ~ 23.2A 0 ~ 14.6A 0 ~ 13A 0 ~ 7.3A
Rated Power 250W 300W 348W 348.3W 348W 350.4W 351W 350.4W
Ripple & Noise (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p
Voltage Adj. Range 4.5 ~ 5.6V 6~9V 10~13.2V 12 ~ 15V 13.5~18V 20~26.4V 26 ~ 32V 41 ~ 56V
Voltage Tolerance Note.3 ±2.0% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Setup,Rise, Hold time 200ms, 50ms, 20ms at full load
Input Voltage Range 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC
Frequency Range 47~63HZ
Efficiency(Typ.) 73% 76% 74% 79% 78% 81% 82% 83%
AC Current 6.5A/115VAC 4A/230VAC
Inrush Current (max.) 50A/115VAC 50A/230VAC
Leakage Current <3.5mA / 240VAC
Protection Over Load 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage 5.75 ~ 6.75V 9.4 ~ 10.9V 13.8V~16.2V 15.5 ~ 18.2V 18V~21V 27.6V~32.4V 33.7 ~ 39.2V 57.6 ~ 67.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Function Fan on/ off Control RTH3 ≥55°c FAN ON, ≤45°c FAN OFF, ≥80°c output shutdown (5 ~ 7.5V)
RTH3 ≥65°c FAN ON, ≤55°c FAN OFF, ≥80°c output shutdown (12 ~ 15V)
RTH3 ≥70°c FAN ON, ≤60°c FAN OFF, ≥85°c output shutdown (24 ~ 48V)
Environment Working Temperature -10 ~ +50°c (Refer to output load derating curve)
Working Humidity 20~90% RH Non-condensing
Storage temp.& humidity -20~+85°C, 10~95%RH
Temp. coefficient ±0.03%/°C (0~50°C)
Vibration 10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC Withstand Voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Others MTBF 234.3K hrs min. MIL-HDBK-217F ( 25°c )
Dimension 215*115*50mm (L*W*H)
Packing 1.07Kg; 12pcs/13.5Kg/0.92CUFT
Note 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metalCE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal
Product Description
CE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metalCE ROHS approved Single Output 200W LED power supply 5V 40A Industry switching power supply/metal

Welcome to OEM/ODM

Free sample

Sample time : 3-5days

Delivery time:7-10days

Trade terms: FOB shenzhen

Payment : T/T ,L/C,PAYPAL ,Western Union

All product warranty 3 years(One years damage manufacture one to one exchange.)

Printing you LOGO and stick you modle also ok .

Credit is the basis , Quality is the first

Power adapter ,Charger ,Power supply Manufacture

Phone : +86 13412619588

Wechat:beryl18

skype:beryl--qin

www.btbadapter.com
