Specifications
Brand Name :
BTB
Model Number :
BTB-150-12
Certification :
CE ,FCC ,CCC,Rohs,EMC,LVD
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100 Piece/Pieces
Price :
$3.0-10.00
Supply Ability :
200000 Piece/Pieces per Week
Packaging Details :
Standard packing,or According to the requirements of customer packaging.
warranty :
3 years
delivery time :
7-10days
sample time :
3-5days
payment terms :
t/t l/c paypal west union
packing :
OEM OR white box
trad terms :
FOB shenzhen
Description

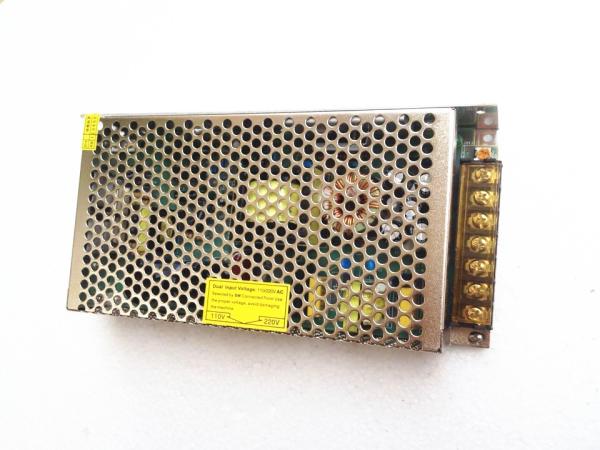

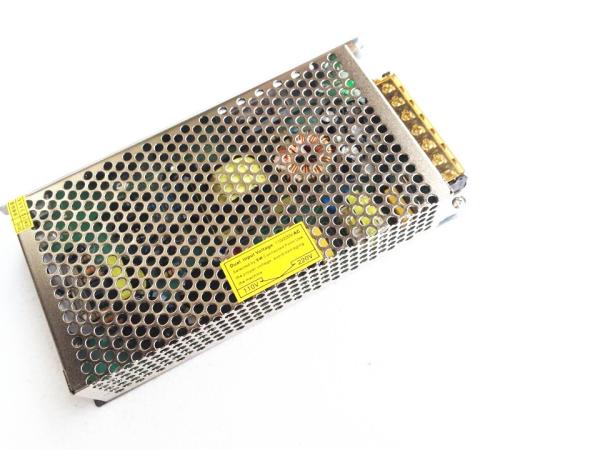

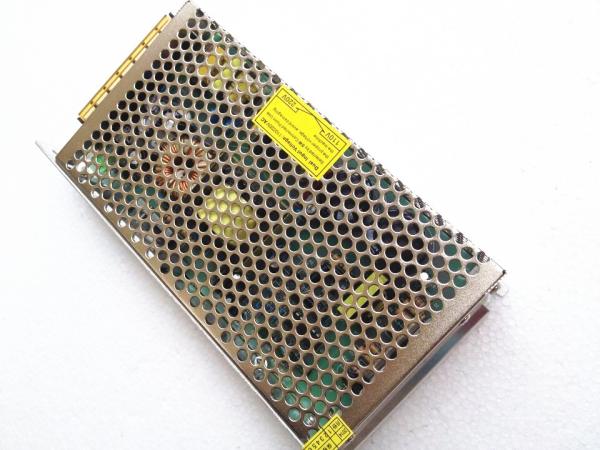

12v 8.3a 100w 110V/220V ac/dc Switching Power Supply CCTV power supply with CE ROHS approved


1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY!

Specifications

MODELS-100-5S-100-7.5S-100-12S-100-15S-100-24S-100-48
OUTPUTDC VOLTAGE5V7.5V12V15V24V48V
RATED CURRENT20A13.6A8.5A6.7A4.5A2A
CURRENT RANGE0 ~ 20A0 ~ 13.6A0 ~ 8.5A0 ~ 6.7A0 ~ 4.5A0 ~ 2A
RATED POWER100W102W102W100.5W108W96W
RIPPLE & NOISE (max)80 mVp-p100mVp-p100mVp-p100mVp-p100mVp-p120mVp-p
VOLTAGE ADJ. RANGE4.75 ~ 5.5V6.75 ~ 8.25V10.8 ~ 13.2V13.5 ~ 16.5V21.6 ~ 26.4V43.2 ~ 52.8V
VOLTAGE TOLERANCE±2.0%±1.0%±1.0%±1.0%±1.0%±1.0%
LINE REGULATION±0.5%±0.5%±0.3%±0.3%±0.2%±0.2%
LOAD REGULATION±0.5%±0.5%±0.3%±0.3%±0.2%±0.2%
SETUP, RISE, HOLD TIME200ms, 80ms, 20ms at full load
INPUTVOLTAGE RANGE85 ~ 132VAC/180 ~ 264VAC selected by switch 255 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY78%80%81%81%84%84%
AC CURRENT2.4A/115VAC 1.2A/230VAC
INRUSH CURRENT (max)COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT<1mA / 240VAC
PROTECTIONOVERLOAD105 ~ 150% rated output power (150 ~ 200% rated output power for S-100-7.5 only)
Protection type : Shut down o/p voltage, re-power on to recover.
ENVIRONMENTWORKING TEMP.-10 ~ +60°C (Refer to output load derating curve)
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20 ~ +85°C ,10 ~ 95% RH
TEMP. COEFFICIENT±0.03%/ (0 ~ 50)
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMCSAFETY STANDARDSDesgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
WITHSTAND VOLTAGEI/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATIONEN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
OTHERSMTBF322.4K hrs min. MIL-HDBK-217F (25)
DIMENSION199*98*38mm (L*W*H)
PACKING0.6Kg; 30pcs/18.8Kg
NOTE1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.


Product Description
cheap s-100-24 power supply 100w LED driver 36v, 13.5v 12 volt power supply led driver, smps power supply setcheap s-100-24 power supply 100w LED driver 36v, 13.5v 12 volt power supply led driver, smps power supply set

cheap s-100-24 power supply 100w LED driver 36v, 13.5v 12 volt power supply led driver, smps power supply setcheap s-100-24 power supply 100w LED driver 36v, 13.5v 12 volt power supply led driver, smps power supply setcheap s-100-24 power supply 100w LED driver 36v, 13.5v 12 volt power supply led driver, smps power supply set
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .

Credit is the basis , Quality is the first
Power adapter ,Charger ,Power supply Manufacture

Phone : +86 13412619588
Wechat:beryl18
skype:beryl--qin

www.btbadapter.com
