24 AWG Solid Copper Conductor UTP CAT5E with PVC Jacket for Security Camera
24 AWG Solid Copper Conductor UTP CAT5E with PVC Jacket for Security Camera
Specifications
Place of Origin :
China
Brand Name :
KINGTONE OR OEM
Certification :
CE,RoHS, VDE,UL,CUL,LPCB
Model Number :
UTP CAT 5e 4Pairs Copper
MOQ :
30 KM
Packaging Details :
1000FT, Pull Box, Wooden Spool, Pallet
Delivery Time :
15 Days
Payment Terms :
T/T, L/C
Supply Ability :
50*20’GP / Month
Conductor :
Bare Copper
Insulation :
HDPE
Shield :
PET / AL-Foil
Jacket :
PVC
Color :
Blue, Grey, Black
Package :
1000FT, Pull Box, Wooden Spool, Pallet
Description

24 AWG Solid Copper Conductor UTP CAT5E with PVC Jacket for Security Camera

Quick Detail:

  • UTP CAT5E
  • Security Camera Cable
  • IP Cable
  • 4 Pairs
  • 24 AWG Soild Copper Conductor
  • PVC Jacket
  • Defined in ANSI/TIA/EIA-568-A, with clarification in TSB-95
  • 1000FT, Pull Box, Wooden Spool, Pallet
  • MOQ: 30.5KM

Description:

KINGTONE NETCONNECT Enhanced Category 5 (Cat5e) U/UTP cables exceed TIA/EIA-568-B.2,

ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173

performance requirements, providing extra headroom for a more robust cabling system.

They comply with all of the performance requirements for current and proposed applications

such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,

100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and

analog and digital voice (VoIP) and VoIP Camera application.

The cable is available in white, gray, blue and yellow, and packaged as wooden reels,

reelin- box and pull box.

KINGTONE using best raw material and best worker to produce UTP CAT 5e to meet

high performance in practical application.

Because of good managing methods, KINGTONE’S price of UTP CAT 5e is not high

although our quality is really high.

KT0251 UTP CAT 5E Security Camera Cable 4 Pairs 24 AWG Solid Copper PVC
Application & Industry Standard:
10 Base-T(IEEE 802.3),4/16 Mbps Token Ring (IEEE 802.5),100BASE-VG-AnyLAN
100 Mbps TP-PMD(ANSI X3T9.5),TIA/EIA-568-B.2 , ISO.IEC 11801 Class D
IEC61156-5, IEC60332-1, EN50288, EN50173-1
Construction
Center conductor 0.50mm Solid Bare Copper
Number of Conductor 8 (4 Pairs)
Insulation 0.89 ± 0.01mm HDPE
Average Thickness 0.20 ± 0.03 mm
Rip Cord Yes
Outer jacket 5.0±0.3mm PVC Grey (Inquired by customer)
Insulation colors Blue,White/Blue
Orange,White/Orange
Green,White/Green
Brown,White/Brown
Electrical Characteristics at 20 °C
Impedance 100 ± 15 Ω
DC resistance(max) 8.9 Ω/100m @20℃
Mutual capacitance(max) 5.6 pF/100m @1kHz
Delay Skew 45
Voltage 300 Volts AC or DC
Mechanical Characteristics at 20 °C
Propagation Delay(max) 540 ns@10MHZ
Min.Bending radius 4×outside diameter of Jacket
Operating Temperature -20 ℃ to 60℃
Performance Characteristics
Frequency Attenuation (Max.) NEXT (Min.) PS-NEXT ELFEXT PS-ELFEXT Return Loss
1 MHz 1,9 dB/100m 66 dB 63 dB 64 dB 61 dB 20 dB
10 MHz 6,3 dB/100m 51 dB 48 dB 47 dB 44 dB 23 dB
16 MHz 8,0 dB/100m 48 dB 45 dB 44 dB 41 dB 25 dB
20 MHz 9,9 dB/100m 46 dB 43 dB 42 dB 39 dB 25 dB
40 MHz 12,8 dB/100m 44 dB 41 dB 34 dB 31 dB 23 dB
60 MHz 16,0 dB/100m 42 dB 39 dB 28 dB 25 dB 22 dB
100 MHz 21,0 dB/100m 36 dB 33 dB 25 dB 22 dB 21 dB
* PVC – Polyvinylchlorid * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene
Order Informations:
Marking KINGTONE KT0251 UTP CAT 5e 4Pairs Copper XXX M/FT

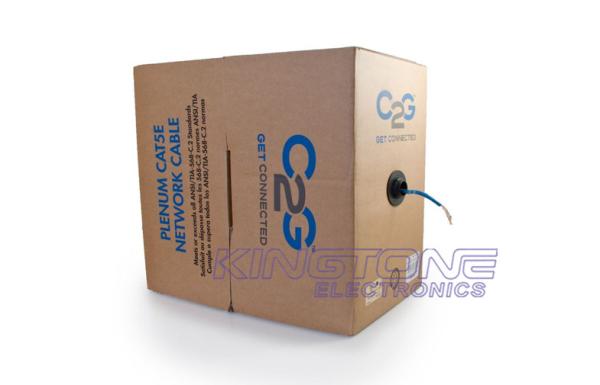

Package 305M/1000FT Pull Box/Pallet (or Per customer's request)
Delivery time Normally 15 days after received the deposit.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
