RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding
RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding
RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding
RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding
RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding
RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding
RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding
RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding
Specifications
Place of Origin :
China
Brand Name :
KINGTONE OR OEM
Certification :
ISO, CE, RoHS, UL
Model Number :
RG 174 Coaxial Cable
MOQ :
10 KM
Packaging Details :
100M, 200M, 300M, Plastic / Wooden Spool, Carton
Delivery Time :
Normally 15 days
Payment Terms :
T/T, L/C
Supply Ability :
50*20’GP / Month
Conductor :
Stranded Bare Copper
Dielectric :
Solid PE
Shield :
Tinned Copper Braiding
Jacket :
PVC
Color :
Black
Package :
100M, 200M, 300M, Plastic / Wooden Spool, Carton
Description

RG 174 Coaxial Cable 7 × 0.17mm Copper Conductor with 95% Tinned Copper Braiding

Quick Detail:

  • RG 174 Coaxial Cable
  • 7×0.17mm Bare Copper
  • 1.52mm Solid PE
  • 1.90mm Tinned Copper
  • 2.79mm PVC
  • 100M, 200M, 300M, Plastic / Wooden Spool, Carton
  • MOQ: 10KM

Description:

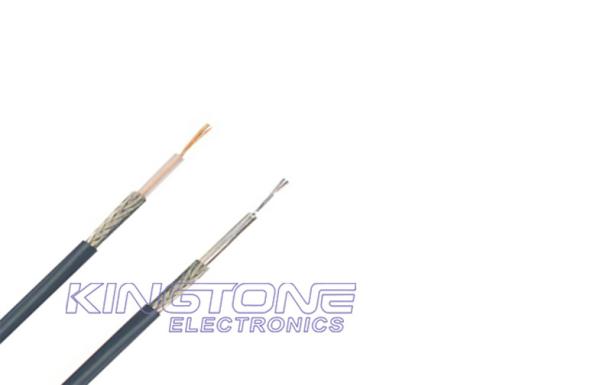

KT0404 RG 174 Coaxial Cable, 7 × 0.17mm Copper Conductor, 1.52mm Solid PE, 95% TC Braiding

Coaxial cable, or coax is a type of cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. Many coaxial cables also have an insulating outer sheath or jacket. The term coaxial comes from the inner conductor and the outer shield sharing a geometric axis.
Coaxial cable was invented by English engineer and mathematician Oliver Heaviside, Coaxial cable differs from other shielded cable used for carrying lower-frequency signals, such as audio signals, in that the dimensions of the cable are controlled to give a precise, constant conductor spacing, which is needed for it to function efficiently as a radio frequency transmission line.
Applications:

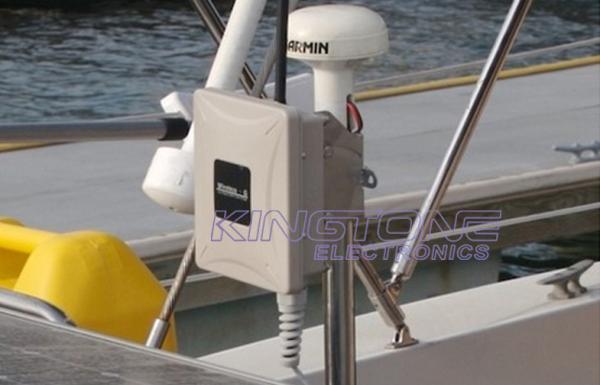

RG series cable originally created to support WWII military application. These cable quickly became the products of choice for commercial wireless applications once they hit the surplus market, such as microwave systems,military aerospace, military ground-based communication systems...

KT0404 RG 174 Coaxial Cable, 7 × 0.17mm Copper, 1.52mm Solid PE, 95% TC Braiding

Construction Parameters:
Inner Conductor 7×0.17mm Bare Copper/Copper Clad Steel
Dielectric 1.52mm Solid PE
Shield Nom. 1.90mm Tinned Copper
Jacket 2.79mm PVC (Color by your choise)
Electrical Characteristics:
Capacitance 101.05 pF/m
Impedance 50 Ω
Velocity of Propagation 0.66
Max Operating Voltage(KVMS) 1.1
Operating Temp Range (PVC) -25 ℃ to 70℃
RoHS YES
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
100 27.60
400 55.80
1000 89.90
Order Informations:
Marking KINGTONE RG 174 COAXIAL CABLE XXX M
Inner Package 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
Outer Package Carton, Color Box, Pallet (or Per customer's request)
Delivery time Normally 15 days after received the deposit.
More informations please contact with us.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
