USB 3.0 Copper conductor for silver-plated or tinner-plated
USB 3.0 Copper conductor for silver-plated or tinner-plated
Specifications
Place of Origin :
China
Brand Name :
KINGTONE OEM
Certification :
CE,RoHS,VDE,UL,CUL,LPCB
Model Number :
KT2150 USB 3.0
MOQ :
3OKM
Packaging Details :
500FT/1000FT Plastic/Wooden Spool
Delivery Time :
Normally 15 days
Payment Terms :
T/T,L/C
Supply Ability :
50*20’GP/Month
Description

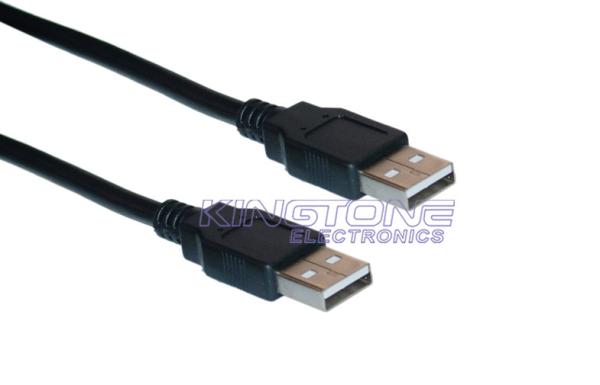

KT2150 USB 3.0 Copper conductor for silver-plated or tinner-plated

Quick Detail:

USB 3.0 Cable

Copper conductor for silver-plated or tinner-plated

Insulation 1 HD-PE Insulation
Insulation 2 PVC or free PVC matter Insulation
Shield 1 Aluminum Mylar Shield
Shield 2 Braid shield with Quad-shielding
The jacket for flexible PVC or free PVC matter
Description:
KT2150 USB 3.0 Copper conductor for silver-plated or tinner-plated
USB cable have a desigh of backward compliant to lower USB standard. Pair-shieldis designed to satisfy the application of high-speed transmission under minimum EMIimpact to ensure the integrity of signals in transmission. USB3.0 patch cord have its advantages of ultra-fast transmission speed,ease of use and high compatibility. Meanwhile, this cable is also prepared and supporting for the future optical fiber transmission.
Application:
High-resolution web camera, video monitor, video display, digital cameras, digital Blu-ray video cameras and other modern electronic devices.
KT2150 USB 3.0
Copper conductor for silver-plated or tinner-plated
Characteristics:
1.USB 3.0 cable offers a durable high quality connection.
2.Fast transfer speeds between storage devices and peripherals.
3.Transfer rate up to 10 times faster than USB 2.0 version and has been dubbed
the SuperSpeed USB Offers a throughput of up to 4.8Gbps when used with a
USB 3.0 host and device-an astounding 20X the capability of USB 2.0 (480 Mbps).
4.Features high quality Shielded Twisted Pair (STP) construction,helping to
prevent electro-magetic interference and ensuring reliable data communication.
5.Sync-N-Go technology that minimizes user waiting-time.
6.Provides Optimized Power Efficiency.No device polling and lower active and
idle power requirements.
7.Cable is backwards compatible with USB 2.0.
Construction :
Inner Conductor Copper conductor for silver-plated
or tinner-plated
Insulation 1 HD-PE Insulation
Insulation 2 PVC or free PVC matter Insulation
Shield 1 Aluminum Mylar Shield
Shield 2 Braid shield with Quad-shielding
Jacket The jacket for flexible PVC or free PVC matter
Description AWG OD Connector
USB 3.0 Cable 30/28 7/0.10 Al/My+Braid 5 USB 3.0 A Male-A Male
USB 3.0 A Male-B Male
USB 3.0 A Male-A Female
USB 3.0 A Male-Micro USB
28/28 7/0.127 5.5
7/0.127
28/26 7/0.127 6
7/0.16
28/24 7/0.127 6.2
7/0.20
Order Informations:
Marking KINGTONE KT0300 USB 3.0 CABLE XXX M/FT
Package 100m/Roll, 100m/Spool,305m/Spool,Pallet
Delivery time Normally 15 days after received the deposit.
More informations please contact with us.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A,Incoming material inspected by QC.

B,Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E:5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product and final product according to the specification or test procedure.

2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE

3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
