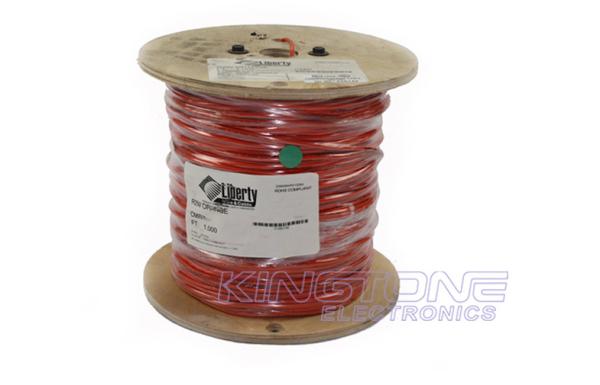

4 Conductor Fire Alarm System Cable 14 AWG Plenum for Security System
4 Conductor Fire Alarm System Cable 14 AWG Plenum for Security System
Specifications
Place of Origin :
China
Brand Name :
KINGTONE or OEM
Certification :
ISO, CE, RoHS, UL
Model Number :
FPLP 14AWG Fire Alarm Cable
MOQ :
30KM
Packaging Details :
500FT, 1000FT, Wooden Spool, Carton
Delivery Time :
15 Days
Payment Terms :
T/T, L/C
Supply Ability :
50*20'GP
Conductor :
Bare Copper
Insulation :
FPLP-PVC
Shield :
PET / AL-Foil
Jacket :
FPLP-PVC
Color :
Red
Package :
500FT, 1000FT, Wooden Spool, Carton
Description

4 Conductor Fire Alarm System Cable 14 AWG Plenum for Security System

Quick Details

  • FPLP 14 AWG Fire Alarm Cable
  • Solid Copper Conductor
  • Unshielded types: 4C
  • Shielded types: 2C/4C
  • Plenum PVC Jacket
  • 500FT, 1000FT, Wooden Spool, Carton
  • Fire Power Limited Cable

Description

KINGTONE ELECTRONICS is the leading manufacturer of fire alarm system cables for the fire protection industry. Our innovative product line includes all power-limited cables for use in the NEC Article 760.
NATIONAL ELECTRIC CODE (NEC) ARTICLE 760: NEC Article 760 covers the installation of wiring and equipment of fire alarm systems,including all circutis controlled and powered by the fire alarm system.
These systems are defined in the NEC as " The portion of wiring system between the load side of the overcurrent devices or the power-limited supply and the connected equipment of all circuits powered
and controlled by the fire alarm system."
Type FPLP-FPLP power-limited fire alarm cable is listed by the NEC as being suitable for usein ducts,
plenums and other space used for enviromental air. All FPLP cable are listed as having adequate
fire resistant and low-smoke producing characteristics and must pass both UL 1424
and UL stiener tunnel test 910
KT1429 Fire Alarm Cables 14 AWG FPLP-CL2P PVC Insulation Plenum
Application
Indoor for:
Audio Circuits
Control Circuits
Initiating Circuits
Notification Circuits
Properties
Temperature Rating: '-20 to 75℃
Operating Voltage: 300 Volts max.
Flame Rating: UL 910,NFPA 262,C(UL) FT6
Insulation & Jacket: Plenum PVC
Unshielded types
Conductors NOM.THICKNESS(MM) Nominal0.D. Capacitance Impedance DC Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
4 14 AWG 0.007" 0.016" 0.246" 32 59 2.5
Shielded types
Conductors NOM.THICKNESS(MM) Nominal0.D. Capacitance Impedance DC Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
2 14 AWG 0.010" 0.016" 0.208" 69 30 2.5
4 14 AWG 0.010" 0.016" 0.247" 69 30 2.5
Drain Wire 18 AWG Solid Tinned-Copper
Shield 0.001" thick Aluminum/Mylar
Color
Number Description
2 Blk,Red
4 Blk,Red,Ylw,Grn
Order Informations:
Print KINGTONE KT1429 ×C14 E×××××××(UL) FPLP OR CL2P C(UL)US FT6 SUN RES(ROHS) ××××FT
DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9
Packing 1000FT/Pull Box, 1000FT/Spool, Pallet

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
