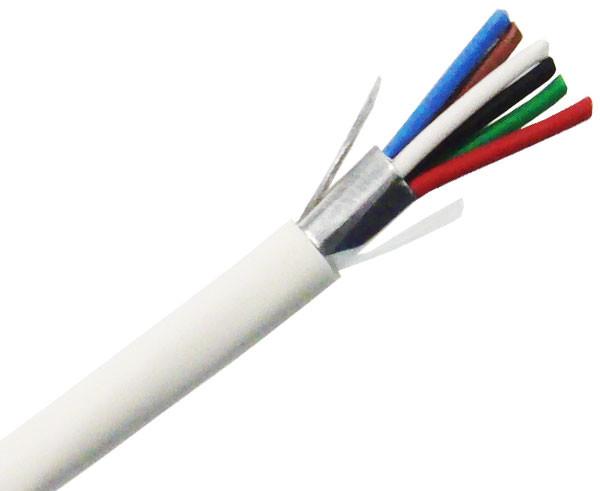

Shielded 0.28mm2 Security Alarm Cable Solid Bare Copper Conductor for Intercoms
Shielded 0.28mm2 Security Alarm Cable Solid Bare Copper Conductor for Intercoms
Shielded 0.28mm2 Security Alarm Cable Solid Bare Copper Conductor for Intercoms
Shielded 0.28mm2 Security Alarm Cable Solid Bare Copper Conductor for Intercoms
Specifications
Place of Origin :
China
Brand Name :
ZION OR OEM
Certification :
CE, RoHS, UL
Model Number :
Security Alarm Cable 0.28mm2 Shielded
MOQ :
30 KM
Packaging Details :
100M Paper Reel, 300M Wooden Spool, Carton
Delivery Time :
Normally 20 days
Payment Terms :
T/T, L/C
Supply Ability :
3000 KM / Month
Conductor :
Solid Bare Copper
Insulation :
High Quality PVC
Shield :
PET / AL-Foil
Drain Wire :
Solid Bare Copper
Rip Cord :
Yes
Jacket :
High Quality PVC
Color :
White
Package :
100M Paper Reel, 300M Wooden Spool, Carton
Description

Shielded 0.28mm2 Security Alarm Cable Solid Bare Copper Conductor for Intercoms

Quick Detail:

  • Security Alarm Cable
  • Solid Copper Conductor
  • Solid Copper Clad Aluminum Conductor
  • High Quality PVC Insulation
  • High Quality PVC (RoHS) Flame Retardant, Jacket, White
  • 100M Paper Reel, 300M Wooden Spool, Carton
  • Installing Surveillance Cameras in CCTV Systems
  • ISO, CE, UL, RoHS

Description:

Alarm Cable use conductor of Solid CU / CCA, mainly packed in 100M Paper Reel.
Alarm cable jacket color normally is white. Unlike audio/visual or networking cables,
most alarm wire technology has not changed in decades even with advances in alarm systems
and their associated detection devices. This being said,the wiring that goes into an alarm
system is as critical as any wire can be. Fire and security alarm cable provides the basic
framework upon which all of a building's asset protection is based.
ZION using best raw material and best worker to produce shielded and unshielded Alarm Cable
to meet high performance in practical application.

Applications:

Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.

Shielded 0.28mm2 Security Alarm Cable Solid Bare Copper Conductor for Intercoms
Construction
Conductor 0.60mm TC/BC/CCA/TCCA
Shielded PET/AL-FOIL
Insulation 0.95mm PVC
Drain Wire TC/BC/CCA/TCCA
Rip Cord Cotton Wire
Outer jacket PVC(RoHs) flame retardant
Structure of 0.28mm2 soft alarm cable
Serial No. Section Specification Overall Diameter(mm)
E-01 2*0.28mm2 4*1/0.60 4.40
E-02 4*0.28mm2 6*1/0.60 5.10
E-03 6*0.28mm2 8*1/0.60 5.40
E-04 8*0.28mm2 10*1/0.60 6.20
E-05 10*0.28mm2 12*1/0.60 6.50
E-06 12*0.28mm2 14*1/0.60 6.90
E-07 16*0.28mm2 20*1/0.60 8.10
E-08 24*0.28mm2 30*1/0.60 9.70
F-01 2*0.28mm2 2*1/0.60 3.80
F-02 4*0.28mm2 4*1/0.60 4.50
F-03 6*0.28mm2 6*1/0.60 4.80
F-04 8*0.28mm2 8*1/0.60 5.60
F-05 10*0.28mm2 10*1/0.60 5.90
F-06 12*0.28mm2 12*1/0.60 6.30
F-07 16*0.28mm2 16*1/0.60 7.50
F-08 24*0.28mm2 24*1/0.60 9.10
G-01 2*0.28mm2 2*1/0.60 3.70
G-02 4*0.28mm2 4*1/0.60 4.40
G-03 6*0.28mm2 6*1/0.60 4.70
G-04 8*0.28mm2 8*1/0.60 5.50
G-05 10*0.28mm2 10*1/0.60 5.80
G-06 12*0.28mm2 12*1/0.60 6.20
G-07 16*0.28mm2 16*1/0.60 7.40
G-08 24*0.28mm2 24*1/0.60 9.00
Order Informations:
Marking ZION 0.28mm2 Unshielded Alarm Cable XXX M (or Per customer's request)
Inner Package

100M Paper Reel, 300M Wooden Spool

(or Per customer's request)
Outer Package Carton, Color Box, Pallet (or Per customer's request)
Delivery time Normally 20 days after received the deposit.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and ZION.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery

Shielded 0.28mm2 Security Alarm Cable Solid Bare Copper Conductor for Intercoms
