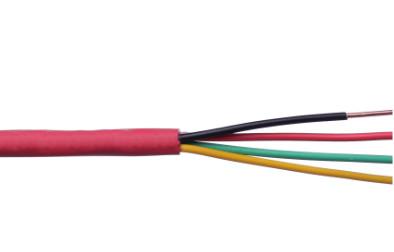

18 AWG 4 Cores Unshielded FPLR Fire Alarm Cable for Audio & Control Circuits
18 AWG 4 Cores Unshielded FPLR Fire Alarm Cable for Audio & Control Circuits
18 AWG 4 Cores Unshielded FPLR Fire Alarm Cable for Audio & Control Circuits
18 AWG 4 Cores Unshielded FPLR Fire Alarm Cable for Audio & Control Circuits
Specifications
Place of Origin :
CHINA
Brand Name :
KINGTONE or OEM
Certification :
ISO, CE, RoHS, UL
Model Number :
FPLR 18AWG Shielded & Unshielded
MOQ :
30 KM
Packaging Details :
500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time :
Normally 25 days
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Conductor :
Solid Bare Copper
Insulation :
FPLR-PVC
Jacket :
FPLR-PVC
Color :
Red
Package :
500FT, 1000FT, Plastic / Wooden Spool, Carton
Description

18 AWG 4 Cores Unshielded FPLR Fire Alarm Cable for Audio & Control Circuits

Quick Details

  • Power Limited Fire Alarm Cable
  • 18 AWG, FPLR-CL2R
  • Solid Bare Copper Conductor
  • Unshielded types: 2C / 4C / 6C / 10C
  • Shielded types: 2C / 4C / 6C / 8C
  • Shielded with PET / AL-Foil
  • Tinned Copper Drain Wire
  • FPLR-CL2R PVC Jacket
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton

Description

ZION is the leading manufacturer of fire alarm system cables for the fire protection industry. Our innovative product line includes all power-limited cables for use in the NEC Article 760.
NATIONAL ELECTRIC CODE (NEC) ARTICLE 760: NEC Article 760 covers the installation of wiring and equipment of fire alarm systems,including all circutis controlled and powered by the fire alarm system.
These systems are defined in the NEC as " The portion of wiring system between the load side of the overcurrent devices or the power-limited supply and the connected equipment of all circuits powered
and controlled by the fire alarm system."
Type FPLR-CL2R Power Limited Fire Alarm Riser cable is listed as being suitable for use in a vertical run
in a shaft or from floor to floor.All FPLR cables are listed as having fire-resistantcharacteristics capable of preventing fire from traveling from floor to floor.Riser cables must pass both UL test 1424
and the Vertical riser test UL 1666.
KT1422 Fire Alarm Cables 18AWG FPLR-CL2R PVC Insulation Non-Plenum PVC Jacket
Application
Indoor for:
Audio Circuits
Control Circuits
Initiating Circuits
Notification Circuits
Properties
Temperature Rating: '-20 to 75℃
Operating Voltage: 300 Volts max.
Flame Rating: UL 1666(Riser),C(UL)FT4
Insulation & Jacket: PVC
Unshielded types
Conductors NOM.
THICKNESS
(MM)		 Nominal
0.D. 		Capacitance Impedance DC
Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
2 18 AWG 0.006" 0.015" 0.136" 21 75 6.5
4 18 AWG 0.006" 0.015" 0.174" 21 75 6.5
6 18 AWG 0.006" 0.015" 0.187" 21 75 6.5
10 18 AWG 0.006" 0.015" 0.244" 18 75 6.5
Shielded types
Conductors NOM.
THICKNESS
(MM)		 Nominal
0.D. 		Capacitance Impedance DC
Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
2 18 AWG 0.006" 0.015" 0.138" 42 36 6.5
4 18 AWG 0.006" 0.015" 0.163" 42 36 6.5
6 18 AWG 0.006" 0.015" 0.196" 42 36 6.5
8 18 AWG 0.006" 0.015" 0.212" 42 36 6.5
Drain Wire 22 AWG Solid Tinned-Copper
Shield 0.001" thick Aluminum/Mylar
Color
Number Description
4 Blk,Red,Ylw,Grn
6 Blk,Red,Ylw,Grn,Brn,Blu
8 Blk,Red,Ylw,Grn,Brn,Blu,Ppl,Pnk
10 Blk,Red,Ylw,Grn,Brn,Blu,Ppl,Pnk,Tan,Org
Order Informations:
Print

ZION KT1422 ×C18 E×××××××(UL) FPLR OR CL2R C(UL)US FT4 SUN RES(ROHS)

××××FT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9

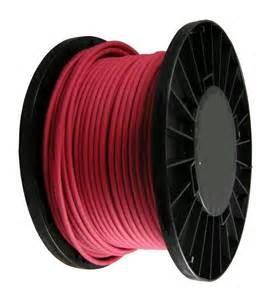

Packing 500FT, 1000FT, Plastic / Wooden Spool, Carton

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and ZION.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery

18 AWG 4 Cores Unshielded FPLR Fire Alarm Cable for Audio & Control Circuits
