1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection
1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection
1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection
1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection
1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection
1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection
Specifications
Place of Origin :
CHINA
Brand Name :
HELLOSIGNAL® OR OEM
Certification :
UL, ETL, CE, CPR, RoHS
Model Number :
Low Loss 300 Coaxial Cable
MOQ :
10 KM
Packaging Details :
500M or 1000M, Wooden Spool, Pallet
Delivery Time :
Normally 25 days
Payment Terms :
T/T, L/C
Supply Ability :
500KM / Month
Conductor :
Bare Copper
Dielectric :
Foamed PE
1st Shield :
Bonded AL-Foil
2nd Shield :
Tinned Copper Braid
Jacket :
PE
Color :
Black
Package :
500M, 1000M, Wooden Spool, Pallet
Description

1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection

Quick Detail:

  • Low Loss 300
  • 50 Ohm Coaxial Cable
  • 1.78mm Bare Copper
  • Bonded AL-Foil
  • Tinned Copper Braiding
  • 7.62mm PE Jacket
  • Designed for Flexibility, Low Loss, RF Shielding
  • 500M or 1000M, Wooden Spool, Pallet
  • MOQ: 10KM

Description:

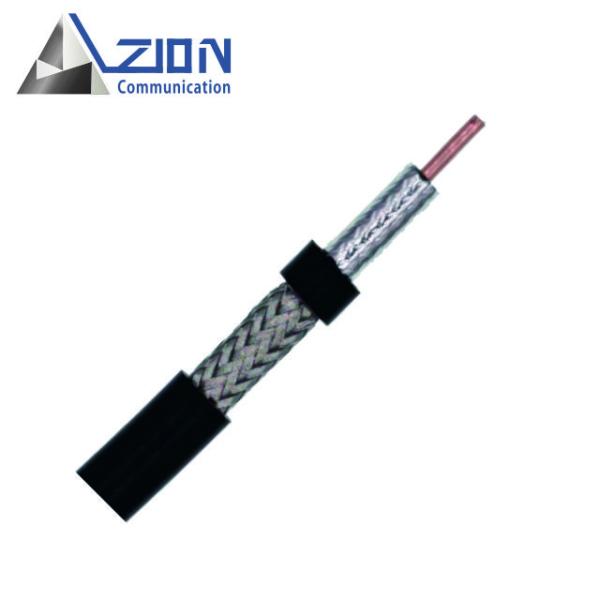

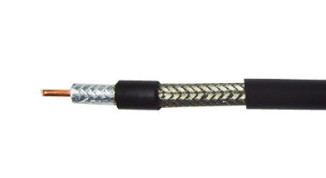

KT0504 Low Loss 300 1.78mm Bare Copper Conductor with PE Jacket for Antenna Connection

is a low loss, braided coaxial cable offers similar performance compared to corrugated

copper products but with higher flexibility and simplified connectorization.

Can be used in almost any application where handling characteristics, improved shielding

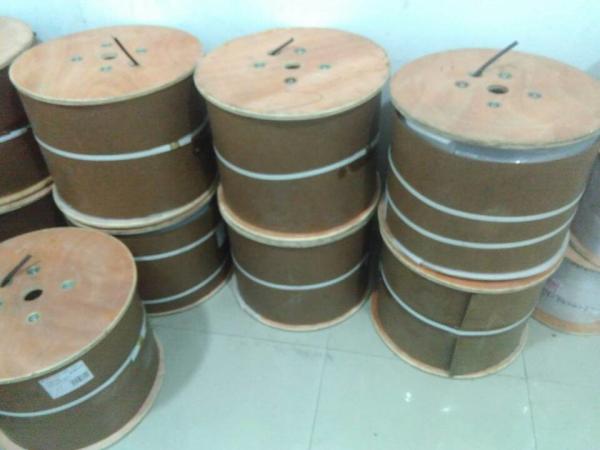

and low loss is required. LLC 300 is packed in 500M/1000M Wooden Spool,

and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, ZION’S price of 300 is not high although our quality is really high.

Applications:

Low loss at high frequency for radiocommunication and amateur radio.

KT0504 1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection

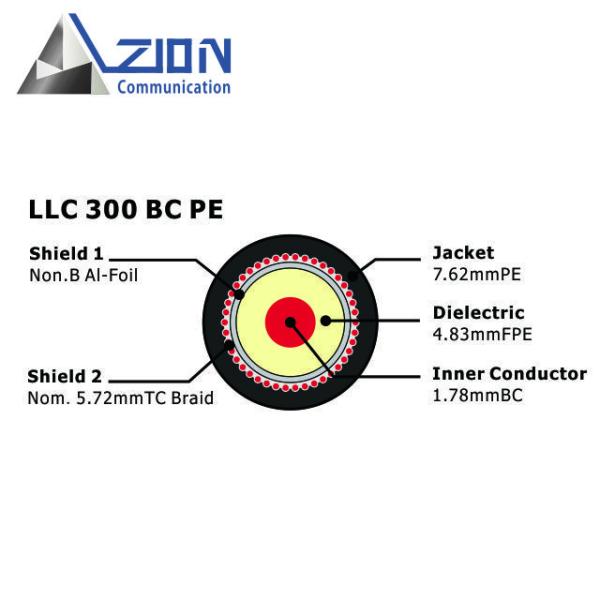

Construction Parameters:
Inner Conductor 1.78mm Bare Copper
Dielectric 4.83mm Foamed PE
First Shield Bonded AL-Foil
Second Shield Nom. 5.72mm Tinned Copper Braid
Jacket 7.62mm PE
Electrical Characteristics:
Capacitance 79.1 pF/m
Impedance 50 Ω
Velocity of Propagation 0.85
Shielding Effectiveness(>dB) 90
Min.Bend Radius(mm) 38
Operating Temp Range (PVC) -25 ℃ to 70℃
Operating Temp Range (PE) -40 ℃ to 80℃
RoHS YES
Attenuation(20℃):
Frequency (MHZ) Attenuation (dB/100m) Avg.Power(KW)
30 3.5 1.78
50 4.5 1.38
150 7.9 0.79
220 9.6 0.65
450 13.8 0.45
900 19.9 0.31
1500 26.0 0.24
1800 28.7 0.22
2000 30.3 0.21
2500 34.2 0.18
5800 54.3 0.11
Order Informations:
Marking ZION LLC 300 COAXIAL CABLE xx M
Inner Package 500M or 1000M Wooden Spool
Outer Package Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
More informations please contact with us.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and ZION.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery

1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection
