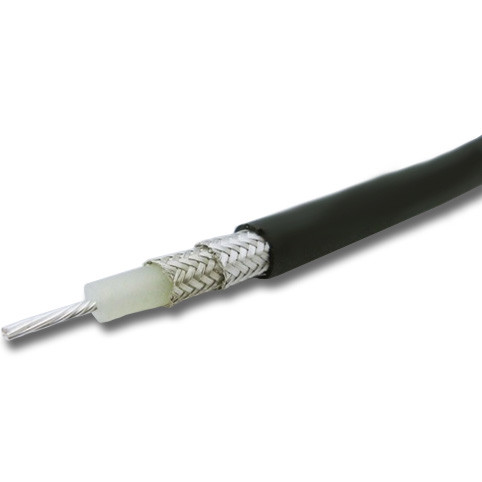

RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
Specifications
Place of Origin :
CHINA
Brand Name :
HELLOSIGNAL® OR OEM
Certification :
UL, ETL, CE,CPR, RoHS
Model Number :
RG214 Coaxial Cable
MOQ :
3 KM
Packaging Details :
100M, 300M, Wooden Spool, Carton
Delivery Time :
Normally 25 days
Payment Terms :
T/T, L/C
Supply Ability :
100KM / Month
Conductor :
Stranded Silver Plated Copper
Dielectric :
Solid PE
Shield :
Double Silver Plated Copper Braiding
Jacket :
High Quality PVC
Color :
Black
Package :
100M, 300M, Wooden Spool, Carton
Description

RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm

Quick Detail:

  • RG214 Coaxial Cable
  • 7 × 0.752mm Silver Plated Copper
  • 7.24mm Solid PE
  • 8.40mm Double Silver Plated Copper Braiding
  • 10.80mm PVC
  • 100M, 300M, Wooden Spool, Carton
  • MOQ: 3 KM

Description:

KT0409 RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm

Coaxial Cable, or coax is a type of cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. Many coaxial cables also have an insulating outer sheath or jacket. The term coaxial comes from the inner conductor and the outer shield sharing a geometric axis.
Coaxial cable was invented by English engineer and mathematician Oliver Heaviside, Coaxial cable differs from other shielded cable used for carrying lower-frequency signals, such as audio signals, in that the dimensions of the cable are controlled to give a precise, constant conductor spacing, which is needed for it to function efficiently as a radio frequency transmission line.
Applications:
RG series cable originally created to support WWII military application. These cable quickly became the products of choice for commercial wireless applications once they hit the surplus market, such as microwave systems,military aerospace, military ground-based communication systems...

KT0409 RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm

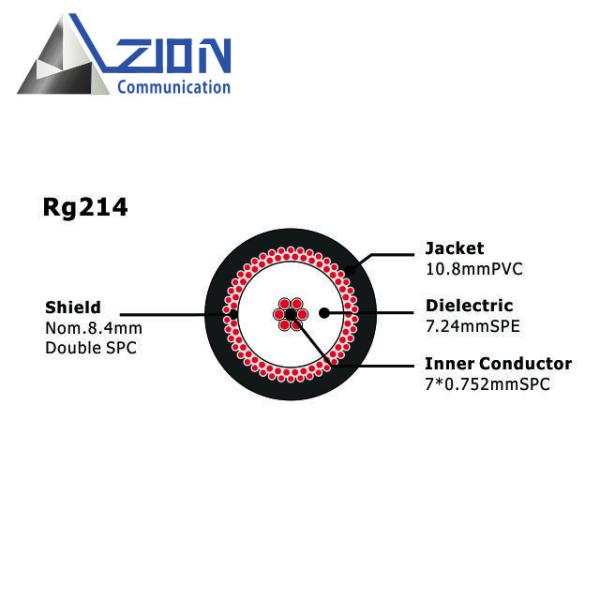

Construction Parameters:
Inner Conductor 7×0.752mm Silver Plated Copper
Dielectric 7.24mm Solid PE
Shield Nom. 8.40mm Double Silver Plated Copper
Jacket 10.80mm PVC (Color by your choise)
Electrical Characteristics:
Capacitance 101.05 pF/m
Impedance 50 Ω
Velocity of Propagation 0.66
Max Operating Voltage(KVMS) 3.7
Operating Temp Range (PVC) -25 ℃ to 70℃
RoHS YES
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
100 6.60
400 14.10
1000 24.00
3000 46.60
5000 64.60
11000 110.90
Order Informations:
Marking ZION RG214 COAXIAL CABLE xxx M
Inner Package 100M or 300M/Wooden Spool
Outer Package Carton, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
More informations please contact with us.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and ZION.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime deliver

RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
