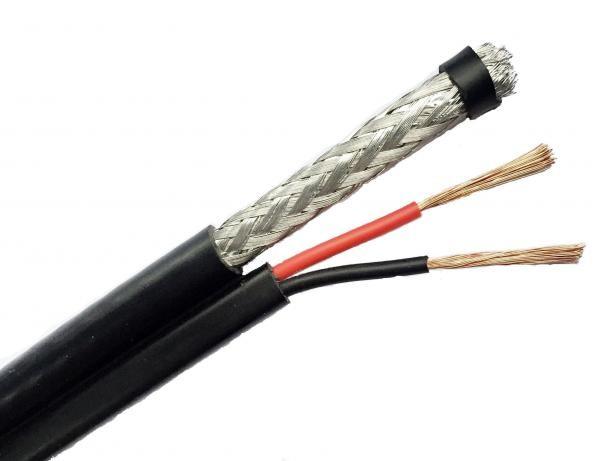

Composite RG6/U Coaxial Cable 95% Coverage with Power Feed Wire for HD Camera
Composite RG6/U Coaxial Cable 95% Coverage with Power Feed Wire for HD Camera
Composite RG6/U Coaxial Cable 95% Coverage with Power Feed Wire for HD Camera
Composite RG6/U Coaxial Cable 95% Coverage with Power Feed Wire for HD Camera
Specifications
Place of Origin :
CHINA
Brand Name :
ZION OR OEM
Certification :
ISO, CE, RoHS, UL
Model Number :
RG6/U CCTV COAXIAL CABLE
MOQ :
30 KM
Packaging Details :
100M/Roll, 500M/Wooden Spool, Carton
Delivery Time :
Normally 25 Days
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Conductor :
Copper Clad Steel
Insulation :
High Quality PVC in Red & Black
Shield 1 :
Bonded AL-Foil
Shield 2 :
Aluminum Wire Braid
Jacket :
High Quality PVC
Power Wire :
Copper Clad Aluminum
Color :
Black
Package :
100M/Roll or 500M/Wooden Spool
Description
Composite RG6/U Coaxial Cable 95% Coverage with Power Feed Wire for HD Camera
  • RG6/U CCTV Coaxial Cable
  • High Destiny Shielding Cable
  • 18AWG CCS Conductor
  • Foamed PE Insulation
  • 95% Aluminum Wire Braiding
  • High Quality PVC Jacket
  • Copper Clad Aluminum Power Wire
  • 100M/Roll, 500M/Wooden Spool, Carton
  • CCTV CATV MATV Installation
  • Telecom Interconnect

1.: CCTV RG6/U Coaxial Cable

RG6 CCS Conductor+0.50mm2 CCA Power Wire
Conductor: 1.02mm Copper Clad Steel (21%)
Dielectric: 4.70mm Foam PE
Shield: 24x7x0.12mm(168) Aluminum Braiding (95%)
Jacket: 6.90mm High Quality PVC (Color by your choise)
Power Wire Conductor: 41×0.12mm Copper Clad Aluminum
Power wire Insulation: 2.00mm PVC (Red & Black) * 1 Pair of wire twisted
Jacket: 5.50mm High Quality PVC (Color by your choise)

2.: CCTV RG6/U Coaxial Cable

RG6 CCS Conductor+1.00mm2 CCA Power Wire
Conductor: 1.02mm Copper Clad Steel (21%)
Dielectric: 4.70mm Foam PE
Shield: 24x7x0.12mm Aluminum Braiding(95%)
Jacket: 6.90mm High Quality PVC (Color by your choise)
Power Wire Conductor: 14×0.30mm Copper Clad Aluminum
Power wire Insulation: 2.00mm PVC (Red & Black) * 1 Pair of wire twisted
Jacket: 5.50mm High Quality PVC (Color by your choise)
  • Electrical Characteristics:
  • Capacitance 67 pF/m
  • Impedance 75 Ω
  • Velocity of Propagation 0.66
  • Sparker Test (VAC) 4
  • Operating Temp Range (PVC) -25 ℃ to 70℃
  • RoHS YES
  1. Order Informations:
  • Marking: ZION RG6/U CCTV COAXIAL CABLE XXX M (or Per customer's request)

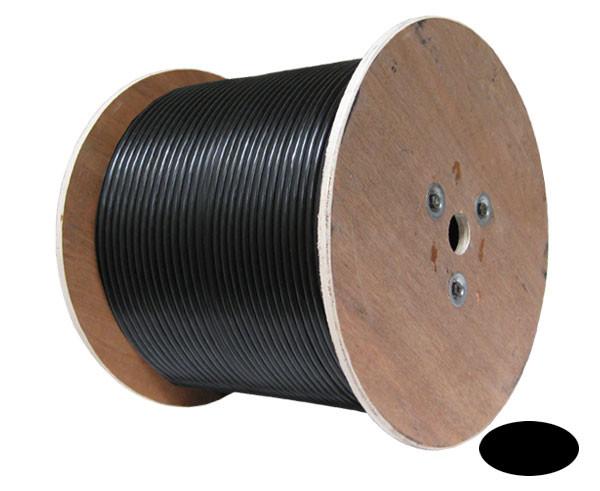

  • Inner Package: 100M/Roll, 500M/Wooden Spool
  • Outer Package: Carton, Pallet (or Per customer's request)
  • Delivery time: Normally 25 days after received the deposit.
Composite RG6/U Coaxial Cable 95% Coverage with Power Feed Wire for HD Camera
Composite RG6/U Coaxial Cable 95% Coverage with Power Feed Wire for HD Camera
