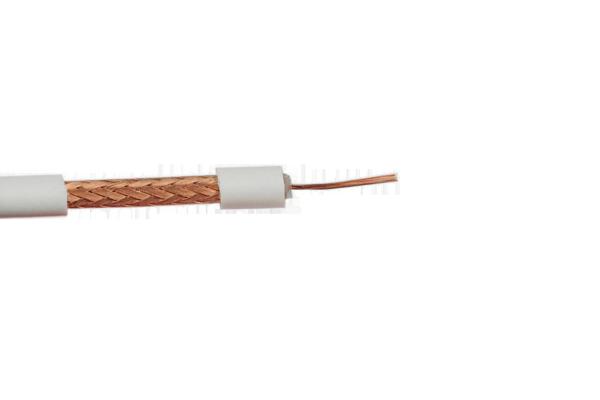

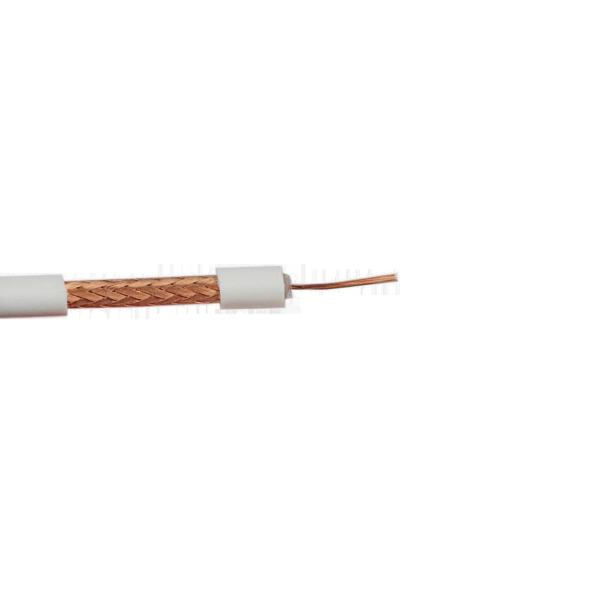

RG59 Micro CCTV Coaxial Cable Stranded Copper Conductor with 95% CCA Braiding
RG59 Micro CCTV Coaxial Cable Stranded Copper Conductor with 95% CCA Braiding
RG59 Micro CCTV Coaxial Cable Stranded Copper Conductor with 95% CCA Braiding
RG59 Micro CCTV Coaxial Cable Stranded Copper Conductor with 95% CCA Braiding
Specifications
Place of Origin :
CHINA
Brand Name :
ZION OR OEM
Certification :
ISO, UL, CE, RoHS
Model Number :
RG59 Micro CCTV Coaxial Cable
MOQ :
30 KM
Packaging Details :
500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time :
Normally 25 days
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Conductor :
Stranded Bare Copper
Insulation :
Solid PE
Shield :
CCA Braiding
Jacket :
High Quality PVC
Color :
Black, White
Package :
500FT, 1000FT, Plastic / Wooden Spool, Carton
Description

RG59 Micro CCTV Coaxial Cable Stranded Copper Conductor with 95% CCA Braiding

Quick Detail:

  • RG59 Micro CCTV Coaxial Cable
  • Stranded BC Conductor
  • 95% CCA Braiding
  • Solid PE Insulation
  • 75 Ohms CCTV Cable
  • PVC, RoHS Compliant
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton
  • MOQ: 30 KM

Description:

RG59 Micro CCTV Coaxial Cable Stranded BC Solid PE 95% CCA Braiding PVC Jacket

RG59 Micro is a specific type of CCTV coaxial cable , RG59 Micro (Produced by ZION) is perfect

for any type of surveillance camera installation. RG59 Micro has a characteristic impedance of 75 ohms.

ZION using best raw material and best worker to produce RG59 Micro to meet high performance in

practical application. RG59 Micro is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

ZION’S price of RG59 Micro is not high although our quality is really high.

Applications:

Suitable for Signal Transmission

■ CCTV

■ Local Area Network

■ Digital Video

■ Monitor / VDT Display

■ Security Camera

Specifications:

RG59 Micro CCTV Coaxial Cable Stranded Bare Copper Solid PE 95% CCA Braiding
Construction Parameters:
Inner Conductor 7×0.0071"/7×0.18mm/7×33AWG Bare Copper
Dielectric 0.087"/2.2±0.05mm Solid PE
Shield Nom. 0.106"/2.7mm Braiding
Strand 0.12mm/34AWG Copper Clad Aluminum
% Coverage 95 nom.
Jacket 0.160"/4.05±0.1mm PVC (Color by your choise)
Application For Use in High Density Cameras Shorter CCTV
Limited Length Typical run length up to 375 feet
Electrical Characteristics:
Capacitance 52±2 pF/m
Impedance 75±3 Ω
Inner Conductor Resistance 20.74 Ohms/KM at 20℃
Return loss between 5 and 1000MHz > 17dB
Velocity of Propagation 0.66
Sparker Test (VAC) 3
Operating Temp Range (PVC) -20 ℃ to 65℃
RoHS YES
Attenuation(20℃):
Frequency
(MHZ)		 Max Attenuation
(dB/100ft)		 Max Attenuation
(dB/100m)
5 1.43 4.30
50 5.08 15.23
100 7.26 21.77
200 10.44 31.33
550 18.04 54.12
750 20.14 60.43
865 22.37 67.11
1000 25.90 77.69
Order Informations:
Marking

ZION RG59 Micro CCTV Cable Stranded BC SPE 95% CCA

COAXIAL CABLE XXXXXX FT/M
Package 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery time Normally 25 days after received the deposit.
More informations please contact with us.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
