GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable
GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable
GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable
GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable
GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable
GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable
Specifications
Place of Origin :
CHINA
Brand Name :
ZIONE OR OEM
Certification :
CE, RoHS, VDE, UL
Model Number :
GYFTY Fiber Optic Cable
MOQ :
30 KM

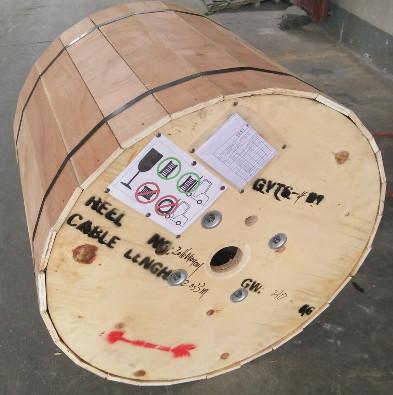

Packaging Details :
1000M, 2000M, 4000M, Wooden Drum
Delivery Time :
Normally 15 days
Payment Terms :
T/T, L/C
Supply Ability :
3000 KM / Month

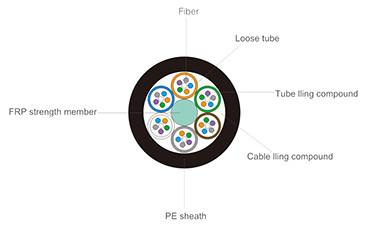

1st :
FRP Strength Member
2nd :
Optical Fiber
3rd :
Tube Filling Compound
4th :
Loose Tube
5th :
Cable Filling Compound
6th :
PE Sheath
Color :
Black
Package :
1000M, 2000M, 4000M, Wooden Drum
Description

GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable

Quick Detail:

  • Fiber Optic Cable
  • GYFTY Stranded Loose Tube Cable
  • G.652D or G.657A
  • Singlemode or Multimode
  • Cable Diameter: 2~36 Core: 10.60 mm
  • Tensile Strength Long/Short Term: 400 / 1000 N
  • Crush Resistance Long/Short Term: 300 / 1000 N / 100mm
  • Bending Radius Static/Dynamic: 10D / 20D
  • GYFTY Cable Complies with Standard YD/T 769-2003.

Description:

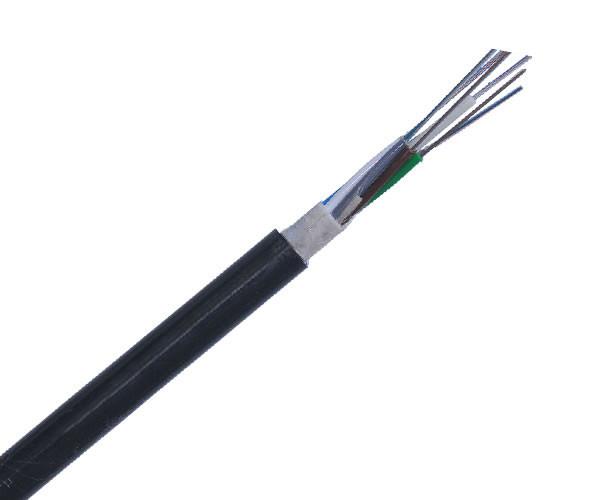

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

Applications:

  • Adopted to Outdoor distribution.
  • Suitable for aerial duct and buried method.
  • Long distance and local area network communication.

GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable
Description&Standards :

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes

are filled with a waterresistant filling compound. Over the tube. water blocking material is applied

to keep the cable watertight. Two parallel Fiber.Reinforced Plastics (FRP) are placed at the two side.

The cable is completed with a polyethylene(PE) sheath.
GYFTY cable complies with Standard YD/T 769-2003.
Characteristics:
Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Two parallel FRPs ensure tensile strength;
PE sheath protects cable from ultraviolet radiation;
Small diameter, light weight and friendly installation;
Long delivery length.
Technical Parameters:
Cable Type Cable Diameter
(mm)		 Cable Weight
(kg/km)		 Tensile Strength
Long/Short Term
(N)		 Crush Resistance
Long/Short Term
(N/100mm)		 Bending Radius
Static/Dynamic
(mm)
GYFTY 2~6 Core 10.60 88.0 400/1000 300/1000 10D/20D
GYFTY 8~12 Core 10.60 88.0 400/1000 300/1000 10D/20D
GYFTY 14~18 Core 10.60 88.0 400/1000 300/1000 10D/20D
GYFTY 20~24 Core 10.60 88.0 400/1000 300/1000 10D/20D
GYFTY 26~30 Core 10.60 88.0 400/1000 300/1000 10D/20D
GYFTY 32~36 Core 10.60 88.0 400/1000 300/1000 10D/20D
Optical fiber Characteristics:
G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)		 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36
dB/km		 ≤0.40
dB/km
@1550nm ≤0.22
dB/km		 ≤0.23
dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015 NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Storage/Operating Temperature : -40℃ to + 70℃
Order Informations:
Marking ZION KT3002 GYFTY XXX M/FT (or Per customer's request)
Package 1000M,2000M,4000M,Wooden Drum (or Per customer's request)
Delivery time Normally 15 days after received the deposit.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A,Incoming material inspected by QC.

B,Manufacturing Process Control

A: Manufacturing procedure

B: Workers trained daily/weekly/monthly

C: Work instructions manual at each work station

D:5S system implemented

E: Machine maintenance procedure

C, Quality Control and Final Inspection

The QC staff will check the material, process product and final product according to the specification or test procedure.

2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and ZION.

3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery

GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable
