Specifications
Place of Origin :
CHINA
Brand Name :
ZION OR OEM
Certification :
CE, RoHS, VDE, UL
Model Number :
Audio Speaker Cable 12 AWG 4 Core
MOQ :
30 KM
Packaging Details :
305M, 1000FT, Pull Box, Pallet
Delivery Time :
Normally 20 days
Payment Terms :
T/T, L/C
Supply Ability :
3000 KM / Month
Conductor :
Stranded OFC
Insulation :
CM Rated PVC
Ripcord :
Cotton Wire
Jacket :
CM Rated PVC
Color :
Blue, Yellow, Purple
Package :
305M, 1000FT, Pull Box, Pallet
Description

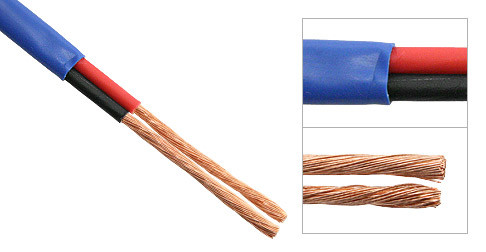

CM CL2 Audio Speaker Cable 12 AWG 4C OFC Conductor with Ultimate Sound Quality

Quick Detail:

  • Audio Speaker Cable
  • Monitor Audio Cable
  • 12 AWG ( 19 × 25 AWG) Conductor
  • 4 Core Stranded OFC Conductor
  • Oxygen Free Copper Conductor
  • UL CM Rated PVC Insulation
  • UL CM Rated PVC Jacket
  • 305M, 1000FT, Pull Box, Pallet

Description:

Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers.

Modern speaker wire consists of two or more electrical conductors individually insulated by plastic

(such as PVC, PE or Teflon) or, less commonly, rubber. The two wires are electrically identical,

but are marked to identify the correct audio signal polarity. Most commonly, speaker wire

comes in the form of zip cord.



The effect of speaker wire upon the signal it carries has been a much-debated topic in the

audiophile and high fidelity worlds. The accuracy of many advertising claims on these points

has been disputed by expert engineers who emphasize that simple electrical resistance is

by far the most important characteristic of speaker wire.

ZION using best raw material and best worker to produce Speaker wire to meet high

performance in practical application.Because of good managing methods, ZION’S

price of Speaker wire is not high although our quality is really high.

CM CL2 Audio Speaker Cable 12 AWG 4C OFC Conductor with Ultimate Sound Quality
Construction Parameters:
Conductor Stranded 12AWG (19×25) Oxygen Free Copper
No. of Conductor 4
Nom. Insulation Thickness 0.010"/0.25mm PVC CM
Nom. Jacket Thickness 0.017"/0.43mm PVC CM
Overall Cable Diameter 0.320"/8.13mm PVC CM
Approximate Cable Weight 69 Lbs/1000ft
Flame Rating UL 1666 Riser Flame Test
Electrical Characteristics:
Nom. D.C. R. Resistance @ 20°: 2.7 ohms per 1000ft
Temperature Rating -20° C to 60° C
Operating Voltage 150 V RMS Max
Capacitance Between
Conductors@1KHz
31 pF/ft Nom.
Insulation Colors Black, Red, White, Green
Jacket Colors Grey, Black, Brown, White
RoHS YES
Order Informations:
Marking

ZION KT1607 AUDIO CABLE 12AWG 4C

Stranded OFC PVC CM (UL) XXX M/FT

Package 305M, 1000FT, Pull Box, Pallet
Delivery time Normally 20 days after received the deposit.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and ZION.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery

CM CL2 Audio Speaker Cable 12 AWG 4C OFC Conductor with Ultimate Sound Quality
