Specifications
Brand Name :
CDS SOLAR
Model Number :
PS100kW-875kWh
Place of Origin :
Liaoning, China
Price :
$284,798.71/Sets >=1 Sets
Supply Ability :
100 Set/Sets per Month
Description

cheap price solar generator system 100kw-350kw for power station

100kw 350kw Residential Solar Battery Solar Power Backup System For Power Station Iso9001

Product Descriptions

100kW-875kWh Energy Storage System

Model No.

PS100kW-875kWh

Lithium Battery

Model No.

PS100KW-350KWh

Battery Capacity

875 kWh

Battery Type

Lithium Iron Phosphate Battery

Battery Warranty

5000 cycle times or 5 Years (DOD90% & 25)

AC Input (Charging)

AC Input Voltage

400 / 480 VAC

Power Factor

-1~+1

AC Input Frequency

50Hz / 60Hz ± 2.5Hz

Max Charge Power

100 kW

Max Efficiency

98.2%

AC Output (Discharging)

Rated AC Output Power

100kW

AC Output Voltage

400 / 480 VAC

AC Output Frequency

50 / 60Hz ± 2.5Hz

Max Efficiency

98.2%

PV Input (Optional)

Max PV Input Power

110kWp

MPPT Input Voltage Range

450~850 VDC

MPPT Number

1 / 2

MPPT Efficiency

99.50%

Max Efficiency

99.01%

Unique Function

Grid-Level Function

Peak shaving and valley filling for electric network

Operational Mode

Off-Grid Mode / On-Grid Mode / On & Off grid Mode (Optional)

UPS Function

YES

Black Start Function

YES

Communication Mode

Modbus TCP/IP

Communication Interface

LAN, RS485, CAN

General

Working Condition

Temperature range -20~50, Humidity range 0~95%

Noise and Altitude

70dB, <3000m

Size of PS100kW-875kWh

20 foot container

Weight of PS100kW-875kWh

15 tons

Certification

CE, TUV, IEC, UL, ETL

Email : cmo@cds-solar. com Whatsapp : +86 18340803630 Facebook : Cds solar

100kw 350kw Residential Solar Battery Solar Power Backup System For Power Station Iso9001

Power Station supports multiple battery technologies and configurations for maximum application and supply chain flexibility. The modular, pre-engineered design simplifies project development and enables repeatable deployment for maximum project velocity.

100kw 350kw Residential Solar Battery Solar Power Backup System For Power Station Iso9001

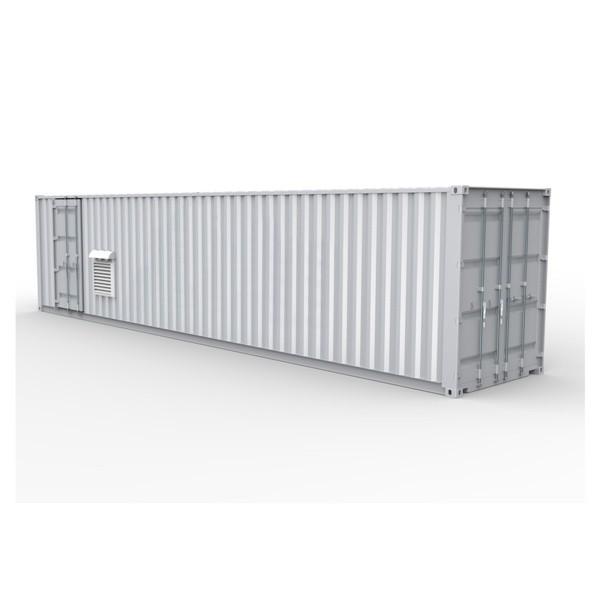

PowerStation provides a flexible, pre-engineered energy storage solution consisting of a standard ISO container with integrated electrical, mechanical, and thermal management features. Using advanced, patent-pending technologies to ensure safe operation and optimized performance, the container delivers a standardized system infrastructure for customer-supplied Tier 1 lithium-ion batteries.
