25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate
25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate
25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate
25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate
25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate
25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate
Specifications
Brand Name :
OASIS or OEM
Model Number :
Polycarbonate sheet
Certification :
ISO9001
Place of Origin :
Zhejiang, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000 Sqm/Month
Delivery Time :
15 days after receiving deposit
Packaging Details :
PE film
Product name :
Polycarbonate Roofing Sheets
Color :
Customized
Layer :
Two Layer
Suitable Temperature :
-40℃ — +120℃
Feature :
Eco Friendly
Structure :
R-Structure
Description

Multiwall Polycarbonate sheets for truck aerodynamic barrier white PC sheet, Multiwall Polycarbonate Sheets Construction Material Eco Friendly​.

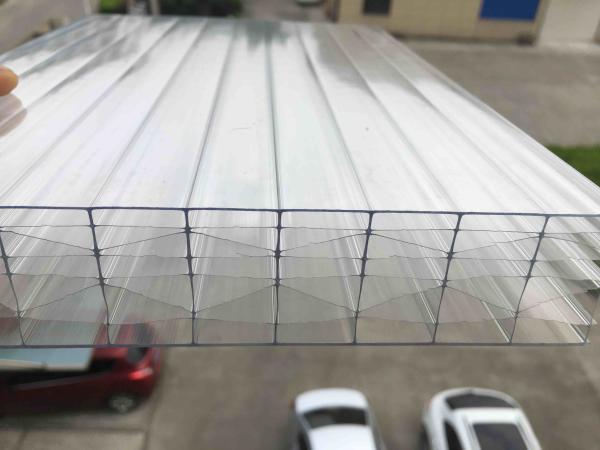

we are using 100% virgin imported material, front side is with 50um thickness of anti-UV layer, and we will give our client with 10 years quality guarantee. As for this 25mm thickness polycarbonate hollow sheets with 5-wall X-structure, diagonal supports are added on the basis of the rectangular section, so it improves the stiffness and the pressure-bearing performance of the sheets,meanwhile it plays a positive role in the lateral stability of the panel. So the characteristics of this kinds sheets are not only light weight and thermal insulation, but also with excellent impact strength.

Structure X-Diamond 5-wall
Thickness 25mm
Weight 3.6kg/m2
Max Width 2100mm
Length could be as ordered
Light Transmission (Clear) 50%
U-value 1.51 W/㎡·K
Temperature Range -50℃ ~ +120 ℃
Tensile Strength 62 Mpa
Linear thermal expansion 10-3 /℃
Elongation at break >80%
Linear thermal Expansion 0.065mm/m℃

Detail size of PC sheets for aerodynamic barrier of trucks:

25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate

25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate

25mm multi wall polycarbonate sheets for trucks aerodynamic barrier high impact polycarbonate
