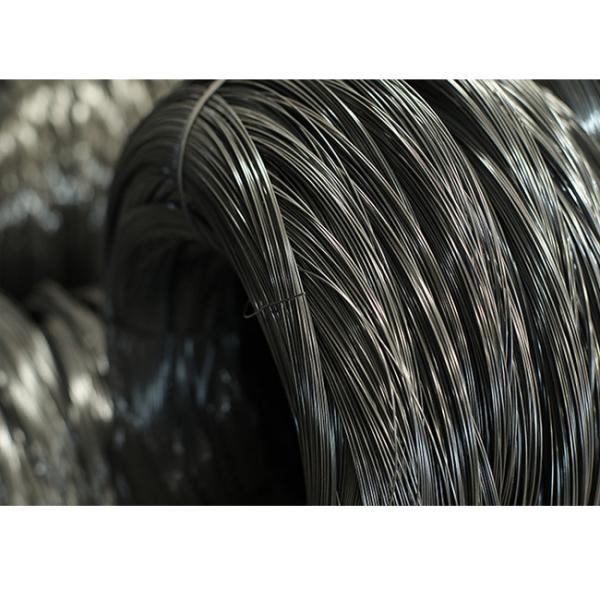

1.6MM BWG16 Black Soft Annealed Iron Wire Low CS Binding Wire
1.6MM BWG16 Black Soft Annealed Iron Wire Low CS Binding Wire
1.6MM BWG16 Black Soft Annealed Iron Wire Low CS Binding Wire
1.6MM BWG16 Black Soft Annealed Iron Wire Low CS Binding Wire
Specifications
Brand Name :
AGU
Model Number :
16GA
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
20 Tons
Price :
USD500-1000 Per Ton
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000 Tons per week
Delivery Time :
2-3 weeks
Packaging Details :
Coil
Thickness :
1.6mm
Coil Weight :
25Kgs
Material :
Low Carbon Steel Wire
Grade :
Q195/Q235
Feature :
Soft Annealed
Surface treatment :
oiled or not oiled
Function :
black annealed wire for binding
Application :
Construction
Description

BWG16 1.6MM Black Annealed Low Carbon Steel Iron Binding Wire

1.6MM BWG16 Black Soft Annealed Iron Wire Low CS Binding Wire

Binding Wires are made from low carbon steel wire Q195/SAE1006/SAE1008.
Binding wire, low-carbon, hot rolled steel, pickled and annealed, complying with the following specifications:
Yield strength: 195-235Mpa

Tensile strength: 295-540 Mpa or 350-680 N/MM2 ( typical 412 N/mm2)

Minimum elongation: 26%

Diameter tolerance: ± 0.3 mm

Surface: Anti-corrosion oiled treatment.
Wire size: From 5mm to 0.15mm, from 5.5 to 8 mm.

Black Annealed Binding Wire Gauge Comparison (SWG and BWG):

Wire Gauge SWG(mm) BWG(mm) Wire Gauge SWG(mm) BWG(mm)
6 4.877 5.156 20 0.914 0.889
7 4.47 4.572 21 0.813 0.813
8 4.064 4.191 22 0.711 0.711
9 3.658 3.759 23 0.61 0.635
10 3.251 3.404 24 0.559 0.559
11 2.946 3.048 25 0.508 0.508
12 2.642 2.796 26 0.475 0.475
13 2.337 2.413 27 0.417 0.406
14 2.032 2.108 28 0.376 0.356
15 1.829 1.829 29 0.345 0.33
16 1.626 1.651 30 0.315 0.305
17 1.422 1.473 31 0.295 0.254
18 1.219 1.245 32 0.274 0.229
19 1.016 1.067 33 0.254 0.203

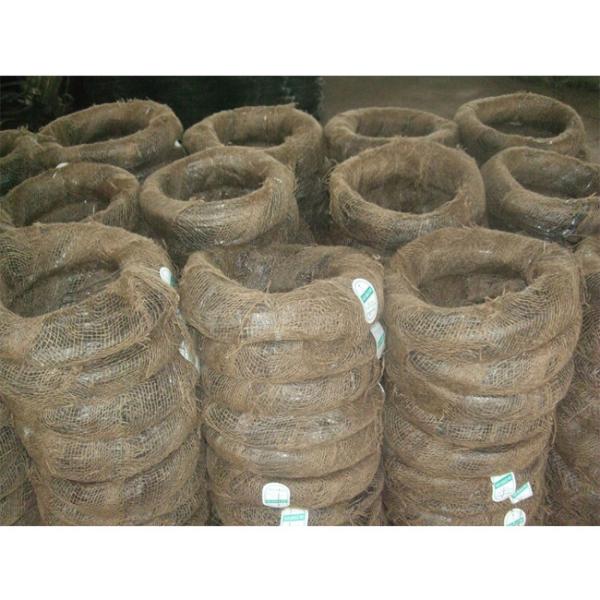

Binding Wire Common Packages options

Weight of coil/roll: 200kg, 100kg, 50kg, 25kg, 10kg, 2-8kg.
Packaging: Plastic film inside, Hessian or woven bag outside or as requirements.

1.Coil wire: plastic inside,nylon cloth outside or hessian cloth outside.
Weigth:1-800kg/coil,also wooden pallet can be arranged.

2. Spool wire: using plastic spool, then plastic outside,finally in paper carton.
Weight: 5-500kg/spool,also wooden pallet can be arranged.

3. Special pakage: 5-20kg/coil, 5-20coils/bunch
Plastic outside,also can be hessian cloth outside or fiber container.

1.6MM BWG16 Black Soft Annealed Iron Wire Low CS Binding Wire1.6MM BWG16 Black Soft Annealed Iron Wire Low CS Binding Wire
