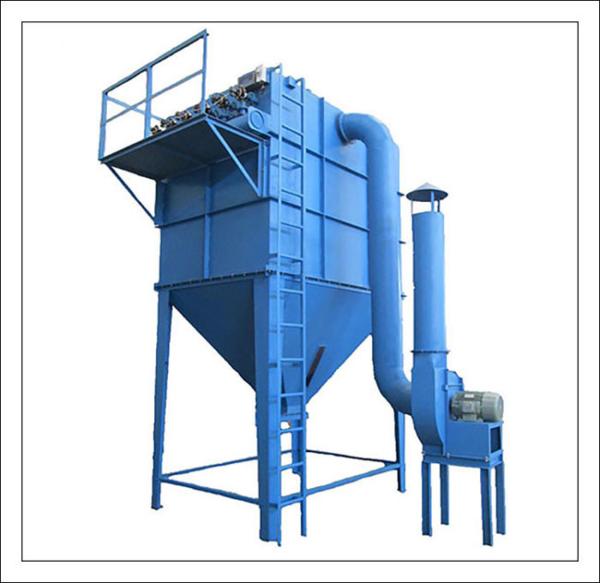

Reverse Air 4 Chamber 8930m3 H Bag Filter Dust Collector
Reverse Air 4 Chamber 8930m3 H Bag Filter Dust Collector
Reverse Air 4 Chamber 8930m3 H Bag Filter Dust Collector
Reverse Air 4 Chamber 8930m3 H Bag Filter Dust Collector
Reverse Air 4 Chamber 8930m3 H Bag Filter Dust Collector
Reverse Air 4 Chamber 8930m3 H Bag Filter Dust Collector
Specifications
Brand Name :
Sooannas
Model Number :
SAFD32-4
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
CN¥190,918.00-CN¥340,925.00
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
3 months after deposit
Packaging Details :
Standard containers loading, nude packing for filter body, thin film packing for main parts, carton packing for filter bags, accessories etc.
Supply Ability :
280 Set/Sets per Year
Dust out: :
<10 mg/Nm3
Feature :
Critical cleaning / Residue free
Warranty :
12 months
Cleaning type :
Clean-In-Place (CIP)
Voltage :
According to client's country voltage
Dust collector type: :
Baghouse dust collector
Condition :
New
Dimension(L*W*H) :
Design
Weight: :
Customized
After-sales Service :
Field installation, commissioning and training
Dust cleaning way :
Reverse air
Description

Product Description

Bag Filter Systems Jet Pulse Filter Fabric Filter Dust Collector

Dust Collector/Baghouse Advantages:

  • Automated self-cleaning of filter bags
  • Designed to handle streams with granular particulates
  • Hoppers collect granules which can be valuable in some applications
  • Continuous operation possible
  • High filter rates
  • No internal moving part
  • High ROI due to collected product
  • Low maintenance requirements
  • Fast top removal of bags – working at the clean air side
  • Dependable solid-state timer controls
  • Weather proof – all welded construction

Technical Parameters for Dust Collector

Model SABF SABF SABF SABF SABF SABF SABF SABF SABF
32-3 32-4 32-5 32-6 64-4 64-5 64-6 64-7 64-8
Air volume(m³/h) 6690 8930 11160 13390 17800 22300 26700 31200 35700
Total filter area(m²) 93 124 155 186 248 310 372 434 496
Chamber(pcs) 3 4 5 6 4 5 6 7 8
Quantity of filter bag(pcs) 32 64
Total quantity filter bag(pcs) 96 128 160 192 256 320 384 448 512
Pulse Valve Quantity(pcs) 3 4 5 6 4 5 6 7 8
Specitication(inch) 1/½″ 2/½″

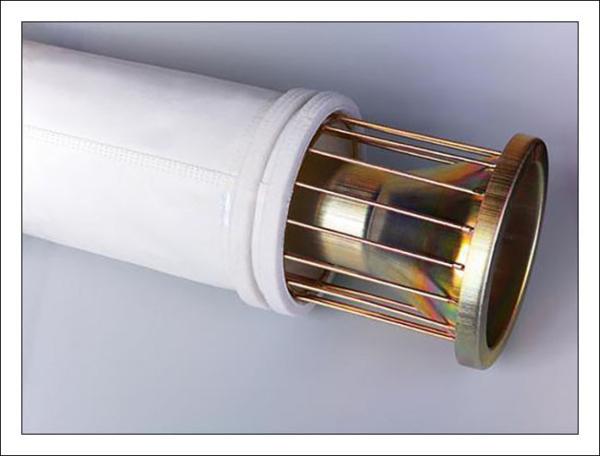

Specification of filter bag(D×Lmm) ∅130×2450
Filter material Based on flue gas properties
Filtration speed(m/min) 0.8~2.0(Adjustable)
Negative pressure(pa) ≤6000
Resistance(pa) 1470~1770
Inlet dust concentration(g/Nm³) <200 <1000
Blowing pressure(Mpa)
