High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval
High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval
High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval
High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval
High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval
High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Material :
Carbon Steel
Material Feature :
Heat Resistant
Dimension(L*W*H) :
As Customer's Request
Motor Type :
Adjustable speed motor
Suitable Material :
Cement, Coal, Chemical, Grain, Gravel, Sand
Application :
Manufacturing Plant, Farms, Construction works , Energy & Mining
Warranty :
2 Years
After-sales Service Provided :
Field installation, commissioning and training
Description

High-Efficiency Steel Belt Bucket Elevator Grain Rice Bucket Elevator

Product Description

TDG series bucket elevator is a new-generation product developed by our company through the combination of learning from new foreign technology and domestic production and using practice. It is suitable for the vertical hoisting of dry, bulk, powdery materials or materials of small granule. It is widely used in the hoisting system of bulk materials in building materials, metallurgy, chemical industry, food, electric power and other industries.

In terms of kiln feeding into kiln tail, raw material into the homogenization silo, and cement putting in storage in the new dry process cement plant, it is an ideal piece of alternative equipment for foreign products of the same specification.

High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval

Main Advantages

1. Large throughput, high lift height.

2. The temperature of transported material can reach 120℃.

3. Long service life, good operational reliability, and the failure-free time can exceed 30,000 hours.

4. The belt with steel wire rope core, has good toughness, high strength.

5. The operation and maintenance are convenient, and there are little vulnerable parts, and the maintenance costs are more than 80% less than that for the common bucket elevator.

6. The equipment adopts the heavy hammer tensioning device, which has constant tensioning force and can help avoid the belt slipping, thus ensuring the normal operation of the equipment.

Main Parameters

TDG200
Bucket type Sh Zh
Conveying capacity, m³/h 45 31
Bucket Volume, L 4.1 2.9
Distance, mm 300
Total weight of belt and bucket per meter length, kg/m 21.5
Bucket speed, m/s 1.2
Max. hoisting height, m 80

Sh: Deep bucket: Used for conveying dry, loose, easily thrown powder or small pieces of materials, such as cement, coal, gravel, grain, etc.

Zh: Medium-deep bucket: Used for conveying wet and viscous materials, such as sugar, wet fine sand, crushed coal, fertilizer, etc.

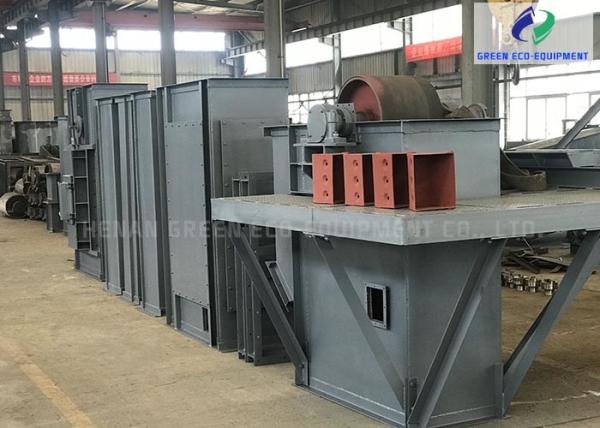

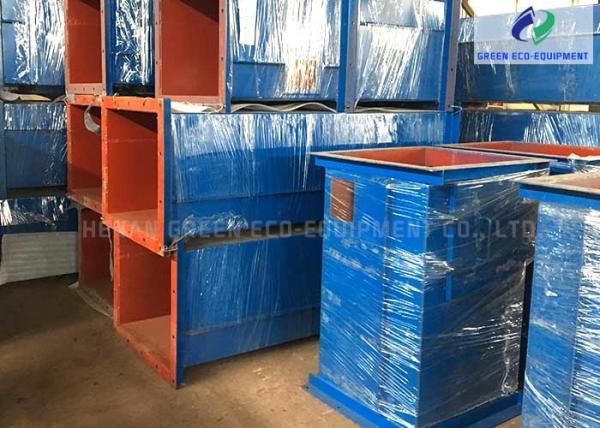

Details Show

High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval

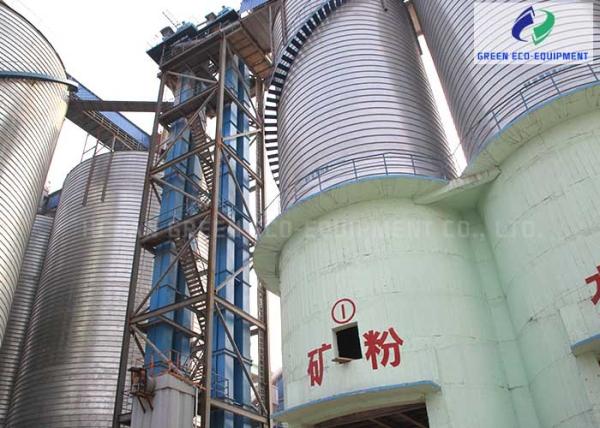

Project Case

High Efficiency Steel Bucket Elevator , Grain Bucket Elevator CE Approval
