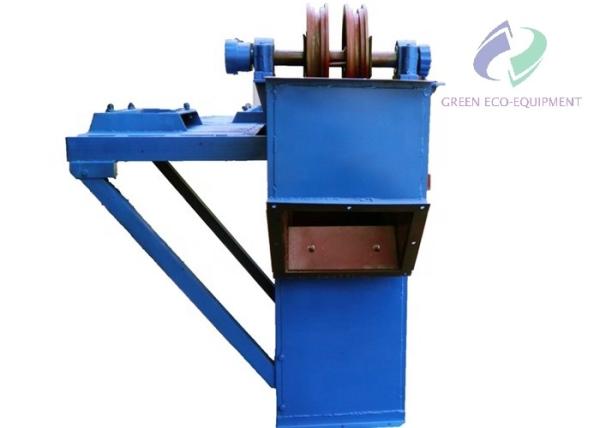

30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
Specifications
Brand Name :
Green
Model Number :
TH315
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
5000-40000 USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
25 Sets per Month
Delivery Time :
Within 25 days
Packaging Details :
Standard packing for Sea container
Belt type :
Round chain
Capacity :
30t/h
Bucket speed :
1.3m/s
Bucket width :
315
Bucket volume :
6L
Max height :
45
Power of motor :
11Kw
Brand of bearing :
SKF/HRC/FAG
Brand of gearbox :
SEW/ Flender
Voltage :
Based on local voltage
Heat-resisting :
250 degrees
Description

Wear Resisting Round Chain Type Bucket Elevator For Lime Stone Powder

Product description

TH type bucket elevator with ring chain is designed and manufactured according to JB3926-85 Chinese standard .

It is a kind of elevator which is used for vertically transporting bulk materials such as powder, pellet, particulate, even the materials with more surface friction, for example grain, coal, cement, granular ore, etc. It is widely used in cement industry, chemical industry, power plant, grain storage and other industries, etc. Our company manufactures a variety of bucket elevators tomeet your different demands.

30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder

Technical parameters

Model Capacity Bucket Round chain Max. feeding Size
width volume pitch speed
(m³) (mm) (L) (mm) (m/s) (mm) (mm)
TH160 8-12 160 1.2 320 1.25 ø8x30 18
TH200 13-22 200 2.1 400 1.25 ø12x40 25
TH250 16-28 250 3.0 500 1.4 ø18x50 32
TH315 21-36 315 4.0 500 1.4 ø18x50 45
TH400 36-56 400 5.9 600 1.4 ø18x50 55
TH500 45-70 500 9.3 688 1.5 ø22x86 75
TH630 68-110 630 14.6 920 1.5 ø22x86 85
TH800 87-140 800 23.3 920 1.5 ø26x92 100



Features

1.It is completely enclosed to prevent dust leakage and to protect it from the weather.

2. The lifting height is up to 40 meters.

3. The temperature of materials should not be higher than 250°C.

4. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.

5. The service life is long, and there are few extrusion and collision events.

6. The excellent design of the elevator can effectively prevent the chain from slipping and improve delivery efficiency.

Application

It is suitable for vertically conveying powdery, granular, and bulk materials, and can also lift materials with greater abrasive, such as fly ash, slag, limestone, raw cement, cement clinker, cement, coal, dry clay, etc. The temperature of the material to be lifted generally does not exceed 200 degrees, and the lifting height can be up to 40m.

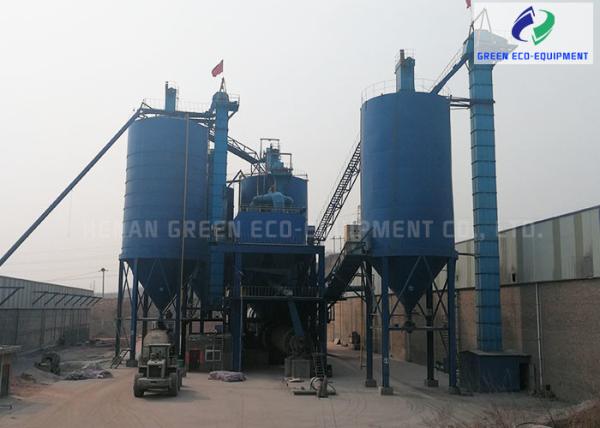

Project Case

30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder

Delivery

30t/H 1.3m/S 11Kw Chain Bucket Elevator For Lime Stone Powder
