High Efficiency Sand Screw Conveyor , Powder Screw Conveyor Heat Resistant
High Efficiency Sand Screw Conveyor , Powder Screw Conveyor Heat Resistant
High Efficiency Sand Screw Conveyor , Powder Screw Conveyor Heat Resistant
High Efficiency Sand Screw Conveyor , Powder Screw Conveyor Heat Resistant
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Material :
Carbon Steel/Stainless Steel
Voltage :
220V/380V/As cuntomer's request
Material Feature :
Heat Resistant
Structure :
Conveyor System
Dimension(L*W*H) :
As Customer's Request
Application :
Manufacturing Plant, Grain Storage, Energy & Mining
After-sales Service Provided :
Field installation, commissioning and training
Description

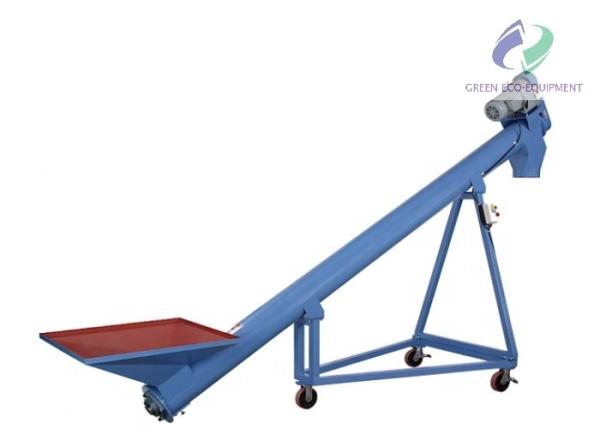

High-Efficiency Sand Screw Conveyor For Conveying Powder Material


Product Description

High-Efficiency Sand Screw Conveyor is widely used in many industries, such as building materials, chemical, coal, grain and oil, fodder, mining industries. It is suitable for horizontal or inclined conveyor powdery, granulous and small block material, such as grain, dinas, coal, flour, cement, chemical fertilizer and so on. It cant convey material which is easy to metamorphic, sticky, agglomeration; Using temperature of environment is -20~50℃,conveying material temperature is ≤200℃.

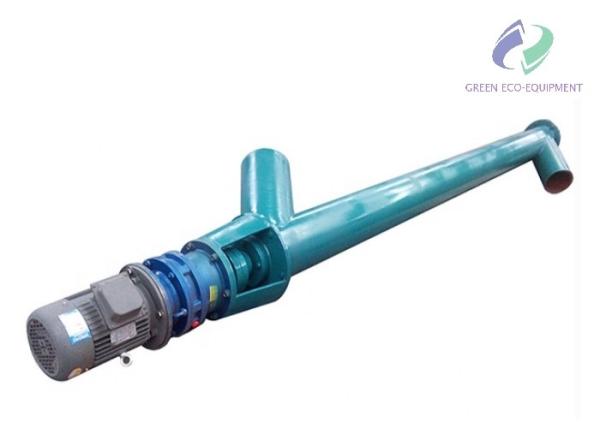

Industrial pipe screw conveyor is suitable for continuous conveying of loose materials such as powder, granular and small piece material , which includes clay powder, coal powder, cement, sand, grain, small piece of coal , pebbles, and cast iron filings, etc.

Main Parameters

Model Item

Screw diameter

(mm)

 Conveying distance(mm)

Screw speed

(r/min)

largest feed ability

(m³/h)

Motor power

(kw)

 Supporting reducer

Material max size

(mm)

Reference weight

(t)
SID1215 120 1500 20-80 1.4 1.1 ZQ250 20 0.65
SID1225 2500 0.87
SID1615 160 1500 15-75 4.8 1.5 ZQ250 25 0.78
SID1625 2500 1.03
SID2015 200 1500 15-60 7.4 2.2 ZQ250 30 0.92
SID2025 2500 1.23
SID3015 300 1500 10-45 21.2 3 ZQ250 40 1.10
SID3025 2500 1.38

Advantages

1. Compact structure, small cross section, light weight.

2. Excellent seal performance and transport efficiency.

3. Flexible technological arrangement, easy to be installed, dismantled and moved, and safe operation.

4. Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical.

5. Efficiently distributes bulk materials to various locations using multiple inlet and discharge points.

6. Totally enclosed for dusty, corrosive or hazardous environments.

Applicaiton

The screw conveyor is widely used for conveying powder, granule, and small block materials, such as: cement, sand, grain, gravel, chemical, fertilizer, coal, etc.

High Efficiency Sand Screw Conveyor , Powder Screw Conveyor Heat Resistant

Details Show

High Efficiency Sand Screw Conveyor , Powder Screw Conveyor Heat Resistant

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
High Efficiency Sand Screw Conveyor , Powder Screw Conveyor Heat Resistant
Field Usage

High Efficiency Sand Screw Conveyor , Powder Screw Conveyor Heat Resistant
